ATS-04E Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 30X30X30MM R-TAB

...

Part	Material Finish	Package Cooled	Fin Height [z]	Fin Height [z]	Shape	Type	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Attachment Method	Material	Length	Length	Width	Width	Length [x]	Length [x]	Fin Height	Fin Height	Width [y]	Width [y]	Fin Height [custom]	Fin Height [custom]	Length	Shape [custom]	Shape [custom]
Advanced Thermal Solutions Inc. ATS-04E-173-C1-R0	Blue Anodized	ASIC BGA CPU LGA	1.181 in	30 mm	Fins Square	Top Mount	30 mm	1.181 in	4.68 °C/W	Push Pin	Aluminum	0.03 m	1.181 in
Advanced Thermal Solutions Inc. ATS-04E-189-C3-R0	Blue Anodized	ASIC BGA CPU LGA	0.79 in	20 mm	Fins Square	Top Mount			4.82 °C/W	Push Pin	Aluminum			1.772 in	45 mm	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-04E-120-C1-R0	Blue Anodized	ASIC BGA CPU LGA			Fins Square	Top Mount			3.45 °C/W	Push Pin	Aluminum			1.772 in	45 mm	1.772 in	45 mm	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-04E-50-C1-R0	Blue Anodized	ASIC BGA CPU LGA	0.59 in	15 mm	Fins Square	Top Mount	30 mm	1.181 in	18.99 °C/W	Push Pin	Aluminum	0.03 m	1.181 in
Advanced Thermal Solutions Inc. ATS-04E-02-C1-R0	Blue Anodized	ASIC BGA CPU LGA			Fins Square	Top Mount				Push Pin	Aluminum							12.7 mm	0.5 "	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-04E-102-C3-R0	Blue Anodized	ASIC BGA CPU LGA			Fins Square	Top Mount			5.33 °C/W	Push Pin	Aluminum			1.772 in	45 mm	1.772 in	45 mm					1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-04E-100-C3-R0	Blue Anodized	ASIC BGA CPU LGA			Fins Square	Top Mount			8.79 °C/W	Push Pin	Aluminum			1.772 in	45 mm	1.772 in	45 mm	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-04E-77-C1-R0	Blue Anodized	ASIC BGA CPU LGA	1.181 in	30 mm	Fins Square	Top Mount	25 mm	0.984 "	9.24 °C/W	Push Pin	Aluminum	25 mm				0.984 in
Advanced Thermal Solutions Inc. ATS-04E-127-C3-R0	Blue Anodized	ASIC BGA CPU LGA	0.79 in	20 mm	Fins Square	Top Mount	54 mm	2.126 in	3.91 °C/W	Push Pin	Aluminum	54 mm	2.126 in

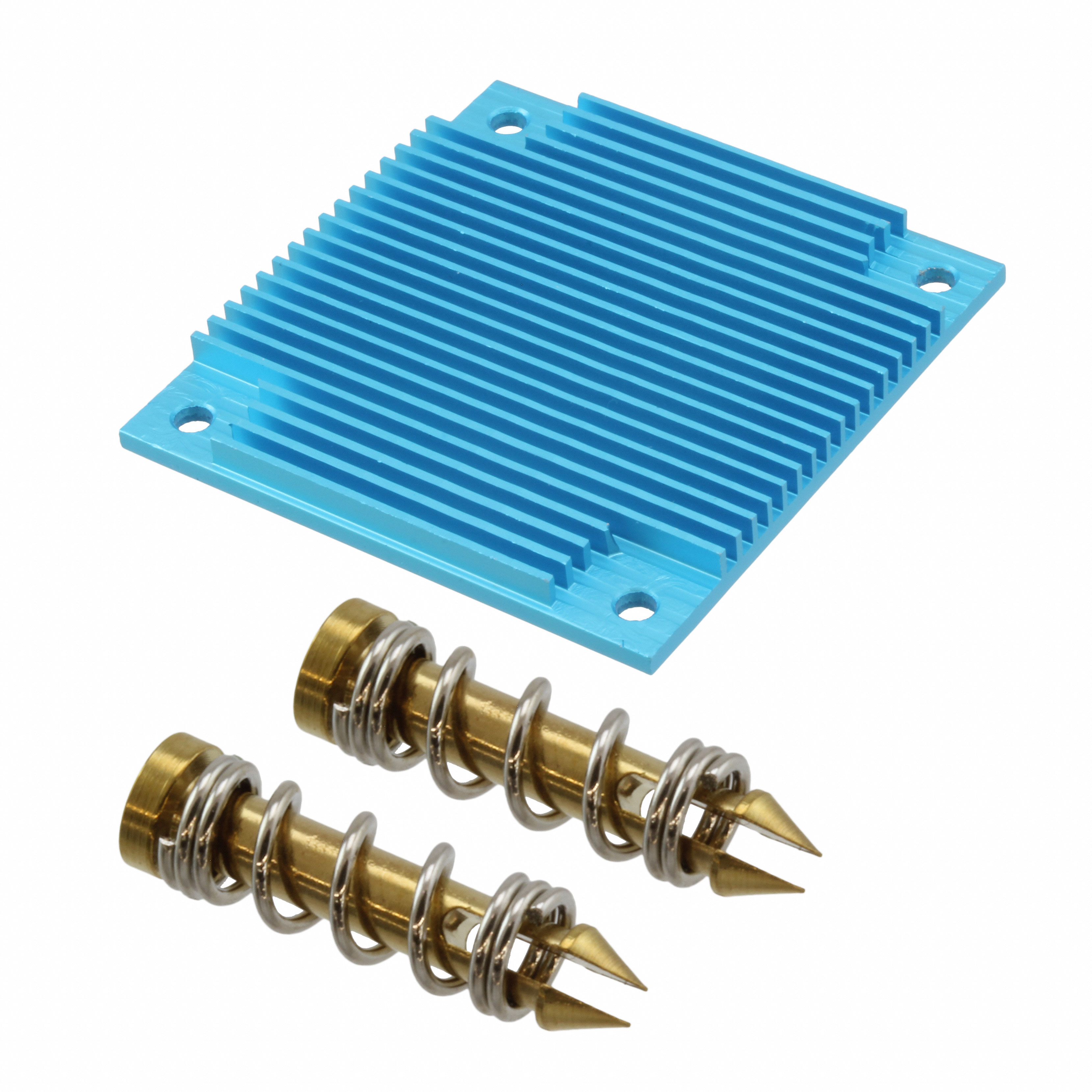

Advanced Thermal Solutions Inc. ATS-04E-39-C1-R0	Blue Anodized	ASIC BGA CPU LGA				Top Mount			18.93 °C/W	Push Pin	Aluminum	2.28 in						5.84 mm	0.23 in	2.4 "	60.96 mm			57.9 mm	Rectangular	Fins
