FPG.1B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Orientation [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Features	Backshell Material, Plating	Color	Number of Positions	Ingress Protection	Material Flammability Rating	Contact Finish - Mating	Fastening Type	Primary Material	Shielding	Shell Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insert Material	Current Rating (Amps)	Connector Type	Mounting Type	Contact Material	Shell Finish	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Termination	Cable Opening [Min]	Cable Opening [Max]	Shell Size - Insert [custom]
LEMO FPG.1B.304.CLAD52	G	-55 C	250 °C	304	Backshell	Brass Chrome	Silver	4	IP50 - Dust Protected	UL94 V-0	Gold	Push-Pull	Metal	Shielded	Brass	39.4 µin	1 µm	Polyetheretherketone (PEEK)	10 A	Plug Male Pins	Free Hanging (In-Line) Right Angle	Brass	Chrome	0.205 in	4.2 mm	5.2 mm	0.165 "
LEMO FPG.1B.306.CYCD42Z	G	-55 C	250 °C	306	Backshell	Brass Chrome	Silver	6	IP50 - Dust Protected	UL94 V-0	Gold	Push-Pull	Metal	Shielded	Brass	39.4 µin	1 µm	Polyetheretherketone (PEEK)	7 A	Plug Male Pins	Free Hanging (In-Line) Right Angle	Brass	Chrome	0.205 in	4.2 mm	5.2 mm	0.165 "	Crimp

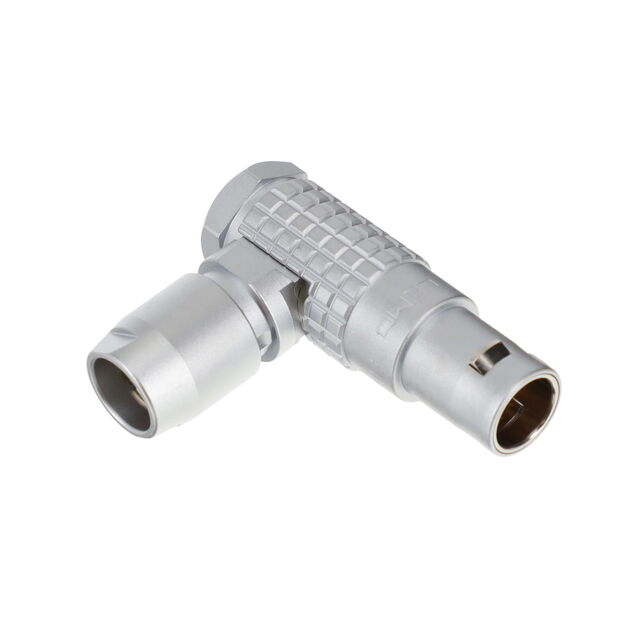

LEMO FPG.1B.306.CLAD76	G	-55 C	250 °C	306	Backshell	Brass Chrome	Silver	6	IP50 - Dust Protected	UL94 V-0	Gold	Push-Pull	Metal	Shielded	Brass	39.4 µin	1 µm	Polyetheretherketone (PEEK)	7 A	Plug Male Pins	Free Hanging (In-Line) Right Angle	Brass	Chrome	0.299 in	7.2 mm	7.6 mm	0.283 "
LEMO FPG.1B.307.CLAD76Z
LEMO FPG.1B.304.CYCD72	G	-55 C	250 °C	304	Backshell	Brass Chrome	Silver	4	IP50 - Dust Protected	UL94 V-0	Gold	Push-Pull	Metal	Shielded	Brass	39.4 µin	1 µm	Polyetheretherketone (PEEK)	10 A	Plug Male Pins	Free Hanging (In-Line) Right Angle	Brass	Chrome		6.2 mm	7.2 mm		Crimp	0.244 in	0.283 in

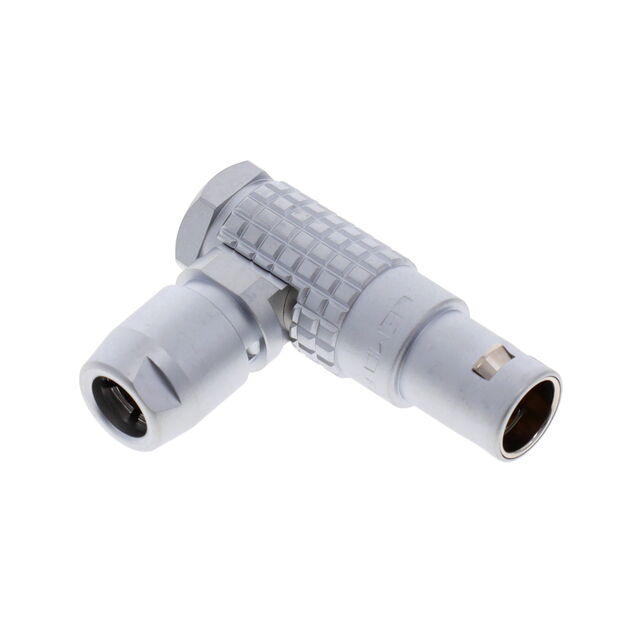

LEMO FPG.1B.307.CLAD62	G	-55 C	250 °C		Backshell	Brass Chrome	Silver	7	IP50 - Dust Protected	UL94 V-0	Gold	Push-Pull	Metal	Shielded	Brass	39.4 µin	1 µm	Polyetheretherketone (PEEK)	7 A	Plug Male Pins	Free Hanging (In-Line) Right Angle	Brass	Chrome	0.205 in	4.2 mm	5.2 mm	0.165 "				307
LEMO FPG.1B.302.CLAD52	G	-55 C	250 °C	302	Backshell	Brass Chrome	Silver	2	IP50 - Dust Protected	UL94 V-0	Gold	Push-Pull	Metal	Shielded	Brass	39.4 µin	1 µm	Polyetheretherketone (PEEK)	15 A	Plug Male Pins	Free Hanging (In-Line) Right Angle	Brass	Chrome	0.205 in	4.2 mm	5.2 mm	0.165 "
LEMO FPG.1B.310.CLAD62	G	-55 C	250 °C	310	Backshell	Brass Chrome	Silver	10	IP50 - Dust Protected	UL94 V-0	Gold	Push-Pull	Metal	Shielded	Brass	39.4 µin	1 µm	Polyetheretherketone (PEEK)	2.5 A	Plug Male Pins	Free Hanging (In-Line) Right Angle	Brass	Chrome	0.205 in	4.2 mm	5.2 mm	0.165 "
LEMO FPG.1B.302.CLAD42	G	-55 C	250 °C	302	Backshell	Brass Chrome	Silver	2	IP50 - Dust Protected	UL94 V-0	Gold	Push-Pull	Metal	Shielded	Brass	39.4 µin	1 µm	Polyetheretherketone (PEEK)	15 A	Plug Male Pins	Free Hanging (In-Line) Right Angle	Brass	Chrome	0.205 in	4.2 mm	5.2 mm	0.165 "
LEMO FPG.1B.314.CLAD62Z	G	-55 C	250 °C	314	Backshell	Brass Chrome	Silver	14	IP50 - Dust Protected	UL94 V-0	Gold	Push-Pull	Metal	Shielded	Brass	39.4 µin	1 µm	Polyetheretherketone (PEEK)	2 A	Plug Male Pins	Free Hanging (In-Line) Right Angle	Brass	Chrome	0.205 in	4.2 mm	5.2 mm	0.165 "
