OSTHD Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLOCK 23POS 5.08MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Housing Material | Contact Material - Plating | Mating Orientation | Wire Gauge [Min] | Wire Gauge [Max] | Color | Current | Features | Positions Per Level | Pitch | Pitch | Number of Levels | Mounting Type | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Thermoplastic | Brass - Tin Plated | Angled | 16 AWG | 22 AWG | Gray | 12 A | Lever Actuated | 23 | 5.08 mm | 0.2 in | 1 | Through Hole | Leg Spring Push-In Spring |

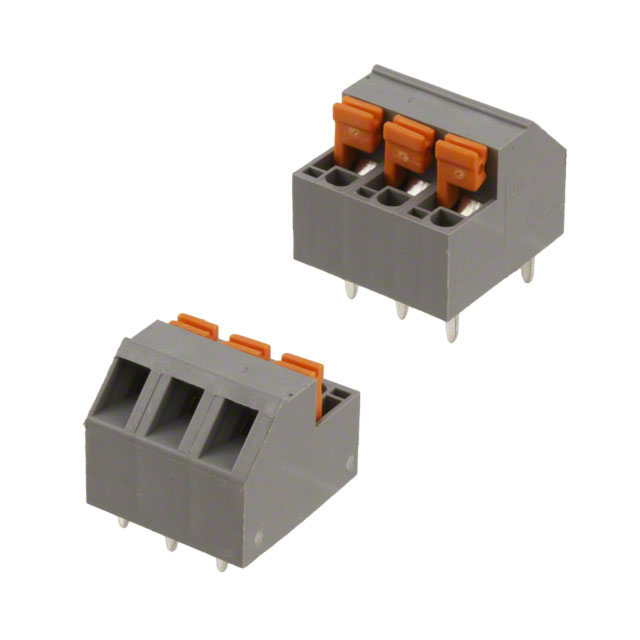

 On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Thermoplastic | Brass - Tin Plated | Angled | 16 AWG | 22 AWG | Gray | 12 A | Lever Actuated | 3 | 5.08 mm | 0.2 in | 1 | Through Hole | Leg Spring Push-In Spring |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Thermoplastic | Brass - Tin Plated | Angled | 16 AWG | 22 AWG | Gray | 12 A | Lever Actuated | 20 | 5.08 mm | 0.2 in | 1 | Through Hole | Leg Spring Push-In Spring |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Thermoplastic | Brass - Tin Plated | Angled | 16 AWG | 22 AWG | Gray | 12 A | Lever Actuated | 8 | 5.08 mm | 0.2 in | 1 | Through Hole | Leg Spring Push-In Spring |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Thermoplastic | Brass - Tin Plated | Angled | 16 AWG | 22 AWG | Gray | 12 A | Lever Actuated | 12 | 5.08 mm | 0.2 in | 1 | Through Hole | Leg Spring Push-In Spring |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Thermoplastic | Brass - Tin Plated | Angled | 16 AWG | 22 AWG | Gray | 12 A | Lever Actuated | 19 | 5.08 mm | 0.2 in | 1 | Through Hole | Leg Spring Push-In Spring |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Thermoplastic | Brass - Tin Plated | Angled | 16 AWG | 22 AWG | Gray | 12 A | Lever Actuated | 6 | 5.08 mm | 0.2 in | 1 | Through Hole | Leg Spring Push-In Spring |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Thermoplastic | Brass - Tin Plated | Angled | 16 AWG | 22 AWG | Gray | 12 A | Lever Actuated | 21 | 5.08 mm | 0.2 in | 1 | Through Hole | Leg Spring Push-In Spring |

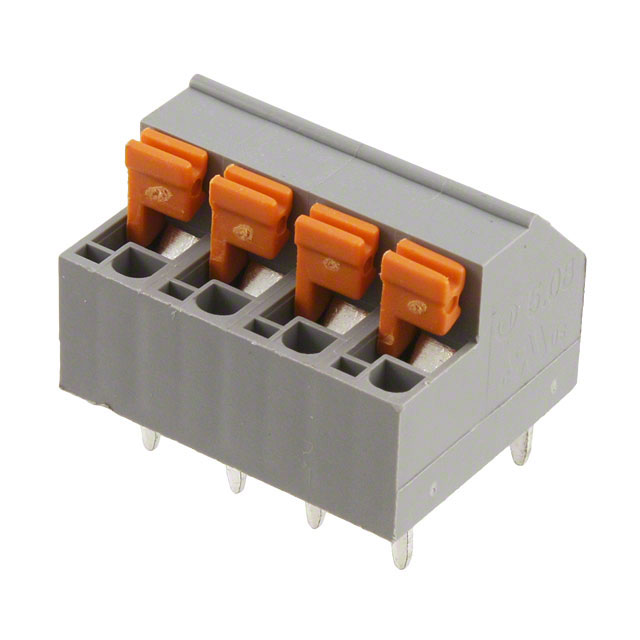

 On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Thermoplastic | Brass - Tin Plated | Angled | 16 AWG | 22 AWG | Gray | 12 A | Lever Actuated | 4 | 5.08 mm | 0.2 in | 1 | Through Hole | Leg Spring Push-In Spring |

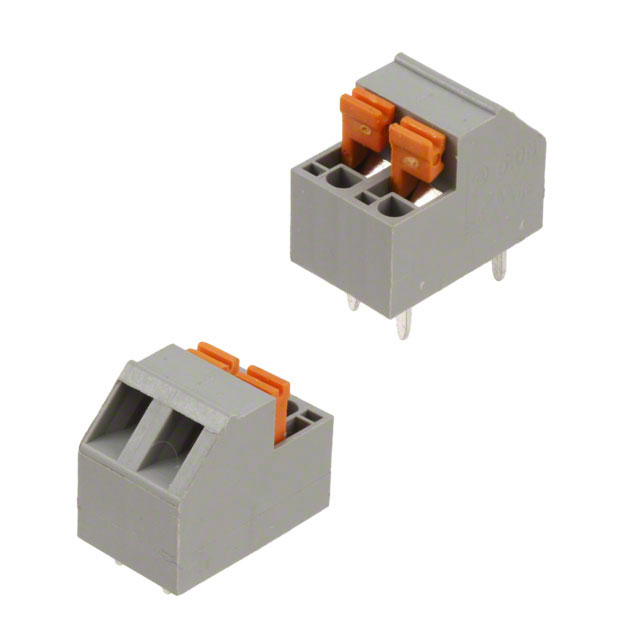

 On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Thermoplastic | Brass - Tin Plated | Angled | 16 AWG | 22 AWG | Gray | 12 A | Lever Actuated | 2 | 5.08 mm | 0.2 in | 1 | Through Hole | Leg Spring Push-In Spring |
