RL78/F1x Series
Microcontrollers with Low Consumption Current for Automotive Applications
Manufacturer: Renesas Electronics Corporation
Catalog
Microcontrollers with Low Consumption Current for Automotive Applications
...
| Part | Data Converters | Speed | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Program Memory Type | RAM Size | Peripherals | Program Memory Size | Core Processor | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Number of I/O | Mounting Type | Oscillator Type | Package / Case | EEPROM Size | Core Size | EEPROM Size | RAM Size | Qualification | Grade | Connectivity | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | |||||||||||||||||||||||||
 Renesas Electronics Corporation | A/D 21x10b SAR D/A 1x8b | 24 MHz | 2.7 V | 5.5 V | FLASH | 16 K | LVD POR PWM WDT | 192 KB | RL78 | 64-LFQFP (10x10) | -40 °C | 125 °C | 52 | Surface Mount | Internal | 64-LQFP | 8 K | 16-Bit | |||||||

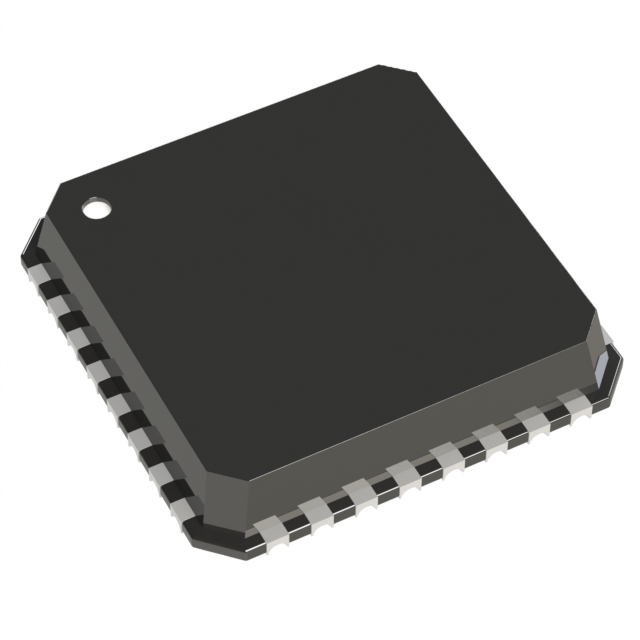

 Renesas Electronics Corporation | A/D 12x10b SAR | 32 MHz | 2.7 V | 5.5 V | FLASH | LVD POR PWM WDT | 64 KB | RL78 | 32-HVQFN (5x5) | -40 °C | 105 °C | 25 | Surface Mount | Internal | 32-VFQFN Exposed Pad | 16-Bit | 4K x 8 | 4K x 8 | |||||||

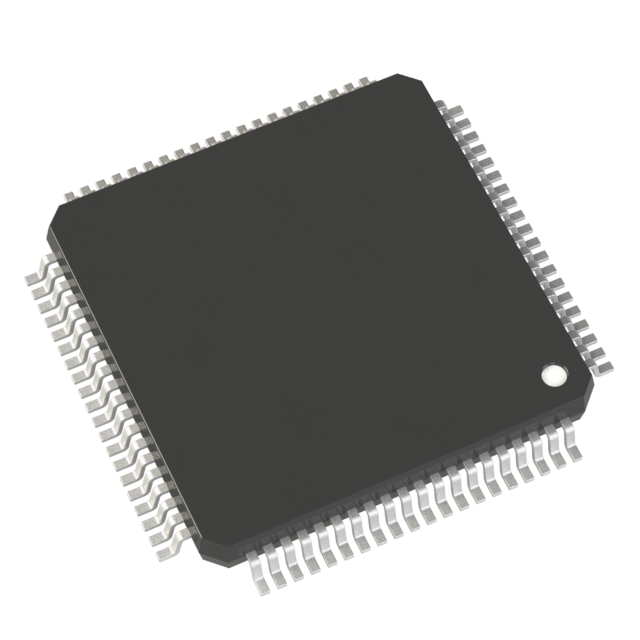

 Renesas Electronics Corporation | A/D 22x10b SAR D/A 1x8b | 32 MHz | 2.7 V | 5.5 V | FLASH | 20 K | LVD POR PWM WDT | 256 KB | RL78 | 80-LFQFP (12x12) | -40 °C | 105 °C | 68 I/O | Surface Mount | Internal | 80-LQFP | 8 K | 16-Bit | AEC-Q100 | Automotive | |||||
Renesas Electronics Corporation | A/D 21x10b SAR D/A 1x8b | 32 MHz | 2.7 V | 5.5 V | FLASH | 6 K | LVD POR PWM WDT | 64 KB | RL78 | 64-LFQFP (10x10) | -40 °C | 105 °C | 52 | Surface Mount | Internal | 64-LQFP | 16-Bit | 4K x 8 | |||||||
 Renesas Electronics Corporation | A/D 14x10b SAR | 32 MHz | 2.7 V | 5.5 V | FLASH | LVD POR PWM WDT | 48 KB | RL78 | 48-LFQFP (7x7) | -40 °C | 105 °C | Surface Mount | Internal | 48-LQFP | 16-Bit | 4K x 8 | CSI I2C LINbus SPI UART/USART | ||||||||
 Renesas Electronics Corporation | A/D 33x10b SAR D/A 1x8b | 32 MHz | 2.7 V | 5.5 V | FLASH | 8 26 K | LVD POR PWM WDT | 384 KB | RL78 | 100-LQFP (14x14) | -40 °C | 105 °C | 86 | Surface Mount | Internal | 100-LQFP | 16 K | 16-Bit | |||||||
 Renesas Electronics Corporation | A/D 8x8/10b SAR | 32 MHz | 2.7 V | 5.5 V | FLASH | 1 K | DMA LVD POR PWM WDT | 16 KB | RL78 | 30-LSSOP | -40 °C | 125 °C | 21 I/O | Surface Mount | Internal | 30-LSSOP | 16-Bit | 4K x 8 | CSI I2C LINbus UART/USART | 0.24 in | 6.1 mm | ||||
Renesas Electronics Corporation | A/D 21x10b SAR D/A 1x8b | 24 MHz | 2.7 V | 5.5 V | FLASH | 10 K | LVD POR PWM WDT | 128 KB | RL78 | 64-LFQFP (10x10) | -40 °C | 125 °C | 52 | Surface Mount | Internal | 64-LQFP | 8 K | 16-Bit | |||||||
 Renesas Electronics Corporation |
Description
AI
RL78/F13 microcontrollers are successors to the 78K0R and R8C, are available in a 20 to 80-pin, 16KB to 128KB flash memory lineup and realize the industry's lowest level of consumption current. They have a built-in CAN module and LIN module for automotive interfaces, and in addition to the functional safety features, a RAM ECC function, PLL lock function, port output state monitoring, stack overflow detection, dedicated WDT oscillator and more have also been added. Since a more highly reliable system can be built, these microcontrollers can be used for industrial applications and of course automotive applications.
