634-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K

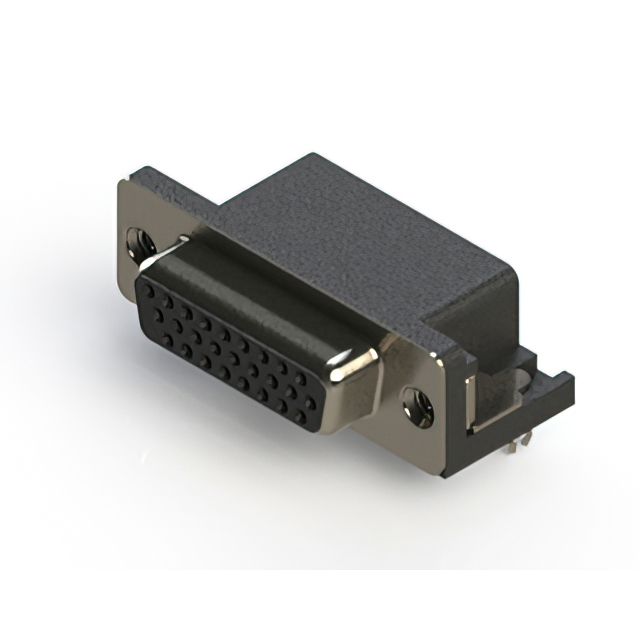

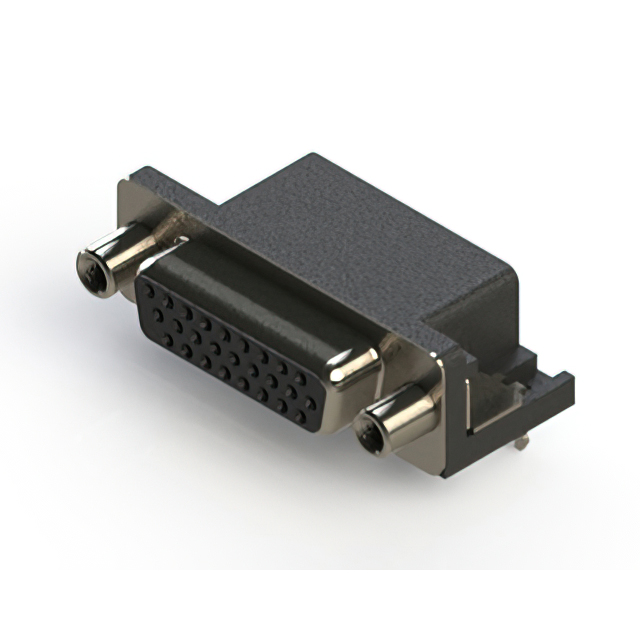

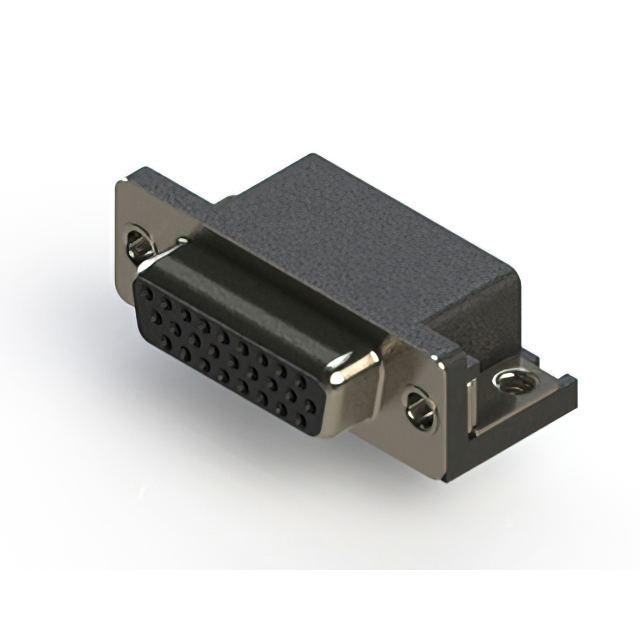

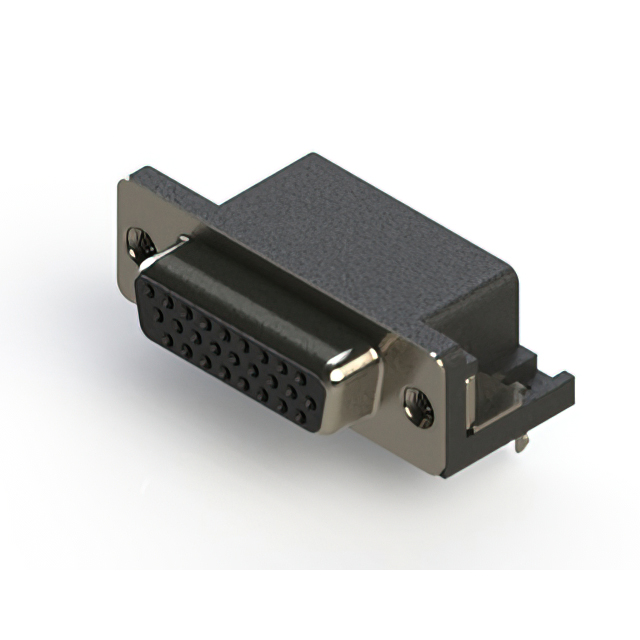

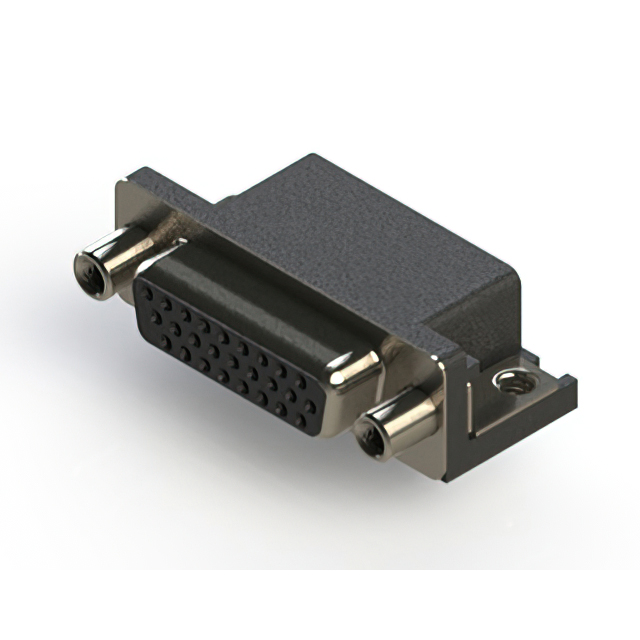

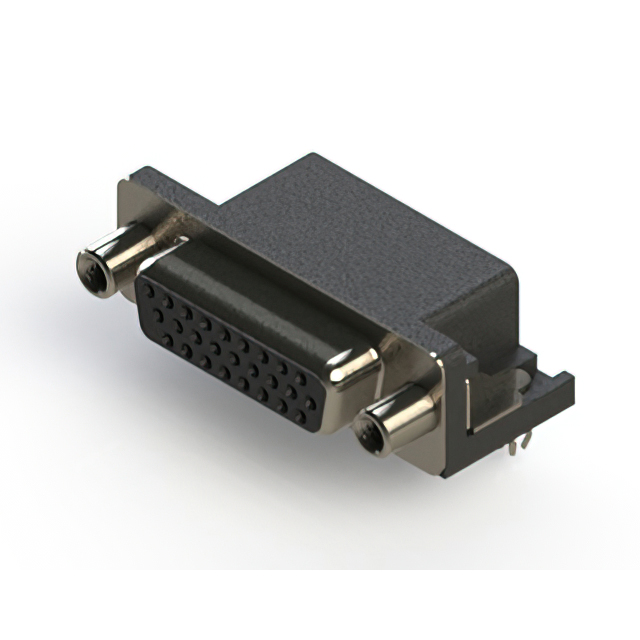

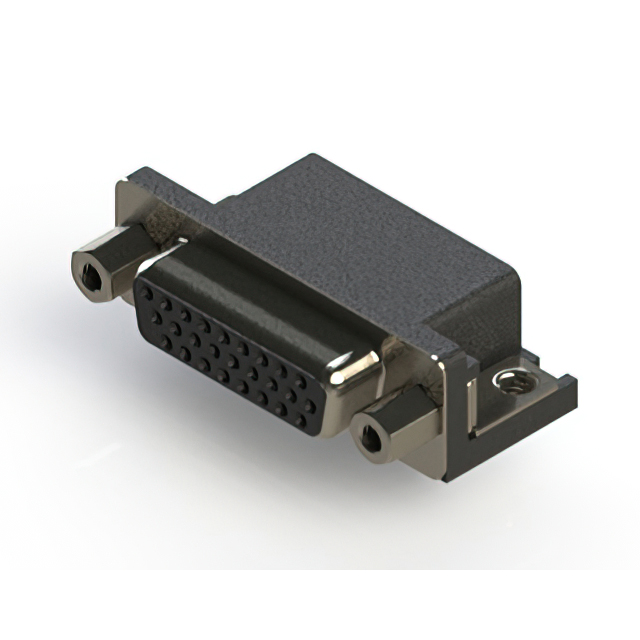

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Contact Type | Number of Rows [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Mounting Type | Termination | Number of Positions | Contact Finish | Current Rating (Amps) | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Flange Feature | Shell Material, Finish | Features | Backset Spacing | Backset Spacing | Material Flammability Rating | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Signal | 3 | 2 | DA A | Board Edge Right Angle Through Hole | Solder | 26 | Gold | 3 A | Receptacle Female Sockets | 30 Áin | 0.76 Ám | D-Sub High Density | Housing/Shell (Unthreaded) | Nickel Plated Steel | Mounting Brackets Shielded | 8.89 mm | 0.35 in | UL94 V-0 | ||
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Signal | 3 | 2 | DA A | Board Edge Right Angle Through Hole | Solder | 26 | Gold | 3 A | Receptacle Female Sockets | D-Sub High Density | 4-40 | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | UL94 V-0 | Flash | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Signal | 3 | 2 | DA A | Board Edge Right Angle Through Hole | Solder | 26 | Gold | 3 A | Receptacle Female Sockets | D-Sub High Density | Housing/Shell | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | UL94 V-0 | Flash | 4-40 | ||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Signal | 3 | 2 | DA A | Board Edge Right Angle Through Hole | Solder | 26 | Gold | 3 A | Receptacle Female Sockets | D-Sub High Density | 4-40 | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | UL94 V-0 | Flash | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Signal | 3 | 2 | DA A | Board Edge Right Angle Through Hole | Solder | 26 | Gold | 3 A | Receptacle Female Sockets | 15 µin | 0.38 µm | D-Sub High Density | Housing/Shell | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | UL94 V-0 | 4-40 | |
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Signal | 3 | 2 | DA A | Board Edge Right Angle Through Hole | Solder | 26 | Gold | 3 A | Receptacle Female Sockets | 15 µin | 0.38 µm | D-Sub High Density | 4-40 | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | UL94 V-0 | ||
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Signal | 3 | 2 | DA A | Board Edge Right Angle Through Hole | Solder | 26 | Gold | 3 A | Receptacle Female Sockets | 15 µin | 0.38 µm | D-Sub High Density | 4-40 | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | UL94 V-0 | ||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Signal | 3 | 2 | DA A | Board Edge Right Angle Through Hole | Solder | 26 | Gold | 3 A | Receptacle Female Sockets | 15 µin | 0.38 µm | D-Sub High Density | Housing/Shell (M3) | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | UL94 V-0 | ||
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Signal | 3 | 2 | DA A | Board Edge Right Angle Through Hole | Solder | 26 | Gold | 3 A | Receptacle Female Sockets | 15 µin | 0.38 µm | D-Sub High Density | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Mounting Brackets Shielded | 8.89 mm | 0.35 in | UL94 V-0 | ||
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Signal | 3 | 2 | DA A | Board Edge Right Angle Through Hole | Solder | 26 | Gold | 3 A | Receptacle Female Sockets | 30 Áin | 0.76 Ám | D-Sub High Density | 4-40 | Nickel Plated Steel | Mounting Brackets Shielded | 8.89 mm | 0.35 in | UL94 V-0 |
