ST-PERF Series
Manufacturer: SchmalzTech, LLC
Beta
⌘K
BREADBOARD GENERAL PURPOSE PTH
| Part | Material | Plating | Hole Diameter [diameter] | Hole Diameter [diameter] | Board Thickness | Board Thickness | Pitch | Pitch | Size / Dimension [x] | Size / Dimension [y] | Circuit Pattern | Proto Board Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

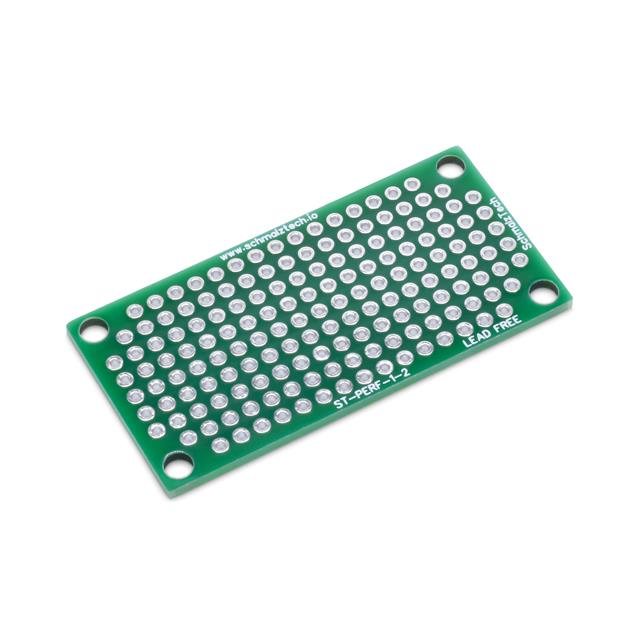

 SchmalzTech, LLC | FR4 Epoxy Glass | Plated Through Hole (PTH) | 1.07 mm | 0.042 " | 0.063 in | 1.6 mm | 2.54 mm | 0.1 " | 2 in | 1 " | Pad Per Hole (Round) | Breadboard General Purpose | |||

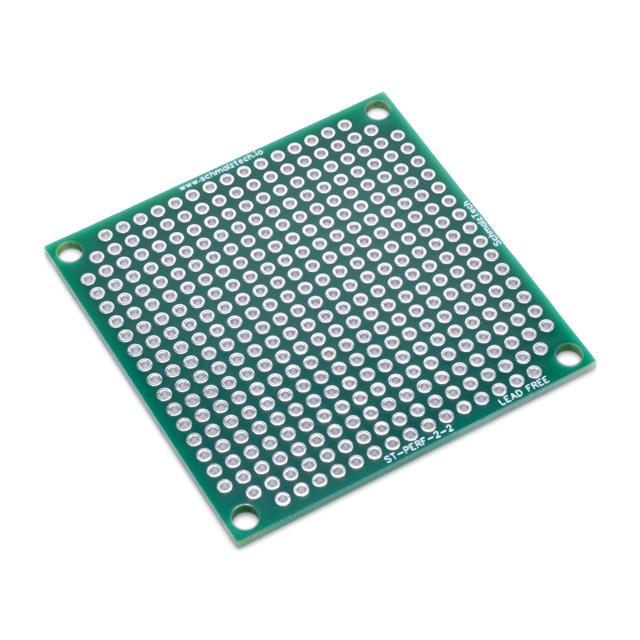

 SchmalzTech, LLC | FR4 Epoxy Glass | Plated Through Hole (PTH) | 1.07 mm | 0.042 " | 0.063 in | 1.6 mm | 2.54 mm | 0.1 " | 2 in | 2 in | Pad Per Hole (Round) | Breadboard General Purpose | 50.8 mm | 50.8 mm | |

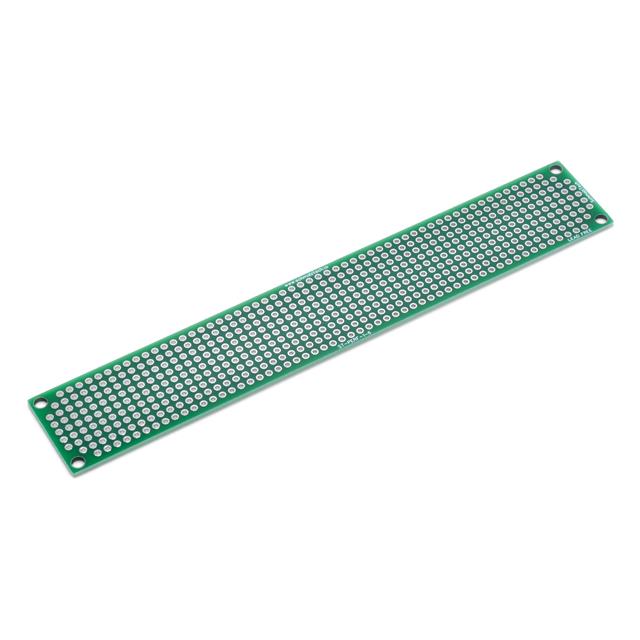

 SchmalzTech, LLC | FR4 Epoxy Glass | Plated Through Hole (PTH) | 1.07 mm | 0.042 " | 0.063 in | 1.6 mm | 2.54 mm | 0.1 " | 6 " | 1 " | Pad Per Hole (Round) | Breadboard General Purpose | 152.4 mm | 25.4 mm | |

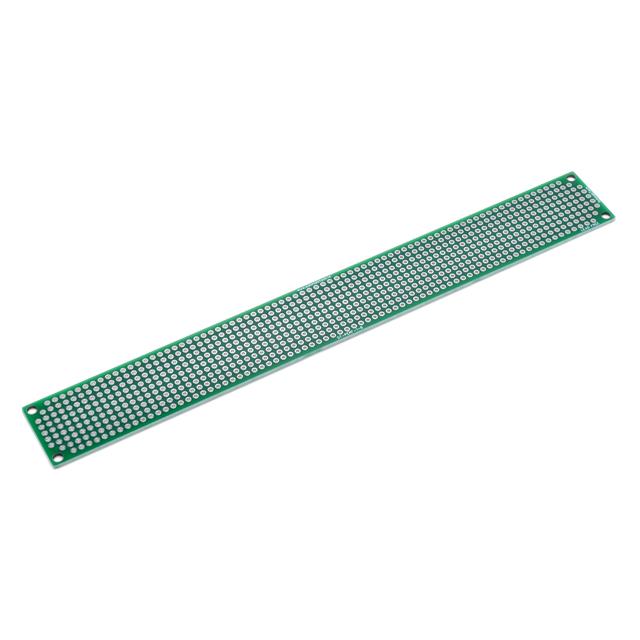

 SchmalzTech, LLC | FR4 Epoxy Glass | Plated Through Hole (PTH) | 1.07 mm | 0.042 " | 0.063 in | 1.6 mm | 2.54 mm | 0.1 " | 8 in | 1 " | Pad Per Hole (Round) | Breadboard General Purpose | 203.2 mm | 25.4 mm | |

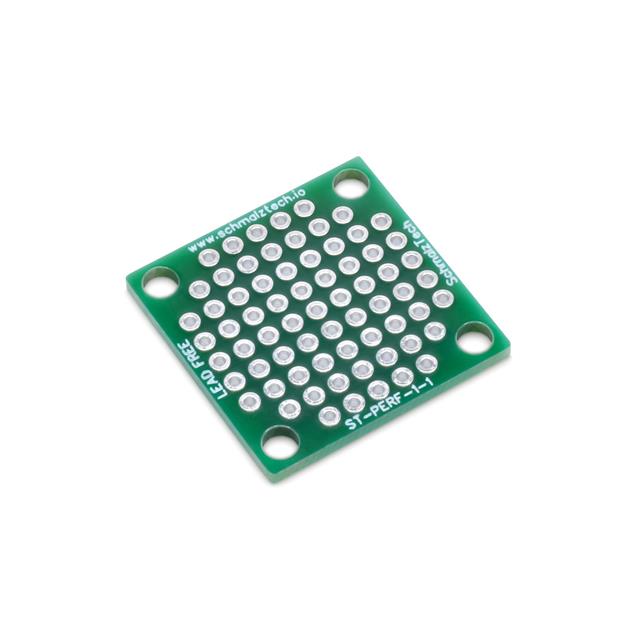

 SchmalzTech, LLC | FR4 Epoxy Glass | Plated Through Hole (PTH) | 1.07 mm | 0.042 " | 0.063 in | 1.6 mm | 2.54 mm | 0.1 " | 1 in | 1 " | Pad Per Hole (Round) | Breadboard General Purpose | 25.4 mm | 25.4 mm | |
 SchmalzTech, LLC | FR4 Epoxy Glass | Plated Through Hole (PTH) | 1.07 mm | 0.042 " | 0.063 in | 1.6 mm | 2.54 mm | 0.1 " | 4 " | 1 " | Pad Per Hole (Round) | Breadboard General Purpose | 101.6 mm | 25.4 mm |
