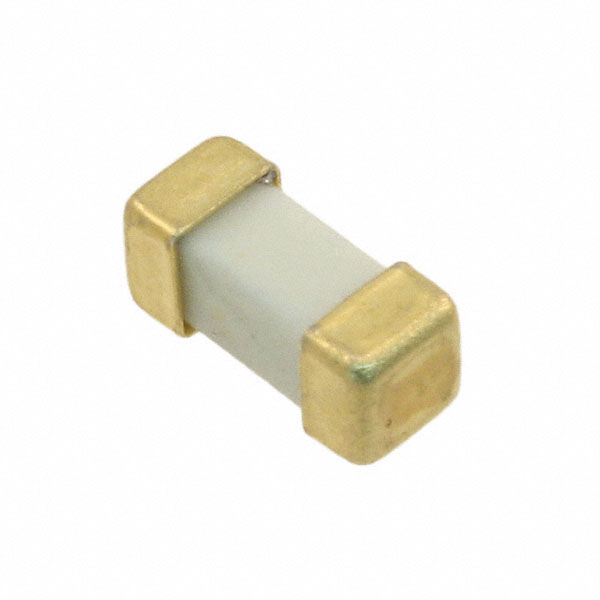

FUSE 125V SB NANO2 LEAD-FREE 3.5A
FUSE 125V SB NANO2 LEAD-FREE 3.5A
| Part | DC Cold Resistance | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Fuse Type | Voltage Rating - DC | Mounting Type | Current Rating (Amps) | Approval Agency | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.0261 Ohms | Slow Blow | 50 A | 32.7 | 2-SMD Square End Block | -55 C | 125 °C | 0.106 in | 2.69 mm | 0.24 " | 6.1 mm | 0.106 in | 2.69 mm | Board Mount (Cartridge Style Excluded) | 125 VDC | Surface Mount | 3.5 A | cURus PSE | 125 V |
