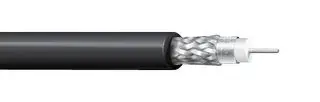

4505R Series
Manufacturer: Belden Inc.
Beta
⌘K
#20 PE/GIFHDLDPE SH FRPVC ORANGE
| Part | Shield Material | Shield Coverage | VoP, Velocity of Propagation | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Strand | Jacket (Insulation) Material | Wire Gauge | Cable Group | Usage | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket Color | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester Copper Tinned | 95 % 100 % | 83 | Copper Silver Coated | 0.145 in | 3.68 mm | Solid | Poly-Vinyl Chloride (PVC) | 20 AWG | RG-59 | Video | 304.8 m | 1000 ft | 5.92 mm | 0.233 in | Coaxial - Riser | Orange | Braid Foil |
Belden Inc. | Aluminum Polyester Copper Tinned | 95 % 100 % | 83 | Copper Silver Coated | 0.145 in | 3.68 mm | Solid | Poly-Vinyl Chloride (PVC) | 20 AWG | RG-59 | Video | 304.8 m | 1000 ft | 5.92 mm | 0.233 in | Coaxial - Riser | Black | Braid Foil |
