SP Series

Circular Push Pull Connectors

Manufacturer: Phoenix Contact

Catalog

Circular Push Pull Connectors

Catalog

Circular Push Pull Connectors

Part	Voltage - UL	Plug Wire Entry	Color	Type	Mounting Type	Current - IEC	Features	Positions Per Level	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Voltage - IEC	Termination Style	Current - UL	Insulation Height	Insulation Height	Material Flammability Rating	Wire Strip Length	Housing Material
Phoenix Contact 3043019	300 V	180 °	Gray	Plug Female Sockets	Free Hanging (In-Line)	24 A	Interlocking (Side)	1	0.08 mm²	4 mm²	1	28 AWG	12 AWG	1	500 V	Screwless - Spring Cage Tension Clamp	20 A

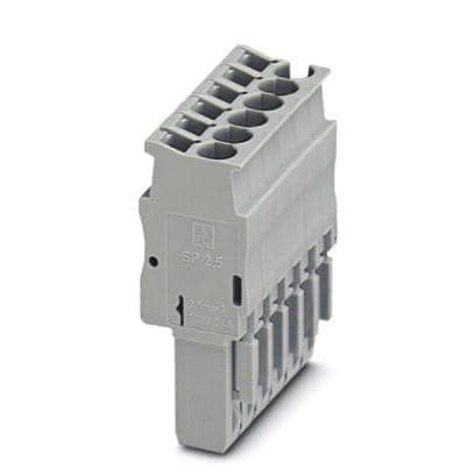

Phoenix Contact 3040274	300 V	180 °	Gray	Plug Female Sockets	Free Hanging (In-Line)	24 A		3	0.08 mm²	4 mm²	1	28 AWG	12 AWG		500 V	Screwless - Spring Cage Tension Clamp	20 A

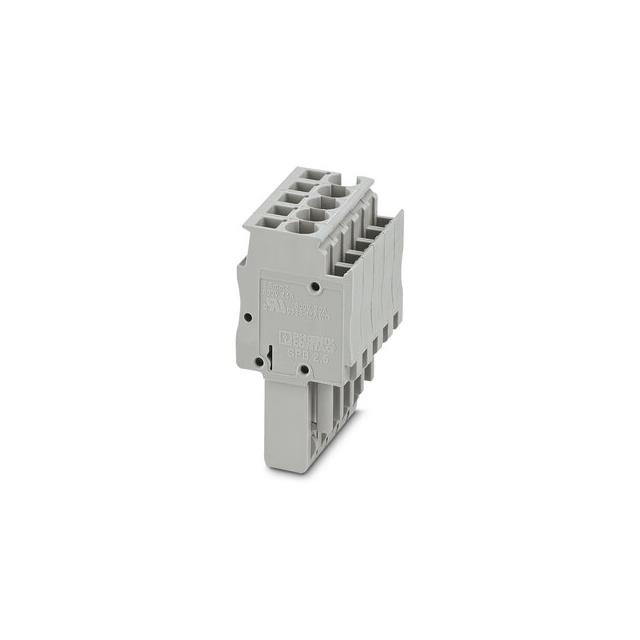

Phoenix Contact 3040143	300 V	180 °	Gray	Plug Female Sockets	Free Hanging (In-Line)	24 A		5	0.08 mm²	4 mm²	1	28 AWG	12 AWG	5	500 V	Screwless - Spring Cage Tension Clamp	20 A	39 mm	1.535 in	UL94 V-0	10 mm	Polyamide (PA) Nylon
Phoenix Contact 3043051	300 V	180 °	Blue	Plug Female Sockets	Free Hanging (In-Line)	24 A	Interlocking (Side)	1	0.08 mm²	4 mm²	1	28 AWG	12 AWG	1	500 V	Screwless - Spring Cage Tension Clamp	20 A
Phoenix Contact 3042793		180 °	Blue	Plug Female Sockets	Free Hanging (In-Line)	32 A		1	0.08 mm²	6 mm²	1	28 AWG	10 AWG	1	800 V	Screwless - Spring Cage Tension Clamp	30 A	41.5 mm	1.634 "	UL94 V-0	10 mm	Polyamide (PA) Nylon
Phoenix Contact 3042803		180 °	Green Yellow	Plug Female Sockets	Free Hanging (In-Line)	32 A		1	0.08 mm²	6 mm²	1	28 AWG	10 AWG	1	800 V	Screwless - Spring Cage Tension Clamp	30 A
Phoenix Contact 3210635	300 V	180 °	Gray	Plug Female Sockets	Free Hanging (In-Line)	24 A		3	0.08 mm²	4 mm²	1	26 AWG	12 AWG		500 V	Screwless - Spring Cage Tension Clamp	20 A
Phoenix Contact 3040698	300 V	180 °	Blue	Plug Female Sockets	Free Hanging (In-Line)	24 A		1	0.08 mm²	4 mm²	1	28 AWG	12 AWG	1	500 V	Screwless - Spring Cage Tension Clamp	20 A
Phoenix Contact 3042890		180 °	Gray	Plug Female Sockets	Free Hanging (In-Line)	32 A		2	0.08 mm²	6 mm²	1	28 AWG	10 AWG	2	800 V	Screwless - Spring Cage Tension Clamp	30 A
Phoenix Contact 3042997		180 °	Gray	Plug Female Sockets	Free Hanging (In-Line)	32 A		11	0.08 mm²	6 mm²	1	28 AWG	10 AWG	11	800 V	Screwless - Spring Cage Tension Clamp	30 A
