3238 Series

Catalog

CONN RING SLOTTED 16-22AWG #10

Part	Contact Material	Stud/Tab Size	Mounting Type	Terminal Type	Thickness	Thickness	Features	Termination	Contact Finish	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Material - Insulation	Color	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Wire Gauge	Width - Outer Edges	Length - Overall
TE Connectivity Raychem Cable Protection 323832	Copper	10 Stud	Free Hanging (In-Line)	Slotted	0.031 in	0.79 mm	Serrated Termination	Crimp	Tin	Non-Insulated	7.92 mm	0.312 in	22 AWG	16 AWG	0.588 in	14.94 mm

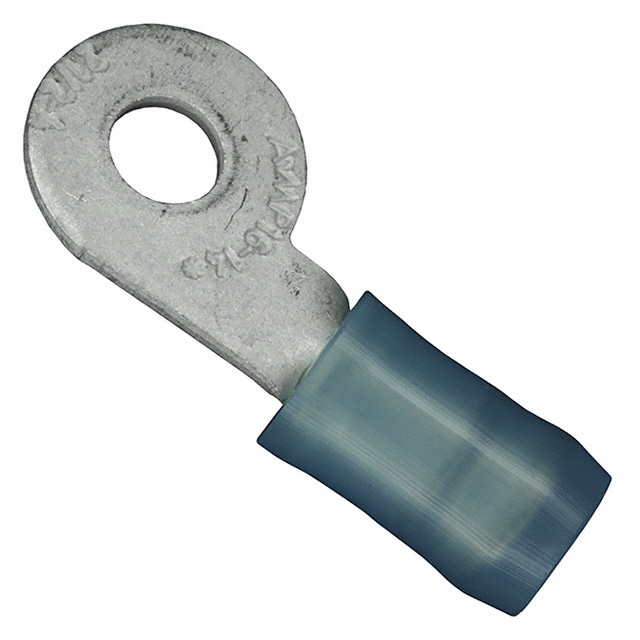

TE Connectivity Raychem Cable Protection 323817	Copper	6 Stud	Free Hanging (In-Line)	Circular	0.031 in	0.79 mm	Offset Holes Serrated Termination	Crimp	Tin	Insulated					0.906 in	23.01 mm	0.105 in	3.81 mm	2.67 mm	0.15 "	0.375 in	9.53 mm	Nylon Polyamide (PA)	Blue
TE Connectivity Raychem Cable Protection 323869	Copper	0.25 Stud	Free Hanging (In-Line) Right Angle	Circular	0.04 in	1.02 mm	Serrated Termination	Crimp	Tin	Insulated											0.587 in		Vinyl	Red	7.57 mm	0.298 "	8 AWG	14.91 mm
TE Connectivity Raychem Cable Protection 323835	Copper	6 Stud	Free Hanging (In-Line)	Slotted	0.031 in	0.79 mm	Serrated Termination	Crimp	Tin	Non-Insulated			22 AWG	16 AWG	0.423 in						0.218 in	5.54 mm							10.74 mm
