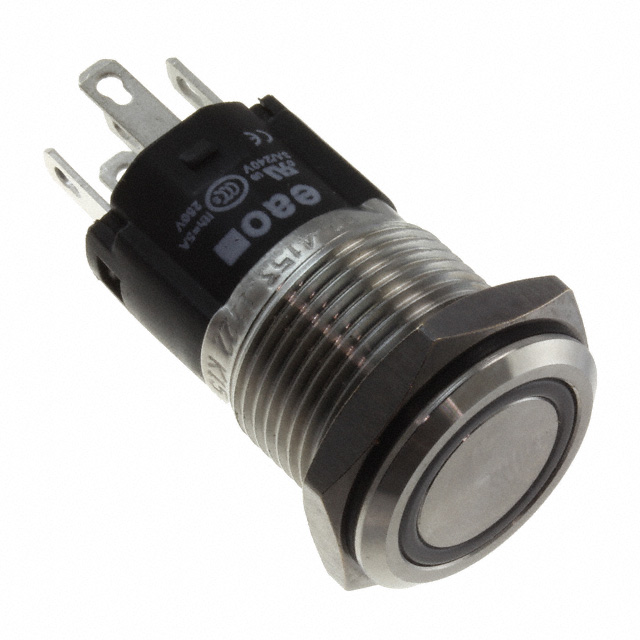

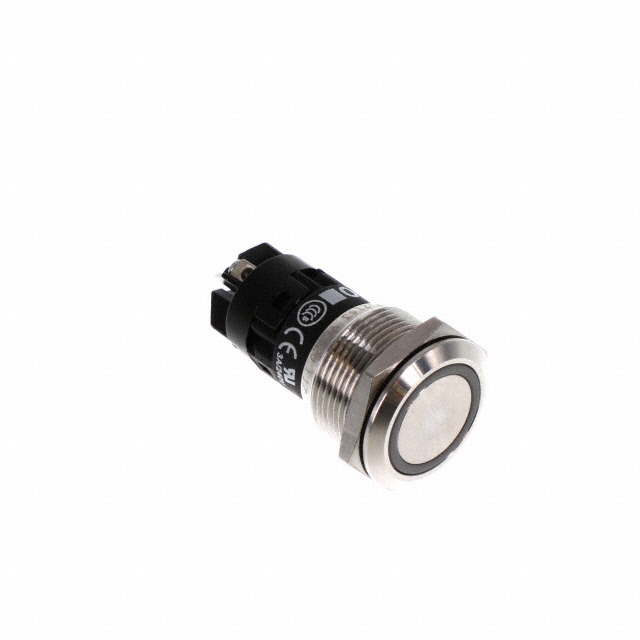

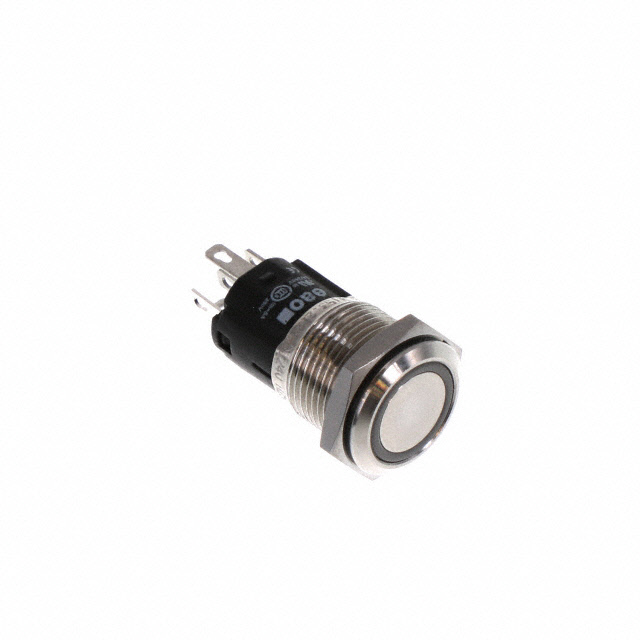

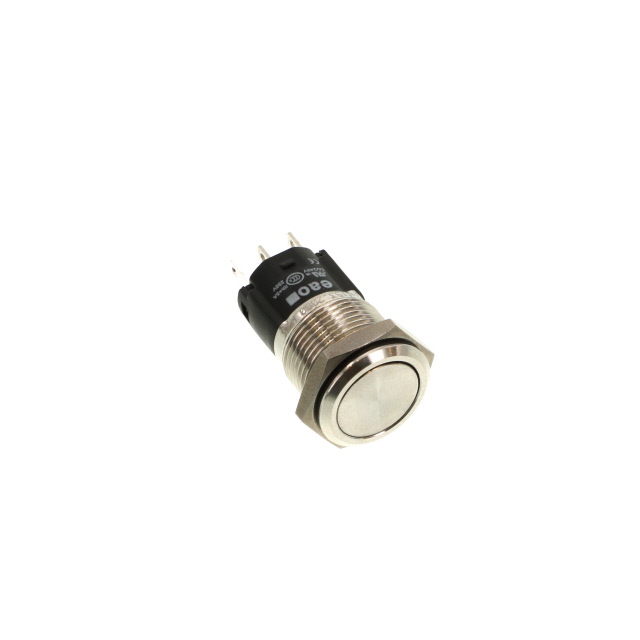

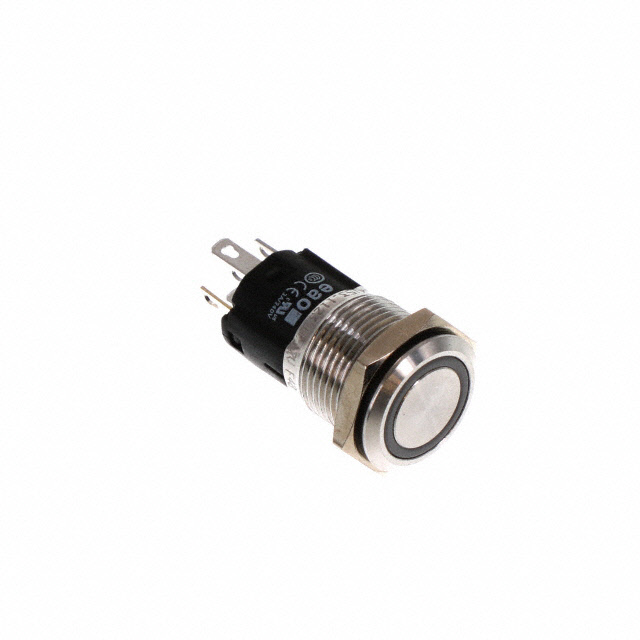

82-4153 Series
Manufacturer: EAO
Beta
⌘K
SWITCH PB SPDT 0.2A 24V
| Part | Mechanical Life | Electrical Life | Current Rating (Amps) | Switch Function | Panel Cutout Dimensions [diameter] | Type | Termination Style | Color - Actuator/Cap | Actuator Type | Voltage Rating - DC | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Ingress Protection | Voltage Rating - AC | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 500000 Cycles | 50000 Cycles | 200 mA | On-On | 16 mm | Illuminated Standard | Solder Quick Connect - 0.110" (2.8mm) | Silver | Button Flush Round | 24 V | Panel Mount Front | -30 ░C | 70 °C | SPDT | IP65 IP67 | 24 V | No Marking | Green/Red LED | ||
EAO | 1000000 Cycles | 50000 Cycles | 3 A | On-Mom | 16 mm | Illuminated Standard | Solder Quick Connect - 0.110" (2.8mm) | Silver | Button Flush Round | 240 VDC | Panel Mount Front | -30 ░C | 70 °C | SPDT | IP65 IP67 | 240 V | No Marking | Green/Red LED | 24 VAC/DC | |
EAO | 500000 Cycles | 50000 Cycles | 3 A | On-On | 16 mm | Illuminated Standard | Solder Quick Connect - 0.110" (2.8mm) | Silver | Button Flush Round | 240 VDC | Panel Mount Front | -30 ░C | 70 °C | SPDT | IP65 IP67 | 240 V | No Marking | Green/Red LED | 24 VAC/DC | |
EAO | 1000000 Cycles | 50000 Cycles | 3 A | On-Mom | 16 mm | Illuminated Standard | Solder Quick Connect - 0.110" (2.8mm) | Silver | Button Flush Round | 240 VDC | Panel Mount Front | -30 ░C | 70 °C | SPDT | IP65 IP67 | 240 V | No Marking | Green/Red LED | 24 VAC/DC | |
 EAO | 500000 Cycles | 50000 Cycles | 200 mA | On-On | 16 mm | Illuminated Standard | Solder Quick Connect - 0.110" (2.8mm) | Silver | Button Flush Round | 24 V | Panel Mount Front | -30 ░C | 70 °C | SPDT | IP65 IP67 | 24 V | No Marking | Green LED | 24 VAC/DC | Stainless Steel |
 EAO | 1000000 Cycles | 50000 Cycles | 200 mA | On-Mom | 16 mm | Illuminated Standard | Solder Quick Connect - 0.110" (2.8mm) | Silver | Button Flush Round | 24 V | Panel Mount Front | -30 ░C | 70 °C | SPDT | IP65 IP67 | 24 V | No Marking | Blue LED | 12 VAC/DC | Stainless Steel |
 EAO | 500000 Cycles | 50000 Cycles | 200 mA | On-On | 16 mm | Illuminated Standard | Solder Quick Connect - 0.110" (2.8mm) | Silver | Button Flush Round | 24 V | Panel Mount Front | -30 ░C | 70 °C | SPDT | IP65 IP67 | 24 V | No Marking | Blue LED | 24 VAC/DC | Stainless Steel |
 EAO | 500000 Cycles | 50000 Cycles | 200 mA | On-On | 16 mm | Standard | Solder Quick Connect - 0.110" (2.8mm) | Silver | Button Flush Round | 24 V | Panel Mount Front | -30 ░C | 70 °C | SPDT | IP65 IP67 | 24 V | No Marking | Stainless Steel | ||
 EAO | 1000000 Cycles | 50000 Cycles | 200 mA | On-Mom | 16 mm | Illuminated Standard | Solder Quick Connect - 0.110" (2.8mm) | Silver | Button Flush Round | 24 V | Panel Mount Front | -30 ░C | 70 °C | SPDT | IP65 IP67 | 24 V | No Marking | Blue LED | 6 VAC/DC | Stainless Steel |
EAO | 500000 Cycles | 50000 Cycles | 200 mA | On-On | 16 mm | Illuminated Standard | Solder Quick Connect - 0.110" (2.8mm) | Silver | Button Flush Round | 24 V | Panel Mount Front | -30 ░C | 70 °C | SPDT | IP65 IP67 | 24 V | No Marking | Green LED | 6 VAC/DC |
