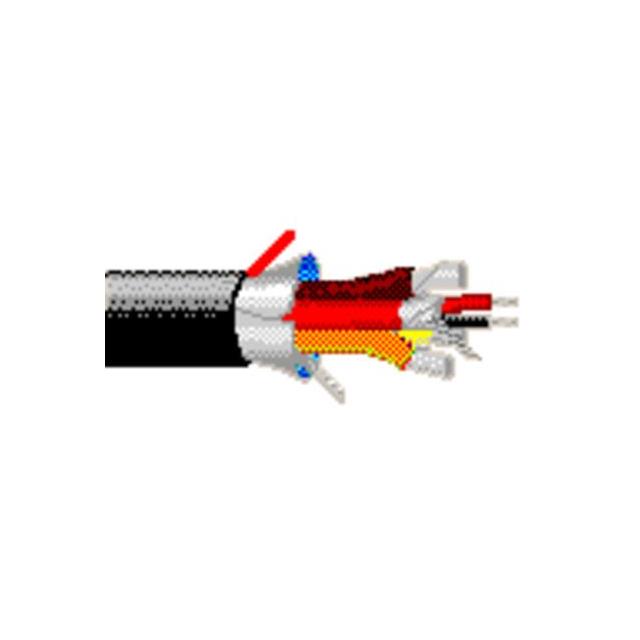

1411R Series
Manufacturer: Belden Inc.
Beta
⌘K
12 #24 PR BFS PVC FS
| Part | Shield Coverage | Shield Material | Features | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Shield Type | Length | Length | Jacket (Insulation) Material | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Cable Type | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Material | Usage | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | Drain Wire Rip Cord | 300 VDC | 75 ░C | -30 ░C | 24 AWG | Foil | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | 14.1 mm | 0.555 in | 1.143 mm | 0.045 in | Multi-Pair | UL Style CMR | 7 | 32 AWG | 24 | Copper Tinned | Audio | Black |
