796858 Series

Catalog

CONN EUROSTYLE BLOCK F 3 POS 5MM SCREW RA CABLE MOUNT 15A/CONTACT CARTON

Part	Insulation Height	Insulation Height	Torque - Screw	Torque - Screw	Contact Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Screw Size	Plug Wire Entry	Type	Voltage - UL	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Mounting Type	Positions Per Level	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Features	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Positions

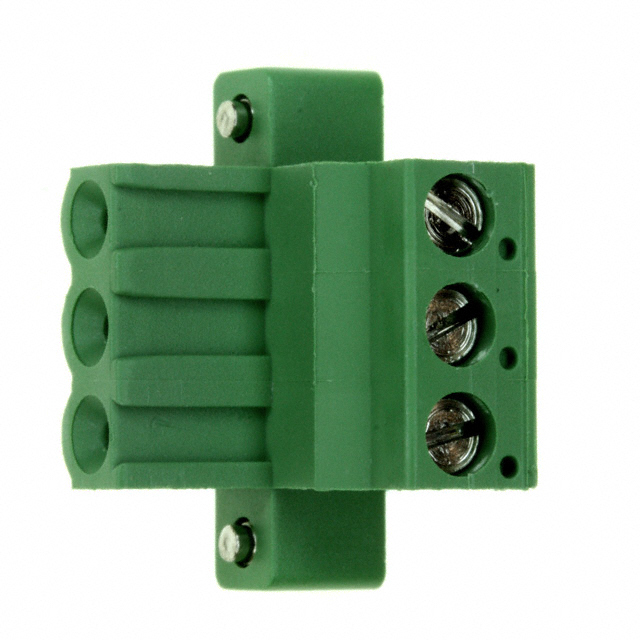

TE Connectivity AMP Connectors 796858-3	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	Phosphor Bronze	3 mm˛	0.05 mm˛	7.5 mm	6 mm	UL94 V-0	M3	180 °	Plug Female Sockets	300 V	Screw - Rising Cage Clamp	-40 C	110 °C	0.197 in	5 mm	Free Hanging (In-Line)	3	1	30 AWG	12 AWG	Tin	Mating Flange	Green	3 mm²	0.05 mm²

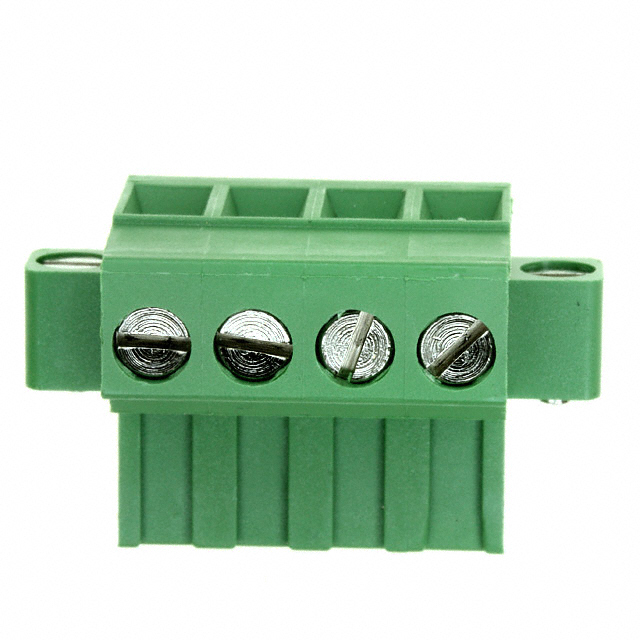

TE Connectivity AMP Connectors 796858-4	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	Phosphor Bronze	3 mm˛	0.05 mm˛	7.5 mm	6 mm	UL94 V-0	M3	180 °	Plug Female Sockets	300 V	Screw - Rising Cage Clamp	-40 C	110 °C	0.197 in	5 mm	Free Hanging (In-Line)	4	1	30 AWG	12 AWG	Tin	Mating Flange	Green	3 mm²	0.05 mm²	4

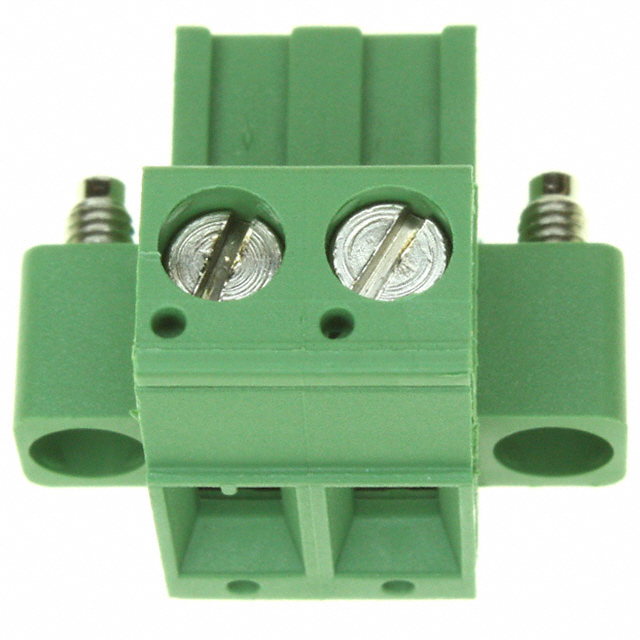

TE Connectivity AMP Connectors 796858-2	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	Phosphor Bronze			7.5 mm	6 mm	UL94 V-0	M3	180 °	Plug Female Sockets	300 V	Screw - Rising Cage Clamp	-40 C	110 °C	0.197 in	5 mm	Free Hanging (In-Line)	2	1	30 AWG	12 AWG	Tin	Mating Flange	Green	3 mm²	0.05 mm²	2
