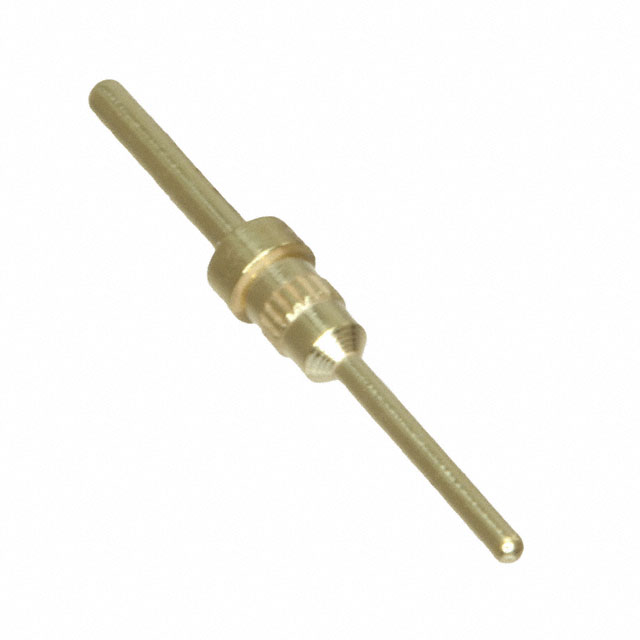

5005-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

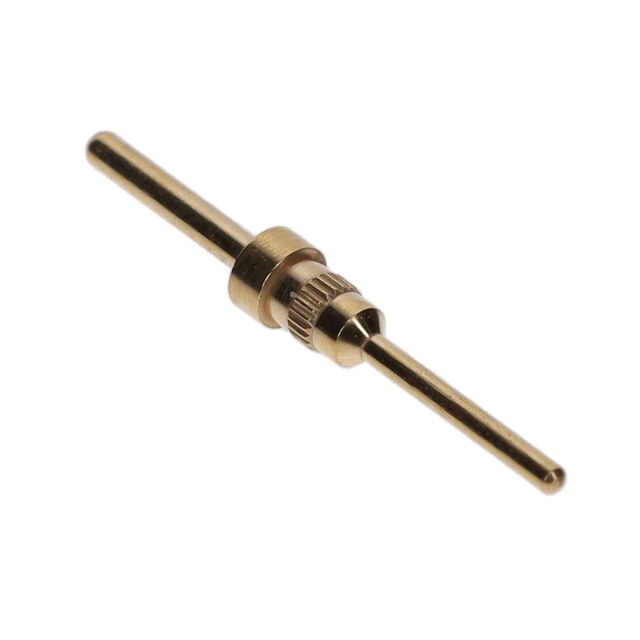

CONN PC PIN CIRC 0.030DIA GOLD
| Part | Length - Overall | Length - Overall | Contact Material | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Style | Mounting Type | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 13.46 mm | 0.53 in | Brass Alloy | PC Pin | 1.45 mm | 0.057 in | 0.024 in | 0.61 mm | 20 µin | 0.51 µm | Gold | 0.072 " | 1.83 mm | Knurled Press-Fit | 0.302 " | 7.67 mm | Double End | Through Hole | Non-Insulated | 0.03 in | 0.76 mm |
 Mill-Max Manufacturing Corp. | 13.46 mm | 0.53 in | Brass Alloy | PC Pin | 1.45 mm | 0.057 in | 0.024 in | 0.61 mm | 50 µin | 1.27 µm | Gold | 0.072 " | 1.83 mm | Knurled Press-Fit | 0.302 " | 7.67 mm | Double End | Through Hole | Non-Insulated | 0.03 in | 0.76 mm |
 Mill-Max Manufacturing Corp. | 13.46 mm | 0.53 in | Brass Alloy | PC Pin | 1.45 mm | 0.057 in | 0.024 in | 0.61 mm | 10 Áin | 0.25 Ám | Gold | 0.072 " | 1.83 mm | Knurled Press-Fit | 0.302 " | 7.67 mm | Double End | Through Hole | Non-Insulated | 0.03 in | 0.76 mm |
