78403 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

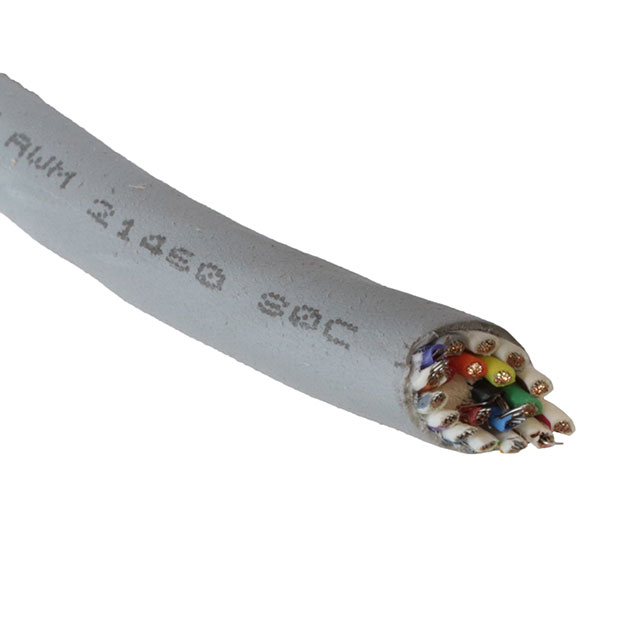

CABLE 20COND 24AWG SLATE 100'
| Part | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Length [x] | Length [x] | Cable Type | Conductor Insulation | Conductor Material | Number of Conductors | Ratings | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Features | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Polyphenylene Ether Modified (mPPE) | 300 VDC | 0.238 " | 6.05 mm | 80 °C | -40 C | Slate | 100 ft | 30.5 m | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 20 | ISO 10993 UL Style 21460 | 0.381 mm | 0.015 in | Biological Compatibility Rip Cord | 24 AWG | ||
ALPHA WIRE | Polyphenylene Ether Modified (mPPE) | 300 VDC | 0.238 " | 6.05 mm | 80 °C | -40 C | Slate | 1 ' | 300 mm | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 20 | ISO 10993 UL Style 21460 | 0.381 mm | 0.015 in | Biological Compatibility Rip Cord | 24 AWG | ||
ALPHA WIRE | Polyphenylene Ether Modified (mPPE) | 300 VDC | 0.238 " | 6.05 mm | 80 °C | -40 C | Slate | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 20 | ISO 10993 UL Style 21460 | 0.381 mm | 0.015 in | Biological Compatibility Rip Cord | 24 AWG | 304.8 m | 1000 ft |
