RT3301 Series
Manufacturer: E-Switch
Beta
⌘K

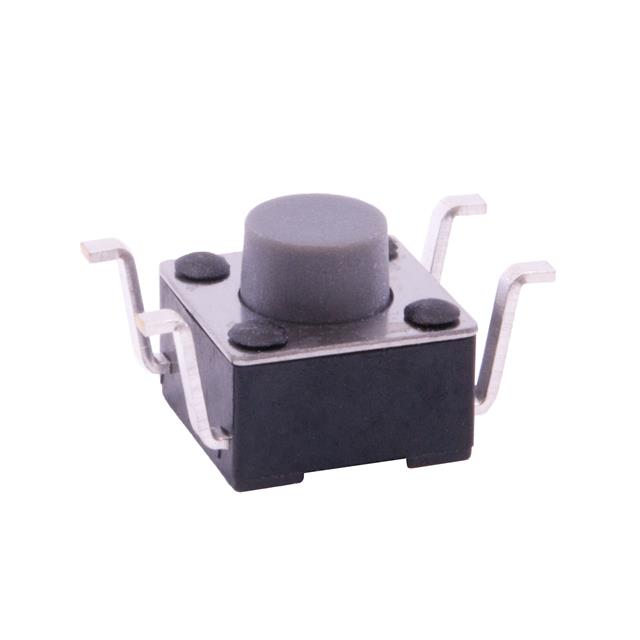

TACTILE SWITCH, SPST-NO-DM, RT3301 SERIES, TOP ACTUATED, SMD - REVERSE MOUNT, ROUND BUTTON, 260 GF
| Part | Mechanical Life | Switch Travel | Illumination | Contact Rating @ Voltage | Actuator Type | Operating Force | Outline [x] | Outline [y] | Circuit | Actuator Orientation | Actuator Height off PCB, Vertical [z] | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | 0.25 mm | Non-Illuminated | 0.05 A 12 VDC | Standard | 260 gf | 6 mm | 6 mm | SPST-NO | Top Actuated | 5.3 mm | 85 °C | -40 C | Off-Mom | Surface Mount | Gull Wing |
