MC Series

Catalog

PLUGGABLE TERMINAL BLOCKS 8 POS 3.5MM PITCH PLUG 28-16 AWG SCREW

...

Part	Housing Material	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Screw Size	Material Flammability Rating	Wire Strip Length	Voltage - UL	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Current - IEC	Current - UL	Features	Pitch	Pitch	Termination Style	Contact Mating Finish	Voltage - IEC	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Number of Positions	Number of Levels	Plug Wire Entry	Positions Per Level	Insulation Height [custom]	Insulation Height [custom]	Contact Tail Length	Contact Tail Length	Header Orientation	Insulation Height	Insulation Height

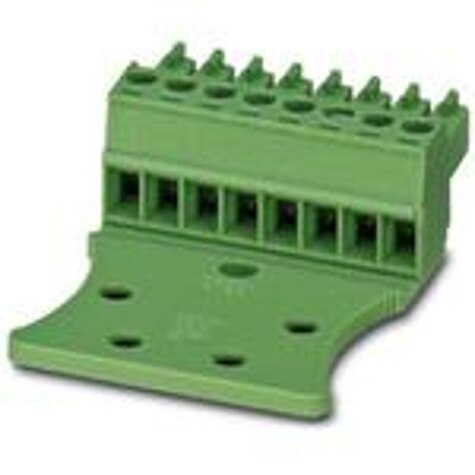

Phoenix Contact 1765599	Polyamide (PA) Nylon	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	M2	UL94 V-0	7 mm	300 V	1.5 mm²	0.14 mm²	Green	8 A	8 A	Strain Relief	3.5 mm	0.138 "	Screw - Rising Cage Clamp	Tin	320 V	Free Hanging (In-Line)	14 AWG	30 AWG	Plug Female Sockets	8	1	180 °	8

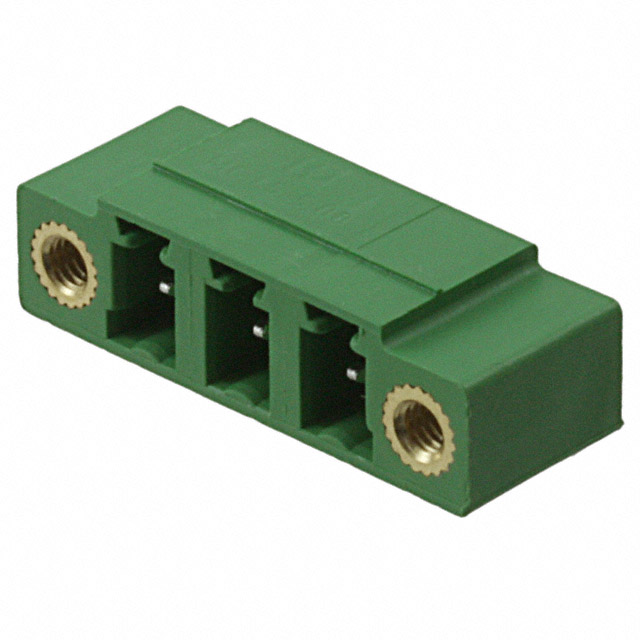

Phoenix Contact 1847479	Polybutylene Terephthalate (PBT)						UL94 V-0		300 V			Green	8 A	8 A	Mating and Mounting Flange	5.08 mm	0.2 in	Solder	Tin	400 V	Through Hole			Header Male Pins Shrouded (4 Side)		1		3	0.285 in	7.25 mm	0.138 in	3.5 mm	90° Right Angle
Phoenix Contact 1716836									300 V	1.5 mm²	0.14 mm²	Black	8 A	8 A	Mating Flange	5.08 mm	0.2 in	Screw - Rising Cage Clamp	Tin	250 V	Free Hanging (In-Line)	14 AWG	30 AWG	Plug Female Sockets		1	180 °	3

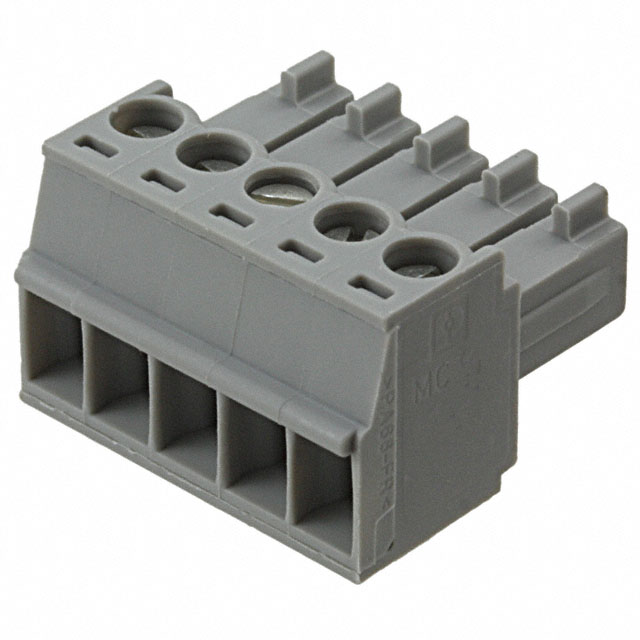

Phoenix Contact 1916368		0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	M2		7 mm	300 V	1.5 mm²	0.14 mm²	Gray	8 A	8 A		3.5 mm	0.138 "	Screw - Rising Cage Clamp	Tin	160 V	Free Hanging (In-Line)	14 AWG	30 AWG	Plug Female Sockets	5	1	180 °	5						11.1 mm	0.437 in
Phoenix Contact 1963670									125 V			Black	4 A	4 A		2.5 mm	0.098 in	Solder	Tin	160 V	Through Hole			Header Male Pins Shrouded (4 Side)	5	1		5					90° Right Angle

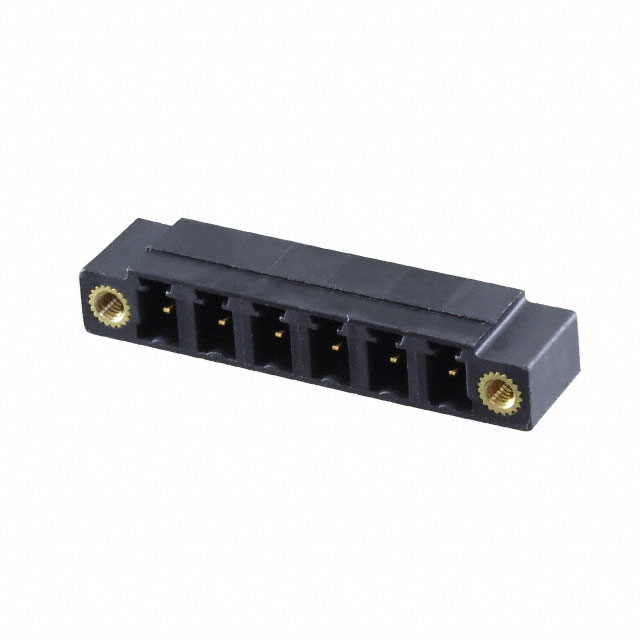

Phoenix Contact 1826980												Black	8 A		Mating and Mounting Flange	5.08 mm	0.2 in	Solder	Gold		Through Hole			Header Male Pins Shrouded (4 Side)	6	1		6	0.285 in	7.25 mm	0.138 in	3.5 mm	90° Right Angle
Phoenix Contact 1846328	Polyamide (PA) Nylon	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	M2	UL94 V-0	7 mm	300 V	1.5 mm²	0.14 mm²	Green	8 A	8 A	Positions Stamped	3.81 mm	0.15 in	Screw - Rising Cage Clamp	Tin	320 V	Free Hanging (In-Line)	14 AWG	30 AWG	Plug Female Sockets	5	1	180 °	5						11.1 mm	0.437 in
Phoenix Contact 1782420									300 V			Black	8 A	8 A		3.81 mm	0.15 in	Solder	Tin	250 V	Through Hole			Header Male Pins Shrouded (4 Side)	9	1		9					90° Right Angle
Phoenix Contact 1781887	Liquid Crystal Polymer (LCP)						UL94 V-0		300 V			Black	8 A	8 A	Mating Flange	3.81 mm	0.15 in	Solder	Tin	250 V	Through Hole			Header Male Pins Shrouded (4 Side)	10	1		10			0.055 in	1.4 mm	90° Right Angle	6.91 mm	0.272 in
Phoenix Contact 1706146	Liquid Crystal Polymer (LCP)						UL94 V-0		150 V			Black	6 A	6 A	Solder Retention	2.54 mm	0.1 "	Solder	Gold	160 V	Surface Mount			Header Male Pins Shrouded (4 Side)	5	1		5					90° Right Angle	4.8 mm	0.189 in
