RBE50 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FML 100POS 0.039

Part	Material - Insulation	Color	Flange Feature	Mounting Type	Card Type	Read Out	Gender	Contact Type	Contact Finish	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions/Bay/Row	Pitch	Pitch	Number of Positions	Card Thickness	Card Thickness	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Features
Sullins Connector Solutions RBE50DHHT	Polyphenylene Sulfide (PPS)	Black	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Non Specified - Dual Edge	Dual	Female	Hairpin Bellows	Gold	2	-65 ░C	125 °C	Phosphor Bronze	50	1 mm	0.039 in	100	1.57 mm	0.062 in	Solder Staggered	0.25 Ám	10 Áin
Sullins Connector Solutions RBE50DHFN	Polyphenylene Sulfide (PPS)	Black		Surface Mount	Non Specified - Dual Edge	Dual	Female	Hairpin Bellows	Gold	2	-65 ░C	125 °C	Phosphor Bronze	50	1 mm	0.039 in	100	1.57 mm	0.062 in	Solder	0.25 Ám	10 Áin
Sullins Connector Solutions RBE50DHHD	Polyphenylene Sulfide (PPS)	Black	Flush Mount Top Opening Unthreaded	Through Hole	Non Specified - Dual Edge	Dual	Female	Hairpin Bellows	Gold	2	-65 ░C	125 °C	Phosphor Bronze	50	1 mm	0.039 in	100	1.57 mm	0.062 in	Solder Staggered	0.25 Ám	10 Áin	3.18 mm	0.125 "
Sullins Connector Solutions RBE50DHRD	Polyphenylene Sulfide (PPS)	Black	Flush Mount Top Opening Unthreaded	Board Edge Straddle Mount	Non Specified - Dual Edge	Dual	Female	Hairpin Bellows	Gold	2	-65 ░C	125 °C	Phosphor Bronze	50	1 mm	0.039 in	100	1.57 mm	0.062 in	Solder	0.25 Ám	10 Áin	3.18 mm	0.125 "	Card Extender
Sullins Connector Solutions RBE50DHFD	Polyphenylene Sulfide (PPS)	Black	Flush Mount Top Opening Unthreaded	Surface Mount	Non Specified - Dual Edge	Dual	Female	Hairpin Bellows	Gold	2	-65 ░C	125 °C	Phosphor Bronze	50	1 mm	0.039 in	100	1.57 mm	0.062 in	Solder	0.25 Ám	10 Áin	3.18 mm	0.125 "
Sullins Connector Solutions RBE50DHFT	Polyphenylene Sulfide (PPS)	Black	4-40 Flush Mount Threaded Insert Top Opening	Surface Mount	Non Specified - Dual Edge	Dual	Female	Hairpin Bellows	Gold	2	-65 ░C	125 °C	Phosphor Bronze	50	1 mm	0.039 in	100	1.57 mm	0.062 in	Solder	0.25 Ám	10 Áin

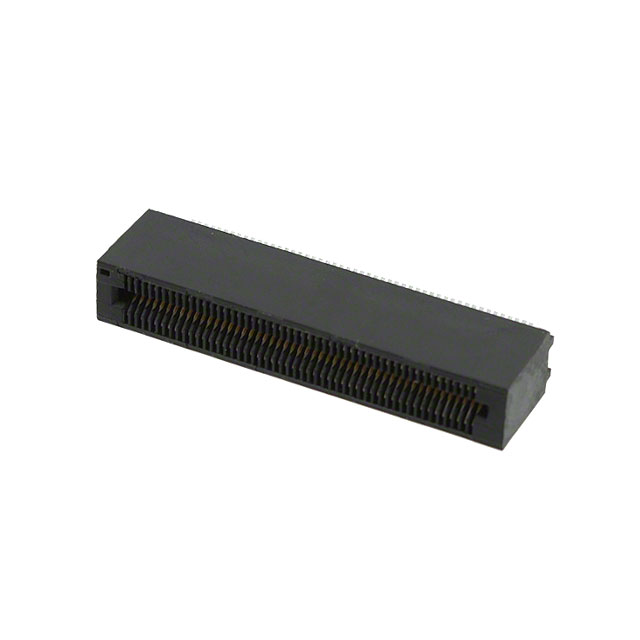

Sullins Connector Solutions RBE50DHRN	Polyphenylene Sulfide (PPS)	Black		Board Edge Straddle Mount	Non Specified - Dual Edge	Dual	Female	Hairpin Bellows	Gold	2	-65 ░C	125 °C	Phosphor Bronze	50	1 mm	0.039 in	100	1.57 mm	0.062 in	Solder	0.25 Ám	10 Áin			Card Extender
Sullins Connector Solutions RBE50DHAS	Polyphenylene Sulfide (PPS)	Black	Side Mount Opening Unthreaded	Right Angle Through Hole	Non Specified - Dual Edge	Dual	Female	Hairpin Bellows	Gold	2	-65 ░C	125 °C	Phosphor Bronze	50	1 mm	0.039 in	100	1.57 mm	0.062 in	Solder Staggered	0.25 Ám	10 Áin	3.18 mm	0.125 "
Sullins Connector Solutions RBE50DHRT	Polyphenylene Sulfide (PPS)	Black	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	Non Specified - Dual Edge	Dual	Female	Hairpin Bellows	Gold	2	-65 ░C	125 °C	Phosphor Bronze	50	1 mm	0.039 in	100	1.57 mm	0.062 in	Solder	0.25 Ám	10 Áin			Card Extender
