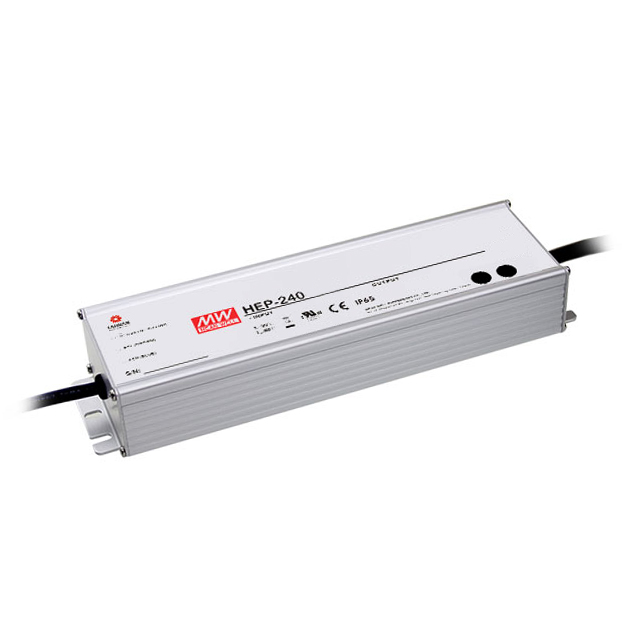

HEP-240 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 15V 225W
| Part | Minimum Load Required | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Features | Approval Agency | Efficiency | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Current - Output 1 | Mounting Type | Type | Voltage - Isolation | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1 | 90 VAC 127 VDC | 305 VAC 431 VDC | 244.2 mm | 2.68 in | 38.8 mm | 9.61 in | 68 mm | 1.53 in | 15 V | Adjustable Output IP65 PFC Universal Input | CB CE cURus | 90 % | 225 W | 70 °C | -55 °C | ITE (Commercial) | 15 A | Chassis Mount | Enclosed | 3750 VDC | ||
MEAN WELL USA Inc. | 1 | 90 VAC 127 VDC | 305 VAC 431 VDC | 244.2 mm | 2.68 in | 38.8 mm | 9.61 in | 68 mm | 1.53 in | 12 V | Adjustable Output IP65 PFC Universal Input | CB CE cURus | 90 % | 192 W | 70 °C | -55 °C | ITE (Commercial) | 16 A | Chassis Mount | Enclosed | 3750 VDC | ||
MEAN WELL USA Inc. | 1 | 90 VAC 127 VDC | 305 VAC 431 VDC | 244.2 mm | 2.68 in | 38.8 mm | 9.61 in | 68 mm | 1.53 in | 24 V | Adjustable Output IP65 PFC Universal Input | CB CE cURus | 93 % | 240 Watts | 70 °C | -55 °C | ITE (Commercial) | 10 A | Chassis Mount | Enclosed | 3750 VDC | ||
MEAN WELL USA Inc. | 1 | 90 VAC 127 VDC | 305 VAC 431 VDC | 244.2 mm | 2.68 in | 38.8 mm | 9.61 in | 68 mm | 1.53 in | Adjustable Output IP65 PFC Universal Input | CB CE cURus | 93 % | 241 W | 70 °C | -55 °C | ITE (Commercial) | 6.7 A | Chassis Mount | Enclosed | 3750 VDC | 36 V |
