053627 Series

Manufacturer: Molex

Catalog

CONN BOARD TO BOARD HDR 70 POS 0.635MM SOLDER ST SMD SLIMSTACK T/R

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Features	Number of Positions	Connector Type	Contact Finish	Mated Stacking Heights	Height Above Board	Height Above Board
Molex 0536270774	10 Áin	0.25 Ám	2	0.64 mm	0.025 in	Surface Mount	Board Guide Solder Retention	70	Outer Shroud Contacts Plug	Gold	10 mm 16 mm	9 mm	0.354 in

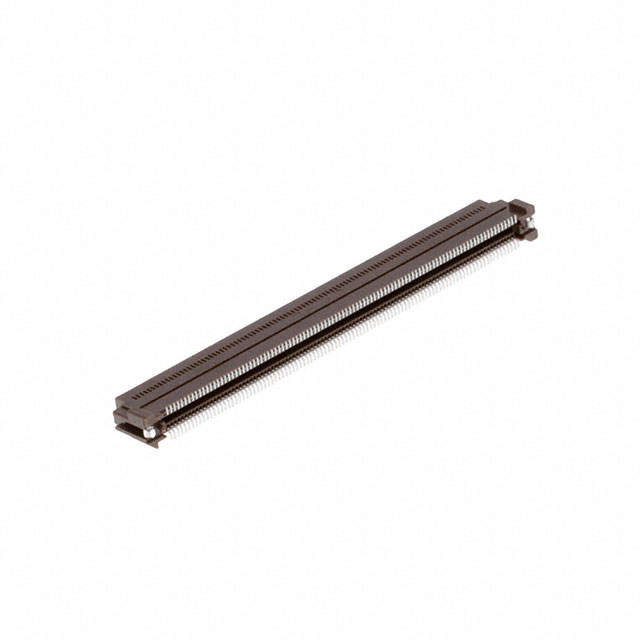

Molex 0536272074	10 Áin	0.25 Ám	2	0.64 mm	0.025 in	Surface Mount	Board Guide Solder Retention		Outer Shroud Contacts Plug	Gold	10 mm 16 mm	9 mm	0.354 in

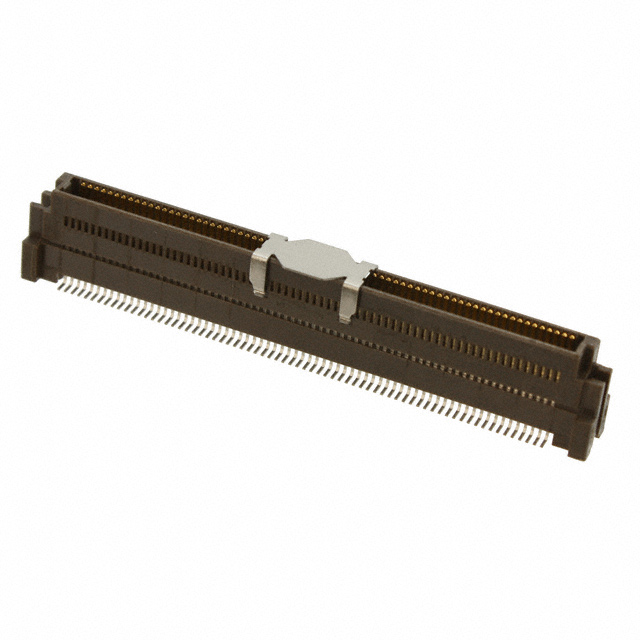

Molex 0536271474	10 Áin	0.25 Ám	2	0.64 mm	0.025 in	Surface Mount	Board Guide Solder Retention	140	Outer Shroud Contacts Plug	Gold	10 mm 16 mm	9 mm	0.354 in
