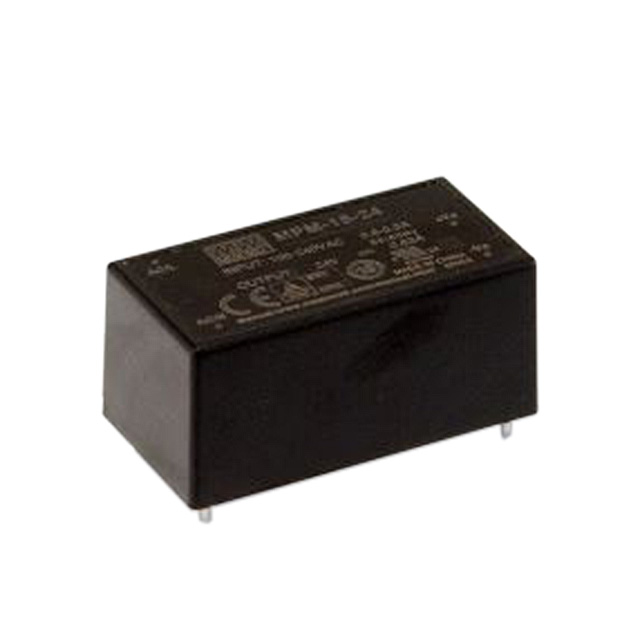

MPM-15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 15W
| Part | Line Regulation | Load Regulation | Number of Outputs | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 | Features | Current - Output (Max) [Max] | Approval Agency | Package / Case | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Applications | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 0.5 % | 0.5 % | 1 | 15 W | -40 °C | 85 °C | 80 VAC | 264 VAC | 5 V | Universal Input | 3 A | CB CE cURus EAC TUV | 4-DIP Module | Enclosed | 1.07 in | 0.94 " | 2.06 " | 27.2 mm | 52.4 mm | 24 mm | Through Hole | Household Appliances Medical | 85.5 % |
