172106 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

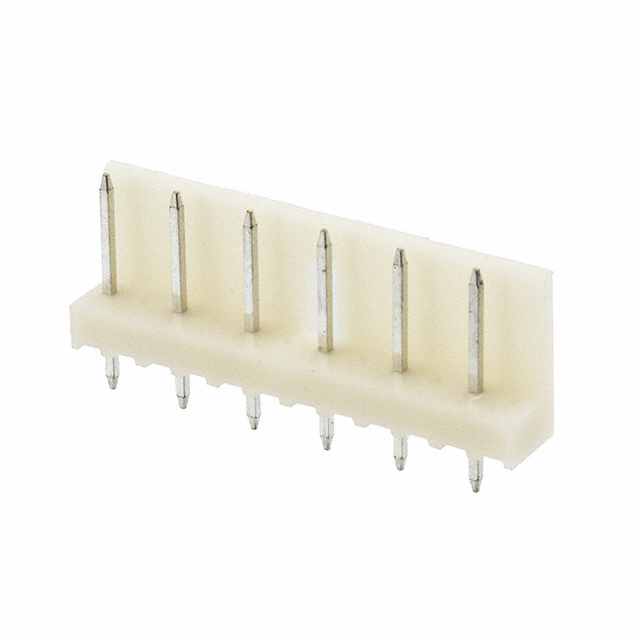

V-TYPE E.I.S CONN. 6P ASSY
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Fastening Type | Material Flammability Rating | Style | Contact Type | Number of Positions | Pitch - Mating | Pitch - Mating | Applications | Current Rating (Amps) | Insulation Color | Contact Material | Contact Shape | Connector Type | Contact Finish - Post | Shrouding | Contact Length - Mating | Contact Length - Mating | Insulation Material | Termination | Contact Length - Post | Contact Length - Post | Number of Rows | Overall Contact Length | Overall Contact Length | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 31.5 µin | 0.8 µm | Through Hole | Detent Lock | UL94 V-0 | Board to Cable/Wire | Male Pin | 6 | 5 mm | 0.197 " | General Purpose | 2 A | Natural | Brass | Square | Header | Tin | Shrouded - 1 Wall | 7.49 mm | 0.295 in | Polyamide (PA66) Nylon 6/6 | Solder | 3.6 mm | 0.142 in | 1 | 0.551 " | 14 mm | 250 VAC 350 V | 31.5 µin | 0.8 µm | All |
