ECG.2B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 18POS GOLD SLDR

Part	Current Rating (Amps)	Material Flammability Rating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insert Material	Shielding	Contact Finish - Mating	Primary Material	Shell Material	Shell Finish	Termination	Mounting Type	Mounting Feature	Color	Orientation [custom]	Number of Positions	Contact Material	Shell Size - Insert	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [custom]

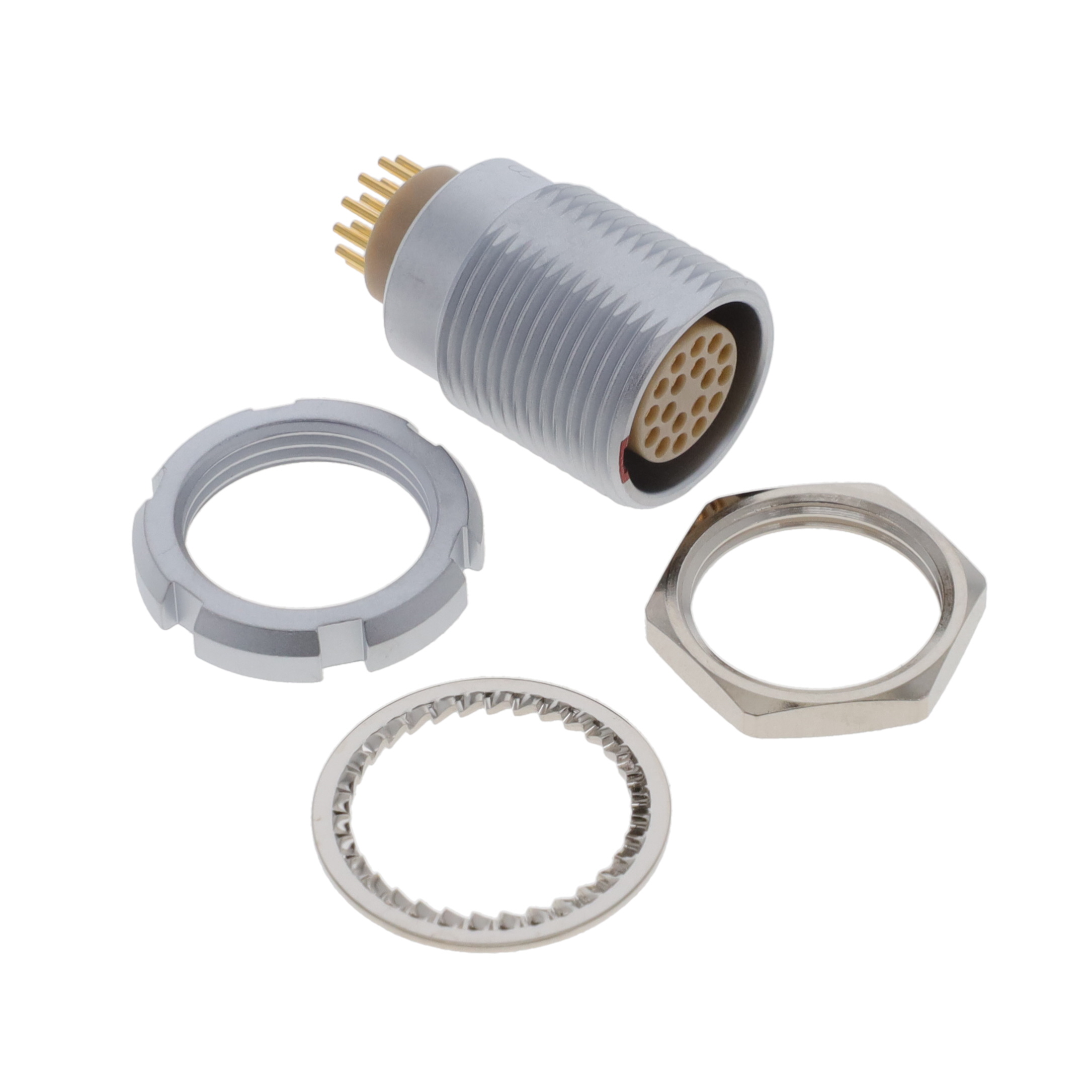

LEMO ECG.2B.318.CLN	5.5 Amps	UL94 V-0	IP50 - Dust Protected	-55 C	250 °C	318	Push-Pull	1.5 Ám	59 Áin	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Shielded	Gold	Metal	Brass	Chrome	Solder	Panel Mount Through Hole	Front and Rear Side Nut	Silver	G	18	Bronze
LEMO ECG.2B.318.CLV	5.5 Amps	UL94 V-0	IP50 - Dust Protected	-55 C	250 °C	318	Push-Pull	1.5 Ám	59 Áin	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Shielded	Gold	Metal	Brass	Chrome	Solder	Panel Mount Right Angle Through Hole	Front and Rear Side Nut	Silver	G	18	Bronze
LEMO ECG.2B.303.CLN	17 A	UL94 V-0	IP50 - Dust Protected	-55 C	250 °C	303	Push-Pull	1.5 Ám	59 Áin	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Shielded	Gold	Metal	Brass	Chrome	Solder	Panel Mount Through Hole	Front and Rear Side Nut	Silver	G		Bronze
LEMO ECG.2B.P13.CLL	6 A	UL94 V-0	IP50 - Dust Protected	-55 C	250 °C		Push-Pull			Receptacle Female Sockets	Polyetheretherketone (PEEK)	Shielded	Gold	Metal	Brass	Chrome		Panel Mount	Front and Rear Side Nut	Silver	G	7		P13
LEMO ECG.2B.305.CLL	14 A	UL94 V-0	IP50 - Dust Protected	-55 C	250 °C	305	Push-Pull	1.5 Ám	59 Áin	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Shielded	Gold	Metal	Brass	Chrome		Panel Mount	Front and Rear Side Nut	Silver	G	5	Bronze
LEMO ECG.2B.319.CYM	5 A	UL94 V-0	IP50 - Dust Protected	-55 C	250 °C	319	Push-Pull	1.5 Ám	59 Áin	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Shielded	Gold	Metal	Brass	Chrome	Crimp	Panel Mount	Front and Rear Side Nut	Silver	G	19	Bronze
LEMO ECG.2B.303.CLV	12 Amps	UL94 V-0	IP50 - Dust Protected	-55 C	250 °C	303	Push-Pull	1.5 Ám	59 Áin	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Shielded	Gold	Metal	Brass	Chrome	Solder	Panel Mount Right Angle Through Hole	Front and Rear Side Nut	Silver	G		Bronze
LEMO ECG.2B.308.CLN	10 A	UL94 V-0	IP50 - Dust Protected	-55 C	250 °C	308	Push-Pull	1.5 Ám	59 Áin	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Shielded	Gold	Metal	Brass	Chrome	Solder	Panel Mount Through Hole	Front and Rear Side Nut	Silver	G	8	Bronze
LEMO ECG.2B.806.CLL3	7 A	UL94 V-0	IP50 - Dust Protected	-55 C	250 °C	806	Push-Pull			Receptacle Female Sockets	Polyetheretherketone (PEEK)	Shielded	Gold	Metal	Brass	Chrome		Panel Mount	Front and Rear Side Nut	Silver	G	1 6
LEMO ECG.2B.015.CLL		UL94 V-0	IP50 - Dust Protected	-55 C	250 °C		Push-Pull			Receptacle Female Sockets	Polyetheretherketone (PEEK)	Shielded	Gold	Metal	Brass	Chrome		Panel Mount	Front and Rear Side Nut	Silver	G				10	1	15
