EFM-260 Series
Manufacturer: East Electronics
Beta
⌘K
BUZZER 12V 26MM TH
| Part | Voltage Range [Max] | Voltage Range [Min] | Current - Supply | Frequency | Sound Pressure Level (SPL) | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Mode | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage - Rated | Termination | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

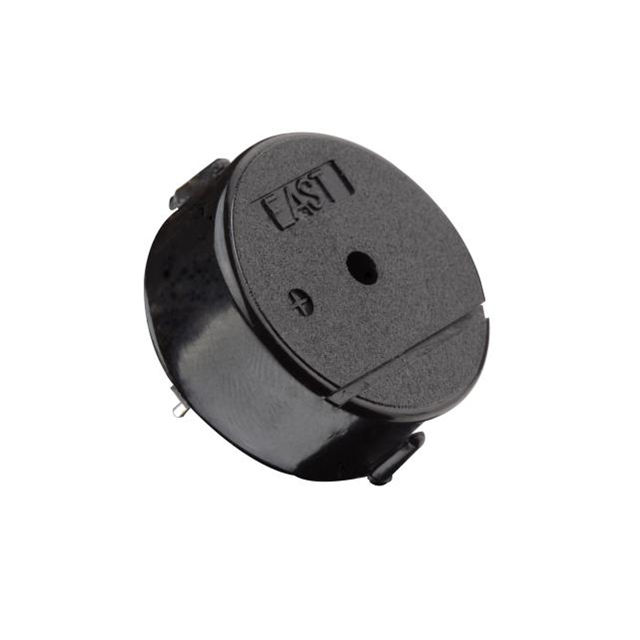

 East Electronics | 24 V | 3 V | 15 mA | 3 kHz | 85 dB | -20 ░C | 70 °C | 10.7 mm | 0.421 " | Continuous | Through Hole | 1.024 in | 26 mm | 12 VDC | PC Pins | |

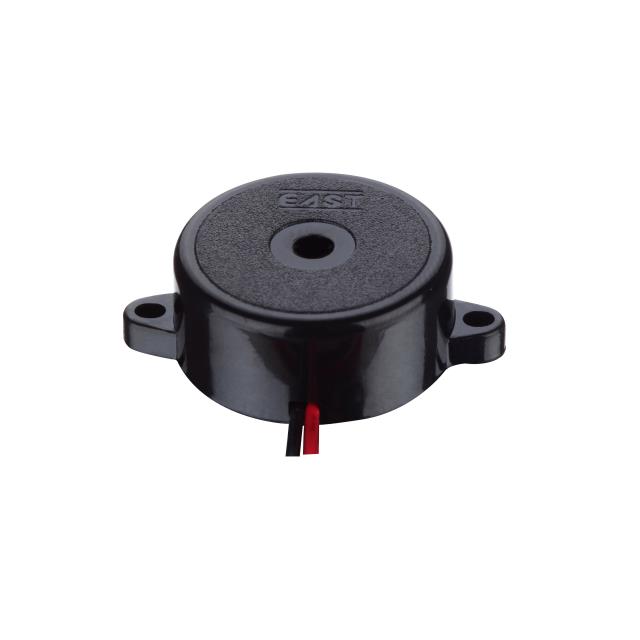

 East Electronics | 24 V | 3 V | 10 mA | 3.5 kHz | 85 dB | -20 ░C | 70 °C | 0.386 in | Continuous | Wire Lead | 1.26 in | 32 mm | 12 VDC | Wire Leads | 9.8 mm |
