MP62550 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
CURRENT LIMIT SW 1-IN 1-OUT 2.5V TO 5.5V 1.5A 6-PIN TQFN EP T/R
| Part | Output Type | Current - Output (Max) [Max] | Interface | Rds On (Typ) | Number of Outputs | Ratio - Input:Output | Output Configuration | Supplier Device Package | Switch Type | Voltage - Supply (Vcc/Vdd) | Operating Temperature [Max] | Operating Temperature [Min] | Fault Protection | Mounting Type | Features | Voltage - Load [Min] | Voltage - Load [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

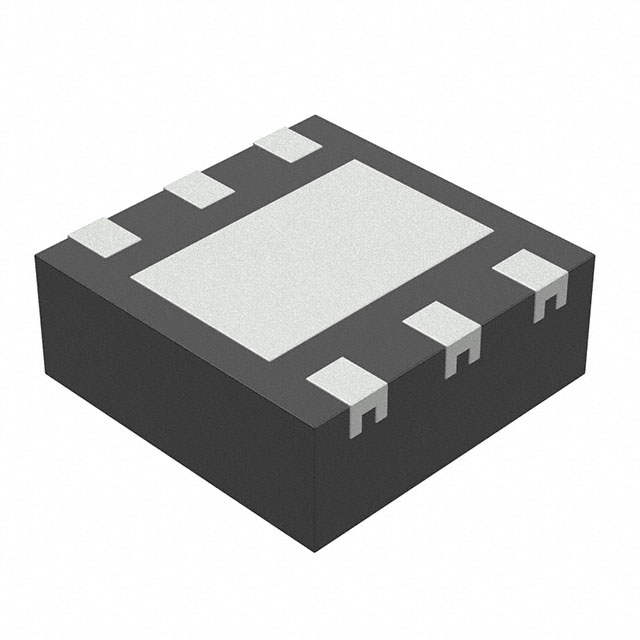

 Monolithic Power Systems Inc. | N-Channel | 1.5 A | On/Off | 100 mOhm | 1 | 1:1 | High Side | 6-TQFN (2x2) | General Purpose | Not Required | 85 C | -40 ¯C | Current Limiting (Adjustable) Over Temperature UVLO | Surface Mount | Slew Rate Controlled Status Flag | 2.5 V | 5.5 V | |
Monolithic Power Systems Inc. | N-Channel | 1.5 A | On/Off | 100 mOhm | 1 | 1:1 | High Side | 6-TQFN (2x2) | General Purpose | Not Required | 85 C | -40 ¯C | Current Limiting (Adjustable) Over Temperature UVLO | Surface Mount | Slew Rate Controlled Status Flag | 2.5 V | 5.5 V | |
 Monolithic Power Systems Inc. | N-Channel | 1.5 A | On/Off | 100 mOhm | 1 | 1:1 | High Side | TSOT-23-6 | General Purpose | Not Required | 85 C | -40 ¯C | Current Limiting (Adjustable) Over Temperature UVLO | Surface Mount | Slew Rate Controlled Status Flag | 2.5 V | 5.5 V | SOT-23-6 Thin TSOT-23-6 |
