567-006 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN HDR HSG 6POS 5.00MM
| Part | Note | Contact Type | Color | Connector Type | Pitch | Pitch | Insulation Material | Number of Rows [custom] | Fastening Type | Contact Termination | Mounting Type | Row Spacing | Row Spacing | Features | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

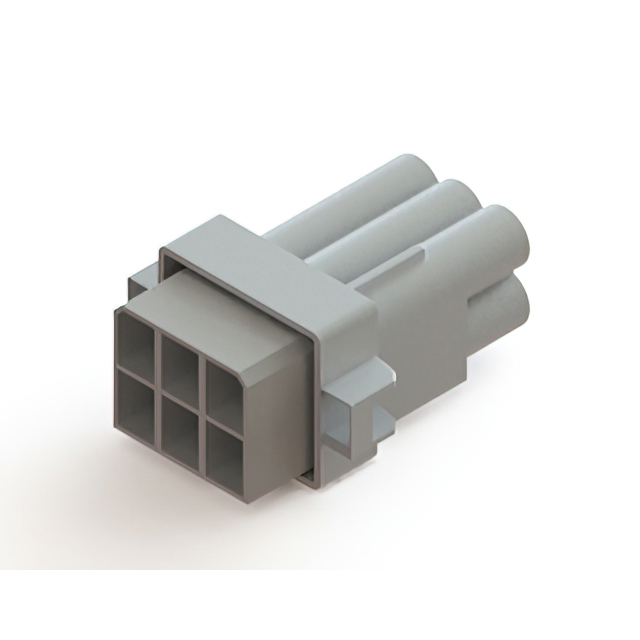

 EDAC Inc. | Contacts Not Included | Male Pin | White | Header | 0.197 in | 5 mm | Polybutylene Terephthalate (PBT) | 2 | Latch Holder | Crimp | Free Hanging (In-Line) | 5.9 mm | 0.232 in | Waterproof | 6 | -40 C | 105 ░C |

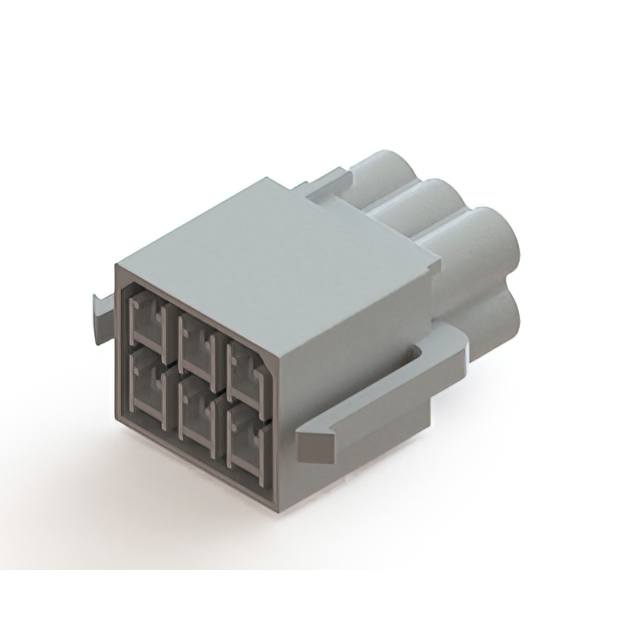

 EDAC Inc. | Contacts Not Included | Female Socket | White | Receptacle | 0.197 in | 5 mm | Polybutylene Terephthalate (PBT) | 2 | Latch Lock | Crimp | Free Hanging (In-Line) | 5.9 mm | 0.232 in | Waterproof | 6 | -40 C | 105 ░C |
