45454 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

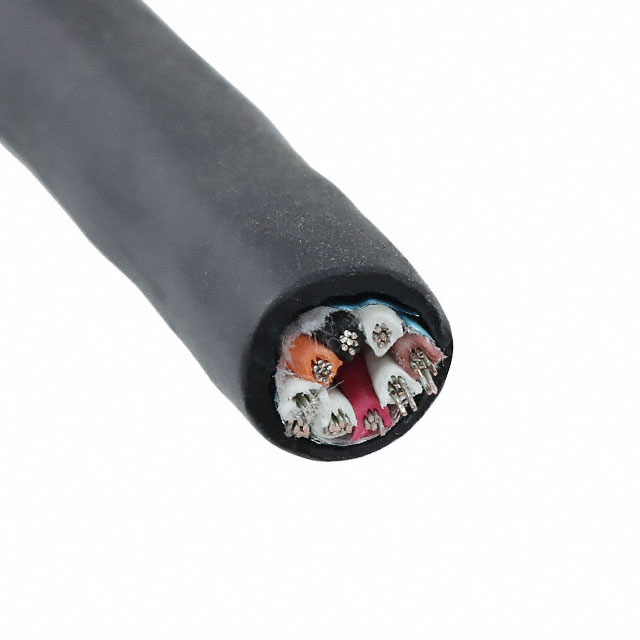

MULTI-PAIR 8COND 20AWG BLK 1000'
| Part | Shield Coverage | Shield Material | Shield Type | Voltage | Number of Conductors | Jacket Color | Ratings | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Features | Length | Length | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Insulation | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Foil | 300 VDC | 8 | Black | ISO 10993 | Copper Tinned | 1.143 mm | 0.045 in | 125 °C | -50 °C | 0.376 in | 9.55 mm | Thermoplastic Elastomer (TPE) | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | 20 AWG | 28 AWG | 7 | TPE | Thermoplastic Elastomer | Multi-Pair |
ALPHA WIRE | 100 % | Aluminum | Foil | 300 VDC | 8 | Black | ISO 10993 | Copper Tinned | 1.143 mm | 0.045 in | 125 °C | -50 °C | 0.376 in | 9.55 mm | Thermoplastic Elastomer (TPE) | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | 20 AWG | 28 AWG | 7 | TPE | Thermoplastic Elastomer | Multi-Pair |
 ALPHA WIRE | 100 % | Aluminum | Foil | 300 VDC | 8 | Slate | ISO 10993 | Copper Tinned | 1.143 mm | 0.045 in | 125 °C | -50 °C | 0.376 in | 9.55 mm | Thermoplastic Elastomer (TPE) | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | 20 AWG | 28 AWG | 7 | TPE | Thermoplastic Elastomer | Multi-Pair |
