098266 Series

Manufacturer: Molex

Catalog

Catalog

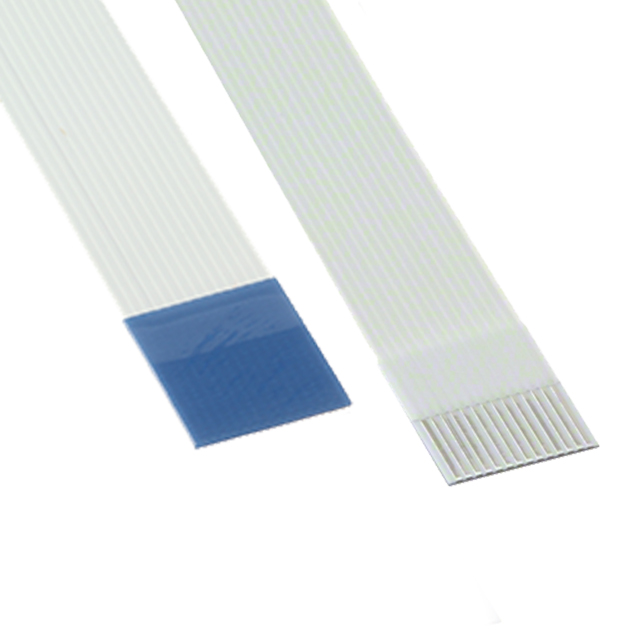

CABLE FFC/FPC 9POS 0.5MM 12"

...

Part	Length	Length [x]	Number of Conductors	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Termination Style	Length
Molex 0982660787	304.8 mm	12 in	9	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides
Molex 0982661054	50.8 mm		35	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Top on One Side Bottom on Other Backers on Both Sides	2 in
Molex 0982660957	203.2 mm		25	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	8 in
Molex 0982660435	152.4 mm		40	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	6 in
Molex 0982660160	304.8 mm	12 in	14	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Top on One Side Bottom on Other Backers on Both Sides
Molex 0982660414	152.4 mm		38	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Top on One Side Bottom on Other Backers on Both Sides	6 in
Molex 0982660809	304.8 mm	12 in	11	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides
Molex 0982660872	254 mm	10 in	17	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Top on One Side Bottom on Other Backers on Both Sides
Molex 0982660185	50.8 mm		18	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	2 in
Molex 0982660838	101.6 mm		15	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Top on One Side Bottom on Other Backers on Both Sides	4 in
