003900 Series
Manufacturer: Molex
Beta
⌘K

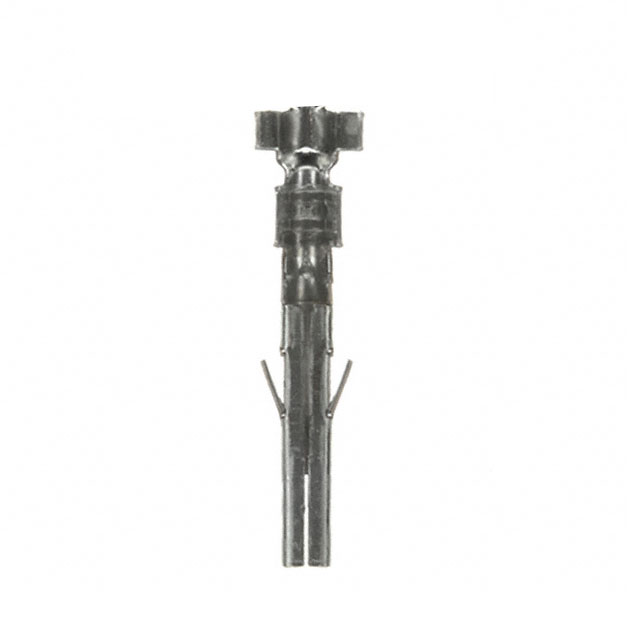

CONN SOCKET 22-28AWG CRIMP GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Pin or Socket | Contact Termination | Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|
 Molex | 13.8 µin | 0.35 µm | 22 AWG | 28 AWG | Gold | Socket | Crimp | ||
 Molex | 35.4 µin | 0.9 µm | 22 AWG | 28 AWG | Tin | Socket | Crimp | ||
 Molex | Tin | Socket | Crimp | Power | 16 AWG | ||||
 Molex | 17.5 AWG | 24 AWG | Tin | Pin | Crimp | Power | |||
 Molex | 22 AWG | 28 AWG | Tin | Socket | Crimp | ||||
Molex | 30 Áin | 0.76 Ám | 22 AWG | 28 AWG | Gold | Pin | Crimp | Power | |
Molex | |||||||||
 Molex | 100 µin | 2.54 µm | Tin | Socket | Crimp | Power | 16 AWG | ||
Molex | 30 Áin | 0.76 Ám | 22 AWG | 28 AWG | Gold | Pin | Crimp | Power | |
 Molex | 100 µin | 2.54 µm | 17.5 AWG | 24 AWG | Tin | Pin | Crimp | Power |
