79224 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

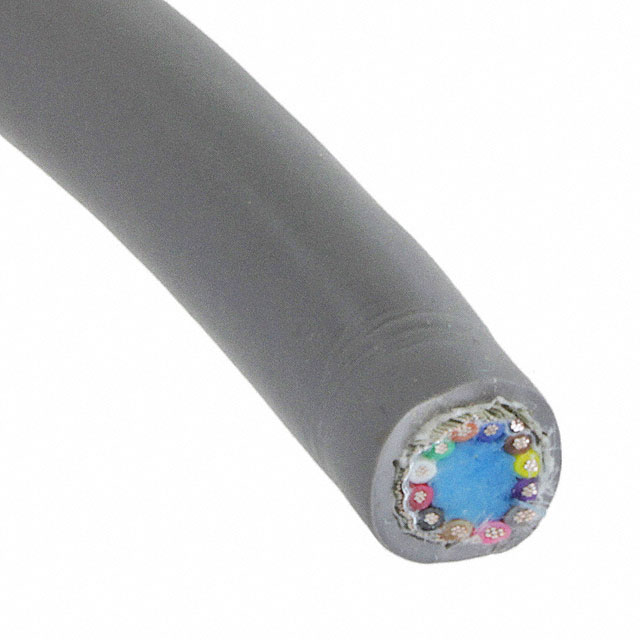

CBL 12COND 16AWG SHLD 1000=1000'
| Part | Conductor Material | Shield Material | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Jacket Color | Ratings | Shield Type | Wire Gauge | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Shield Coverage | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Features | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | Copper Tinned Suprashield® | 12 | -40 °C | 105 ░C | Polyphenylene Ether Modified (mPPE) | Slate | ISO 10993 | Braid Foil | 16 AWG | 600 V | 0.443 in | 11.25 mm | Multi-Conductor | 70 % 100 % | Polyphenylene Ether Modified (mPPE) | 0.889 mm | 0.035 in | 30 AWG | 26 | Biological Compatibility | ||||
ALPHA WIRE | Copper Tinned | Copper Tinned Suprashield® | 12 | -40 °C | 105 ░C | Polyphenylene Ether Modified (mPPE) | Slate | ISO 10993 | Braid Foil | 16 AWG | 600 V | 0.443 in | 11.25 mm | Multi-Conductor | 70 % 100 % | Polyphenylene Ether Modified (mPPE) | 0.889 mm | 0.035 in | 30 AWG | 26 | Biological Compatibility | 1000 ft | 304.8 m | ||
ALPHA WIRE | Copper Tinned | Copper Tinned Suprashield® | 12 | -40 °C | 105 ░C | Polyphenylene Ether Modified (mPPE) | Slate | ISO 10993 | Braid Foil | 16 AWG | 600 V | 0.443 in | 11.25 mm | Multi-Conductor | 70 % 100 % | Polyphenylene Ether Modified (mPPE) | 0.889 mm | 0.035 in | 30 AWG | 26 | Biological Compatibility | 30.5 m | 100 ft |
