328975 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN RING CIRC 22AWG #1/2 CRIMP
| Part | Contact Finish | Mounting Type | Terminal Type | Thickness | Thickness | Insulation | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Material | Termination | Wire Gauge | Features | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Color | Length - Overall [x] | Length - Overall [x] | Material - Insulation | Insulation Diameter [Min] | Insulation Diameter [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

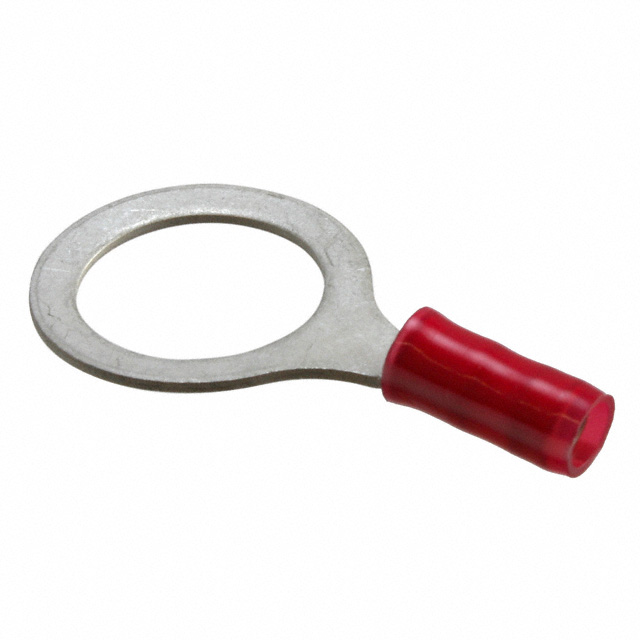

 TE Connectivity Raychem Cable Protection | Tin | Free Hanging (In-Line) | Circular | 0.031 in | 0.79 mm | Insulated | 1/2 Stud | 0.713 " | 18.11 mm | Copper | Crimp | 22 AWG | Insulation Restriction Serrated Termination | 0.11 in | 2.79 mm | 0.97 mm | 0.038 in | Red Green Stripe | 1.355 in | 34.42 mm | Nylon Polyamide (PA) | ||

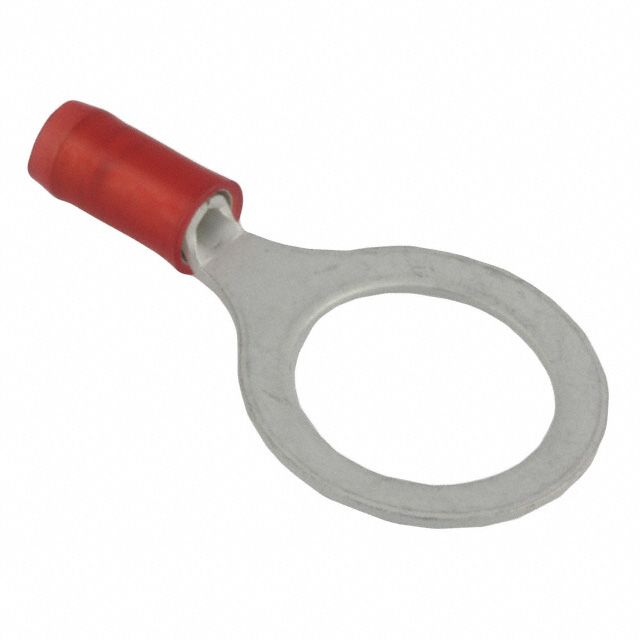

 TE Connectivity Raychem Cable Protection | Tin | Free Hanging (In-Line) | Circular | 0.031 in | 0.79 mm | Insulated | 1/2 Stud | 0.713 " | 18.11 mm | Copper | Crimp | 18 AWG | Insulation Restriction Serrated Termination | 2.79 mm | 1.42 mm | Red White Stripe | 1.355 in | 34.42 mm | Nylon Polyamide (PA) | 0.056 in | 0.11 in |
