717-046 Series
Manufacturer: EDAC Inc.
Beta
⌘K

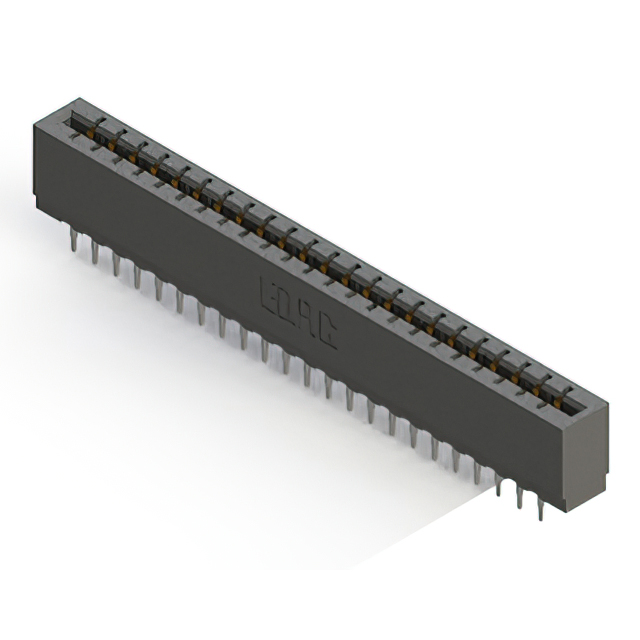

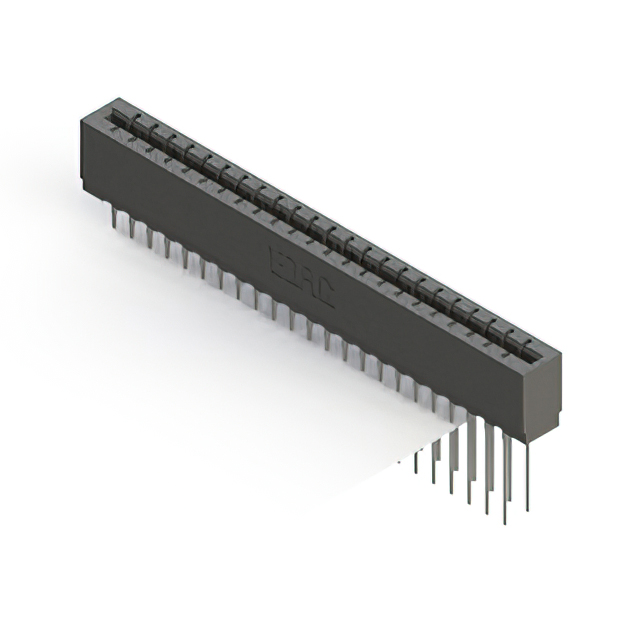

CONN EDGE DUAL FMALE 46POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Number of Rows [custom] | Contact Type | Card Type | Read Out | Mounting Type | Gender | Termination | Contact Finish | Contact Material | Color | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Pitch | Pitch | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Cantilever | Non Specified - Dual Edge | Dual | Through Hole | Female | Press-Fit | Gold | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 30 Áin | 0.76 Ám | 46 | 3.96 mm | 0.156 in | 23 |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Cantilever | Non Specified - Dual Edge | Dual | Through Hole | Female | Press-Fit | Gold | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 30 Áin | 0.76 Ám | 46 | 3.96 mm | 0.156 in | 23 |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Cantilever Make Before Break | Non Specified - Dual Edge | Dual | Through Hole | Female | Press-Fit | Gold | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 30 Áin | 0.76 Ám | 46 | 3.96 mm | 0.156 in | 23 |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Cantilever | Non Specified - Dual Edge | Dual | Through Hole | Female | Press-Fit | Gold | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 30 Áin | 0.76 Ám | 46 | 3.96 mm | 0.156 in | 23 |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Cantilever | Non Specified - Dual Edge | Dual | Through Hole | Female | Press-Fit Wire Wrap | Gold | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 30 Áin | 0.76 Ám | 46 | 3.96 mm | 0.156 in | 23 |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Cantilever | Non Specified - Dual Edge | Dual | Through Hole | Female | Press-Fit Wire Wrap | Gold | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 30 Áin | 0.76 Ám | 46 | 3.96 mm | 0.156 in | 23 |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Cantilever | Non Specified - Dual Edge | Dual | Through Hole | Female | Press-Fit Wire Wrap | Gold | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 30 Áin | 0.76 Ám | 46 | 3.96 mm | 0.156 in | 23 |
