HDC HE Series

Heavy Duty Power Connectors H32A-SGR-2PG21

Manufacturer: TE Connectivity AMP Connectors

Catalog

Heavy Duty Power Connectors H32A-SGR-2PG21

Catalog

Heavy Duty Power Connectors H32A-SGR-2PG21

...

Part	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Contact Finish	Contact Termination	Wire Gauge	Gender	Current Rating (Amps)	Connector Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination Style	Size	Number of Positions	Contact Type	Housing Material	Material Flammability Rating	Color
TE Connectivity AMP Connectors T2030001002-000	78.7 µin	2 µm	26 AWG	22 AWG	Pin	Silver	Crimp
TE Connectivity AMP Connectors T2030002008-000					Socket	Silver	Crimp	18 AWG

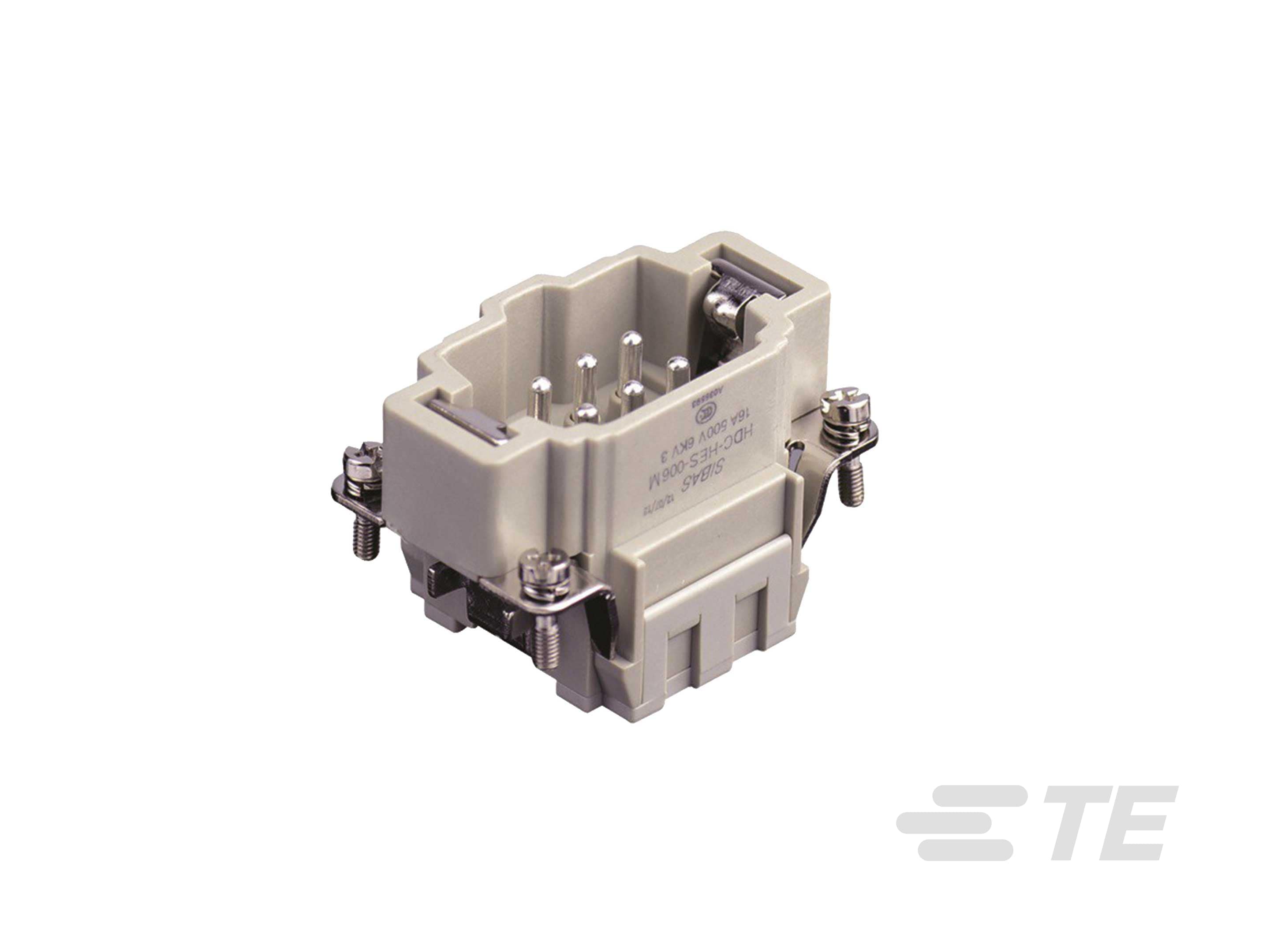

TE Connectivity AMP Connectors T2040063101-001									Male	16 A	Insert without Contacts	500 V	125 °C	-40 C	6	Crimp
TE Connectivity AMP Connectors T2059202201-000									Female	16 A	Insert without Contacts	400 V	125 °C	-40 C		Crimp	H6B	20+Ground	CEF DEF
TE Connectivity AMP Connectors T2040162201-001									Female	16 A	Insert	500 V	125 °C	-40 C		Screw	H16B	16+Ground		Polycarbonate (PC)	UL94 V-0
TE Connectivity AMP Connectors T2050102101-000									Male	16 A	Insert without Contacts	500 V				Crimp	H6B	10+Ground	CEM DEM	Polycarbonate (PC)	UL94 V-0
TE Connectivity AMP Connectors T2030001040-000	78.7 µin	2 µm			Pin	Silver	Crimp	12 AWG
TE Connectivity AMP Connectors T2040102101-001									Male	16 A	Insert	500 V	125 °C	-40 C		Screw	H10B	10+Ground		Polycarbonate (PC)	UL94 V-0
TE Connectivity AMP Connectors T2059643101-000									Male	16 A	Insert without Contacts	500 V	125 °C	-40 C		Crimp	H24B	64+Ground	CEM DEM

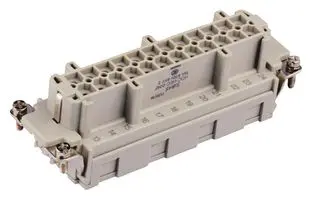

TE Connectivity AMP Connectors T2040244201-000									Female	16 A	Insert without Contacts	500 V	125 °C	-40 C		Crimp	H24B		CE DE	Polycarbonate (PC)	UL94 V-0	Gray
