Fixed Terminal Blocks 2P 5.08mm 90DEG
Fixed Terminal Blocks 2P 5.08mm 90DEG
| Part | Screw Thread | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Torque - Screw [Max] | Housing Material | Pitch | Pitch | Features | Current | Number of Levels | Positions Per Level | Voltage | Mating Orientation | Mounting Type | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

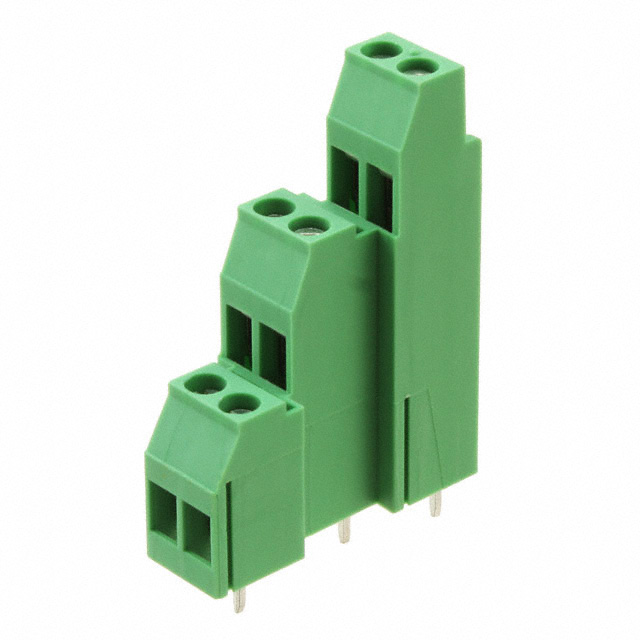

 Phoenix Contact | M3 | 0.6 Nm | 4.4 Lb-In | 0.5 Nm | 5.3 Lb-In | Polyamide (PA) Nylon | 5.08 mm | 0.2 in | Interlocking (Side) | 20 A | 3 | 2 | 300 VDC | Horizontal with Board | Through Hole | Screw - Rising Cage Clamp | 30 AWG | 12 AWG | Green |
 Phoenix Contact | 5.08 mm | 0.2 in | Interlocking (Side) | 10 A | 3 | 3 | 300 VDC | Horizontal with Board | Through Hole | Screw - Rising Cage Clamp | 30 AWG | 14 AWG | Green Yellow |
