AYF531435 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

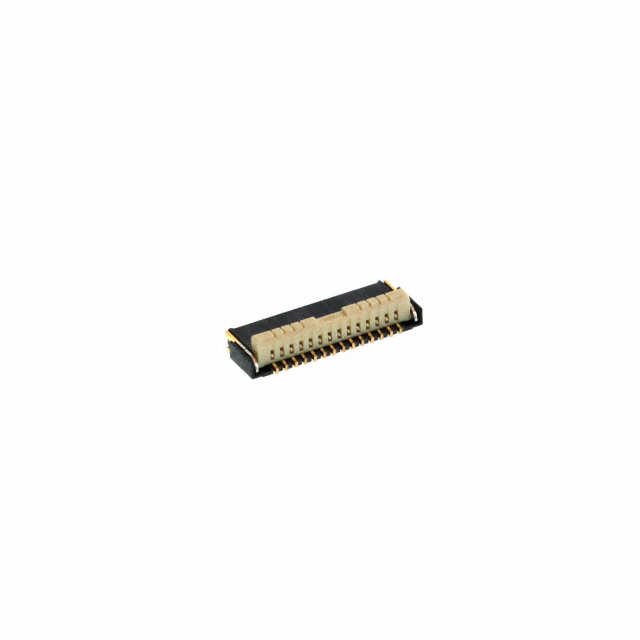

CONN FFC FPC 14POS 0.5MM R/A
| Part | Contact Finish Thickness | Mating Cycles | Current Rating (Amps) | Mounting Type | Contact Finish | Pitch | Pitch | Flat Flex Type | Cable End Type | Connector/Contact Type | Material Flammability Rating | Voltage Rating | FFC, FCB Thickness | Number of Positions | Housing Material | Termination | Actuator Material | Height Above Board [z] | Height Above Board [z] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Locking Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Flash | 20 | 500 mA | Right Angle Surface Mount | Gold | 0.02 " | 0.5 mm | FFC FPC | Tapered | Contacts Top and Bottom | UL94 V-0 | 50 V | 0.3 mm | 14 | Liquid Crystal Polymer (LCP) | Solder | Liquid Crystal Polymer (LCP) | 1 mm | 0.039 " | Copper Alloy | -55 C | 85 °C | Backlock Flip Lock |
