JS0404FP Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Length	Length	Electrical Life	Body Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Current Rating (Amps)	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mounting Type	Actuator Level	Actuator Type	Circuit	Number of Positions	Voltage Rating	Pitch	Pitch	Pitch

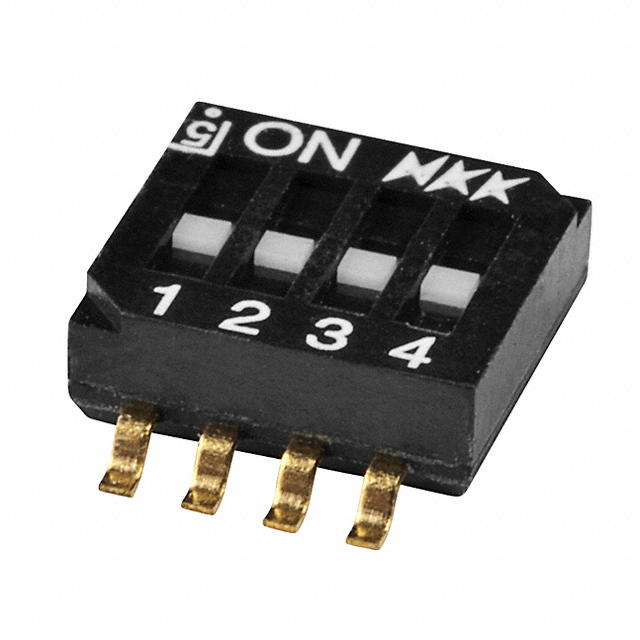

NKK Switches JS0404FP4	2000 Cycles	6.22 mm	0.245 in	2000 Steps	Polyamide (PA) Nylon Glass Filled	Copper Alloy	85 °C	-30 ░C	Gull Wing	25 mA	Gold	2.2 mm	0.087 in	Surface Mount	Flush Recessed	Slide (Standard)	SPST	4	24 VDC	0.05 "	1.27 mm	Half
NKK Switches JS0404FP4-R	2000 Cycles	6.22 mm	0.245 in	2000 Steps	Polyamide (PA) Nylon Glass Filled	Copper Alloy	85 °C	-30 ░C	Gull Wing	25 mA	Gold	2.2 mm	0.087 in	Surface Mount	Flush Recessed	Slide (Standard)	SPST	4	24 VDC	0.05 "	1.27 mm	Half
NKK Switches JS0404FP4-S	2000 Cycles	6.22 mm	0.245 in	2000 Steps	Polyamide (PA) Nylon Glass Filled	Copper Alloy	85 °C	-30 ░C	Gull Wing	25 mA	Gold	2.2 mm	0.087 in	Surface Mount	Flush Recessed	Slide (Standard)	SPST	4	24 VDC	0.05 "	1.27 mm	Half
