VLMR51 Series
Manufacturer: Vishay Semiconductor Opto Division
Beta
⌘K

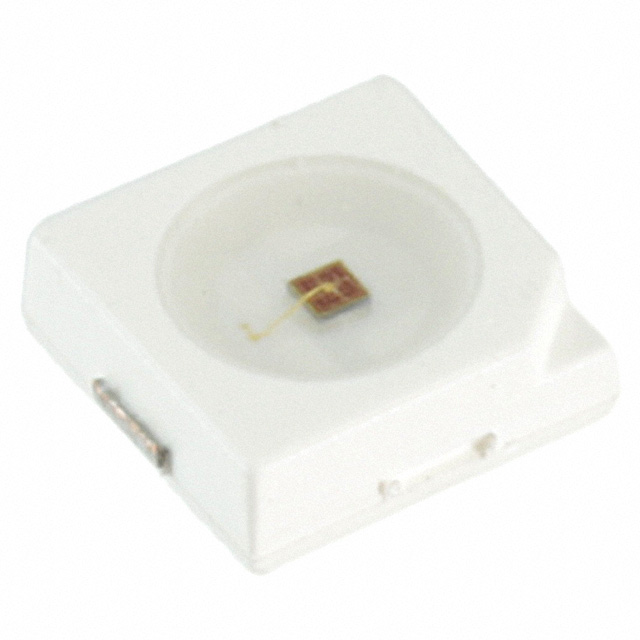

LED MINI PWR RED 2PLCC
| Part | Current - Max [Max] | Package / Case | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Thermal Resistance of Package | Viewing Angle | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lumens/Watt @ Current - Test | Mounting Type | Wavelength | Wavelength [Max] | Wavelength [Min] | Color | Supplier Device Package | Luminous Flux @ Current/Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Semiconductor Opto Division | 200 mA | 1414 (3535 Metric) | 140 mA | 25 °C | 2.2 V | 50 °C/W | 120 ° | 0.138 in | 0.138 in | 3.5 mm | 3.5 mm | 0.055 in | 1.4 mm | 65 lm/W | Surface Mount | 625 nm | 630 nm | 620 nm | Red | 2-PLCC | 20 lm |
