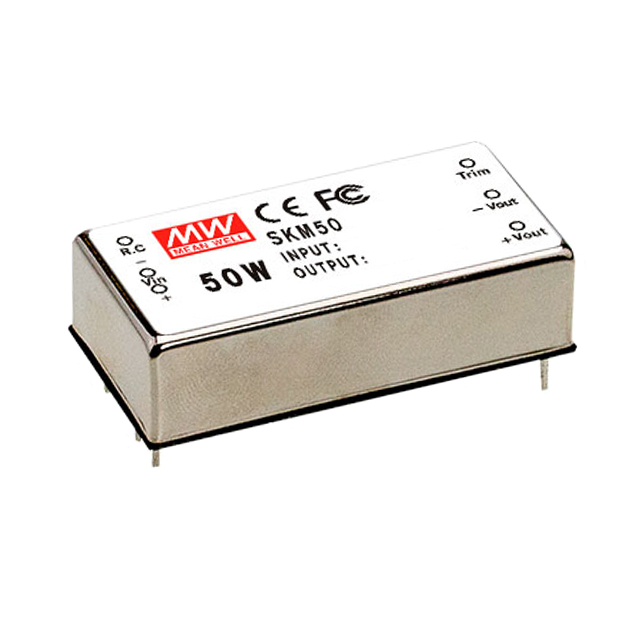

SKM50 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 12V 50W
| Part | Package / Case | Mounting Type | Power (Watts) | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Features | Voltage - Output 1 | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Voltage - Isolation | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 6-DIP Module | Through Hole | 50 W | 4.17 A | 36 V | OCP OVP Remote On/Off SCP | 12 V | ITE (Commercial) | 50.8 mm | 25.4 mm | 13.7 mm | 2 in | 0.54 " | 1 " | 75 V | 1.5 kV | 91 % | 75 °C | -40 °C | 1 | Isolated Module |
MEAN WELL USA Inc. | 6-DIP Module | Through Hole | 50 W | 3.33 A | 36 V | OCP OVP Remote On/Off SCP | 15 V | ITE (Commercial) | 50.8 mm | 25.4 mm | 13.7 mm | 2 in | 0.54 " | 1 " | 75 V | 1.5 kV | 91 % | 75 °C | -40 °C | 1 | Isolated Module |
