BT2S Series

Catalog

CABLE TIE, DOME TOP® BARB TY, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 203 MM, 4.7 MM, 51 MM, 50 LB

Part	Length - Approximate	Width [y]	Width [y]	Shelf Life Start	Material	Wire/Cable Tie Type	Shelf Life	Color	Mounting Type	Length - Actual	Length - Actual	Length - Actual	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Features	Tensile Strength	Tensile Strength
Panduit Corp BT2S-M0	8 in	0.185 in	4.7 mm	Date of Manufacture	Polyamide (PA66) Nylon 6/6	Locking Standard	48 Months	Black	Free Hanging (In-Line)	0.667 ft	203.2 mm	8 in	50.8 mm	2 in	Weather Resistant	22.68 kg	50 lbs
Panduit Corp BT2S-M54/N

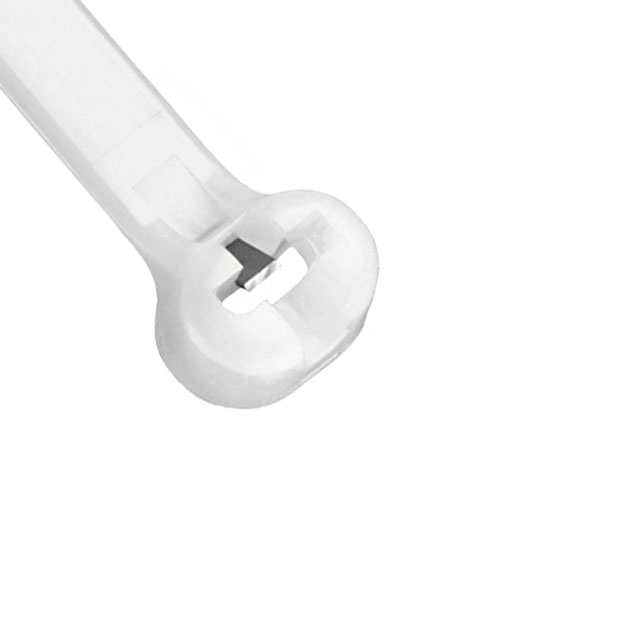

Panduit Corp BT2S-M10	8 in	0.185 in	4.7 mm	Date of Manufacture	Polyamide (PA66) Nylon 6/6	Locking Standard	48 Months	White	Free Hanging (In-Line)	0.667 ft	203.2 mm	8 in	50.8 mm	2 in		22.68 kg	50 lbs

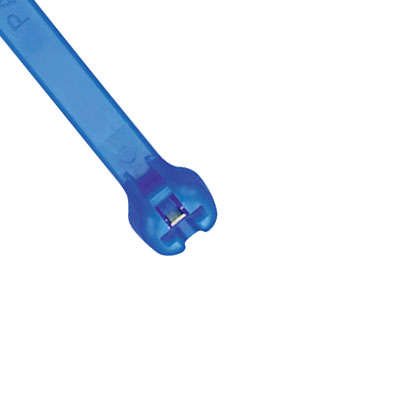

Panduit Corp BT2S-M6	8 in	0.185 in	4.7 mm	Date of Manufacture	Polyamide (PA66) Nylon 6/6	Locking Standard	48 Months	Blue	Free Hanging (In-Line)	0.667 ft	203.2 mm	8 in	50.8 mm	2 in		22.68 kg	50 lbs
Panduit Corp BT2S-C0	8 in	0.185 in	4.7 mm	Date of Manufacture	Polyamide (PA66) Nylon 6/6	Locking Standard	48 Months	Black	Free Hanging (In-Line)	0.667 ft	203.2 mm	8 in	50.8 mm	2 in	Weather Resistant	22.68 kg	50 lbs
Panduit Corp BT2S-M2	8 in	0.185 in	4.7 mm	Date of Manufacture	Polyamide (PA66) Nylon 6/6	Locking Standard	48 Months	Red	Free Hanging (In-Line)	0.667 ft	203.2 mm	8 in	50.8 mm	2 in		22.68 kg	50 lbs

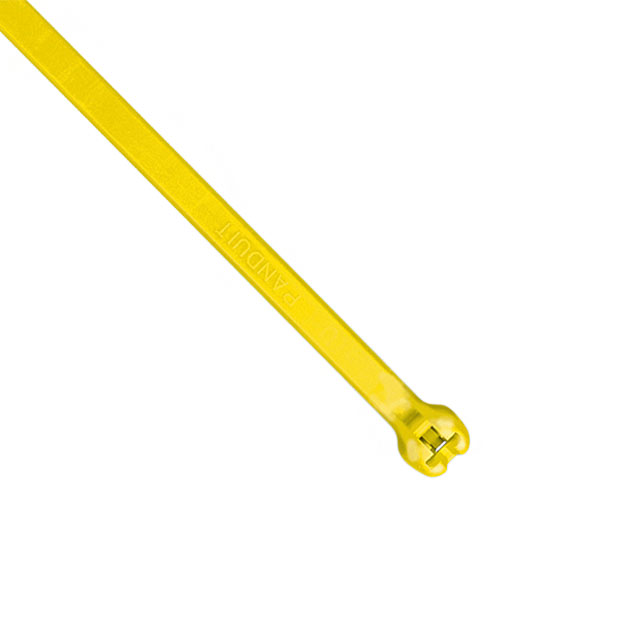

Panduit Corp BT2S-M4	8 in	0.185 in	4.7 mm		Polyamide (PA66) Nylon 6/6	Locking Standard		Yellow	Free Hanging (In-Line)	0.667 ft	203.2 mm	8 in	50.8 mm	2 in		22.68 kg	50 lbs
Panduit Corp BT2S-M8	8 in	0.185 in	4.7 mm	Date of Manufacture	Polyamide (PA66) Nylon 6/6	Locking Standard	48 Months	Gray	Free Hanging (In-Line)	0.667 ft	203.2 mm	8 in	50.8 mm	2 in		22.68 kg	50 lbs
Panduit Corp BT2S-C	8 in	0.185 in	4.7 mm	Date of Manufacture	Polyamide (PA66) Nylon 6/6	Locking Standard	48 Months	Natural	Free Hanging (In-Line)	0.667 ft	203.2 mm	8 in	50.8 mm	2 in		22.68 kg	50 lbs
Panduit Corp BT2S-M4Y	8 in	0.185 in	4.7 mm	Date of Manufacture	Polyamide (PA66) Nylon 6/6	Locking Standard	48 Months	Yellow	Free Hanging (In-Line)	0.667 ft	203.2 mm	8 in	50.8 mm	2 in		22.68 kg	50 lbs
