CBL CLAMP P-TYPE NAT FASTENER

Part	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Material	Panel Hole Size	Panel Hole Size	Type	Width [y]	Width [y]	Material Flammability Rating	Opening Size	Opening Size	Mounting Type	Color	Material Thickness	Material Thickness	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Bundle Center to Mounting Center [custom]	Bundle Center to Mounting Center [custom]

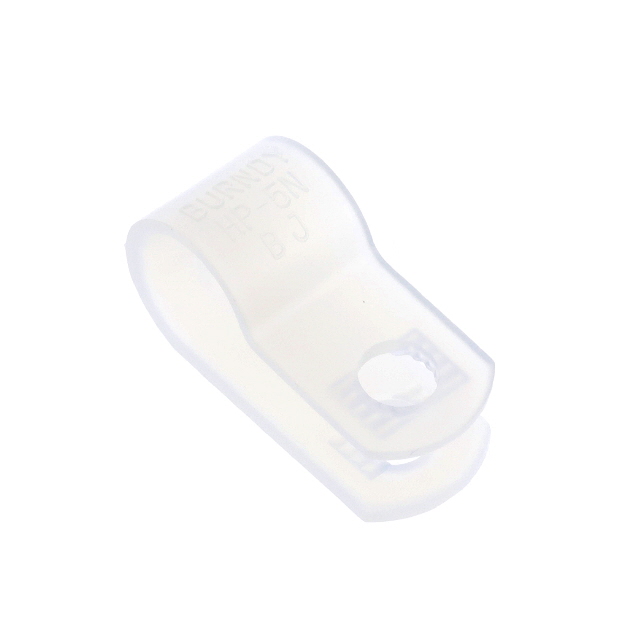

Amphenol ICC (FCI) HP-5N	11.9 mm	0.469 in	Polyamide (PA66) Nylon 6/6	4.4 mm	0.173 in	Clamp P-Type	9.5 mm	0.374 in	UL94 V-2	8.38 mm	0.33 in	Fastener	Natural	0.045 in	1.15 mm
Amphenol ICC (FCI) HP-2N			Polyamide (PA66) Nylon 6/6	4.4 mm	0.173 in	Clamp P-Type	9.5 mm	0.374 in	UL94 V-2	3.3 mm	0.13 "	Fastener	Natural	0.045 in	1.15 mm	0.374 in	9.5 mm
Amphenol ICC (FCI) HP-3N			Polyamide (PA66) Nylon 6/6	4.4 mm	0.173 in	Clamp P-Type	9.5 mm	0.374 in	UL94 V-2	5.3 mm	0.209 in	Fastener	Natural	0.045 in	1.15 mm			10.31 mm	0.406 "
Amphenol ICC (FCI) HP-8N	14.3 mm	0.563 in	Polyamide (PA66) Nylon 6/6	4.4 mm	0.173 in	Clamp P-Type	9.5 mm	0.374 in	UL94 V-2	13.2 mm	0.519 in	Fastener	Natural	0.045 in	1.15 mm
