50M050080 Series

Catalog

MACH SCREW FLAT PHILLIPS M5X0.8

...

Part	Head Diameter [diameter]	Head Diameter [diameter]	Drive Type	Screw Head Type	Material	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Length - Overall [x]	Length - Overall [x]	Type	Head Diameter	Head Diameter	Head Diameter	Head Height	Head Height	Length - Overall	Length - Overall
Essentra Components 50M050080I040	10.4 mm	0.409 in	Phillips	Flat Head	Nylon	1.575 in	40 mm	M5x0.8	1.681 in	42.7 mm	Machine Screw
Essentra Components 50M050080N025			Slotted	Pan Head	Nylon	0.984 in	25 mm	M5x0.8			Machine Screw	0.374 in	9.5 mm	3/8
Essentra Components 50M050080G025			Phillips	Pan Head	Nylon	0.984 in	25 mm	M5x0.8			Machine Screw				3.1 mm	0.122 "	1.106 in	28.1 mm
Essentra Components 50M050080D010		0.335 in	Slotted	Cheese Head	Nylon	0.394 in	10 mm	M5x0.8	0.524 in	13.3 mm	Bolt		8.5 mm		3.3 mm	0.13 "
Essentra Components 50M050080G010			Phillips	Pan Head	Nylon	0.394 in	10 mm	M5x0.8	0.516 in	13.1 mm	Machine Screw				3.1 mm	0.122 "

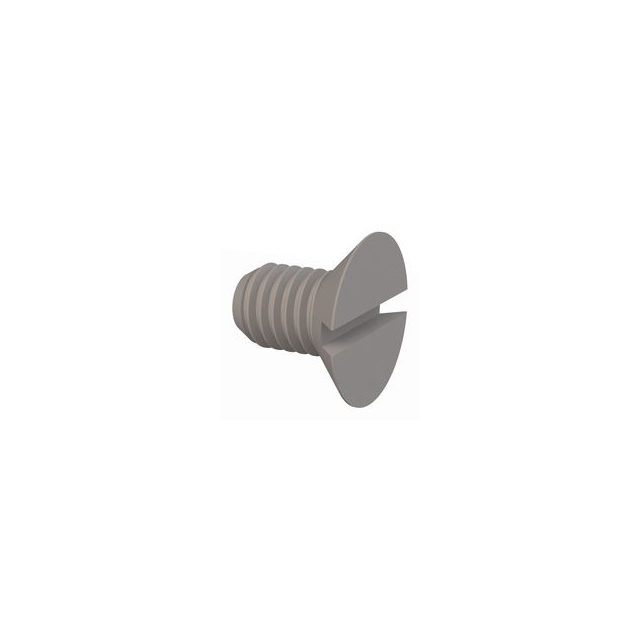

Essentra Components 50M050080H008	10.4 mm	0.409 in	Slotted	Flat Head	Nylon	0.315 in	8 mm	M5x0.8	0.421 in	10.7 mm	Machine Screw
Essentra Components 50M050080I025	10.4 mm	0.409 in	Phillips	Flat Head	Nylon	0.984 in	25 mm	M5x0.8	1.091 in	27.7 mm	Machine Screw

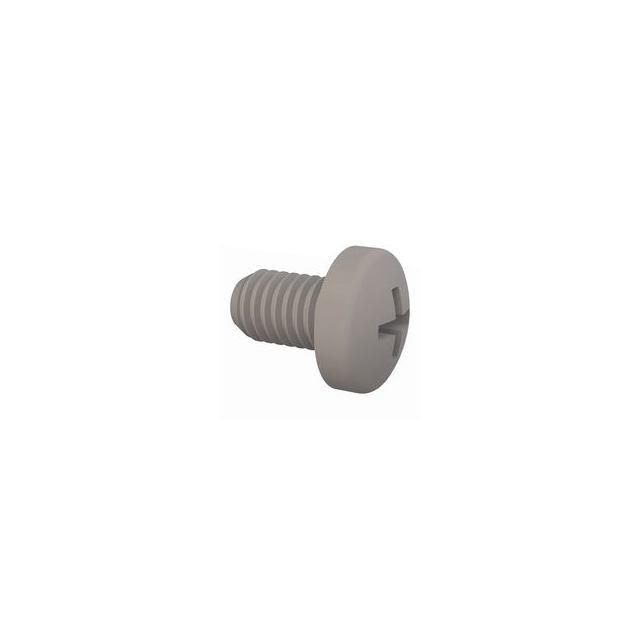

Essentra Components 50M050080P008			Phillips	Pan Head	Nylon	0.315 in	8 mm	M5x0.8			Machine Screw	0.374 in	9.5 mm	3/8			0.461 in	11.7 mm
Essentra Components 50M050080I030	10.4 mm	0.409 in	Phillips	Flat Head	Nylon			M5x0.8	1.287 in	32.7 mm	Machine Screw
Essentra Components 50M050080K035			Slotted	Hex Head	Nylon			M5x0.8			Bolt
