8579-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Length - Overall [x]	Length - Overall [x]	Contact Finish	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 8579-0-15-01-11-14-10-0	-55 C	125 °C	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	0.031 in	0.79 mm	1.02 mm	0.04 in	1.4 mm	0.055 in	0.25 Ám	10 Áin	No Tail	5.94 mm	0.234 in	Gold
Mill-Max Manufacturing Corp. 8579-0-15-80-11-14-10-0	-55 C	125 °C	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	0.031 in	0.79 mm	1.02 mm	0.04 in	1.4 mm	0.055 in	0.25 Ám	10 Áin	No Tail	5.94 mm	0.234 in	Gold
Mill-Max Manufacturing Corp. 8579-0-15-01-21-02-10-0	-55 C	125 °C	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	0.031 in	0.79 mm	1.02 mm	0.04 in	1.4 mm	0.055 in	2.54 µm	100 µin	No Tail	5.94 mm	0.234 in	Tin-Lead

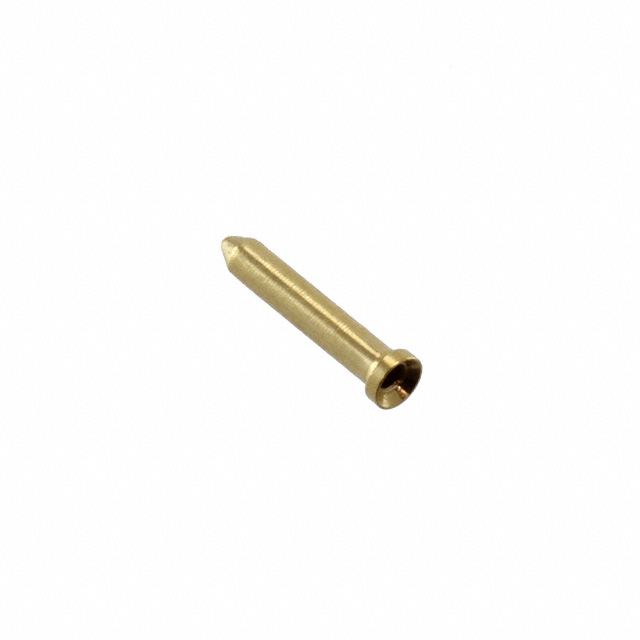

Mill-Max Manufacturing Corp. 8579-0-15-15-21-27-10-0	-55 C	125 °C	Beryllium Copper	0.022 in	0.38 mm	0.015 "		Solder	0.031 in	0.79 mm	1.02 mm	0.04 in	1.4 mm	0.055 in	0.76 Ám	30 Áin	No Tail	5.94 mm	0.234 in	Gold	0.56 mm
Mill-Max Manufacturing Corp. 8579-0-15-80-21-14-10-0	-55 C	125 °C	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	0.031 in	0.79 mm	1.02 mm	0.04 in	1.4 mm	0.055 in	0.25 Ám	10 Áin	No Tail	5.94 mm	0.234 in	Gold
Mill-Max Manufacturing Corp. 8579-0-15-01-21-14-10-0	-55 C	125 °C	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	0.031 in	0.79 mm	1.02 mm	0.04 in	1.4 mm	0.055 in	0.25 Ám	10 Áin	No Tail	5.94 mm	0.234 in	Gold
Mill-Max Manufacturing Corp. 8579-0-15-80-21-27-10-0	-55 C	125 °C	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	0.031 in	0.79 mm	1.02 mm	0.04 in	1.4 mm	0.055 in	0.76 Ám	30 Áin	No Tail	5.94 mm	0.234 in	Gold

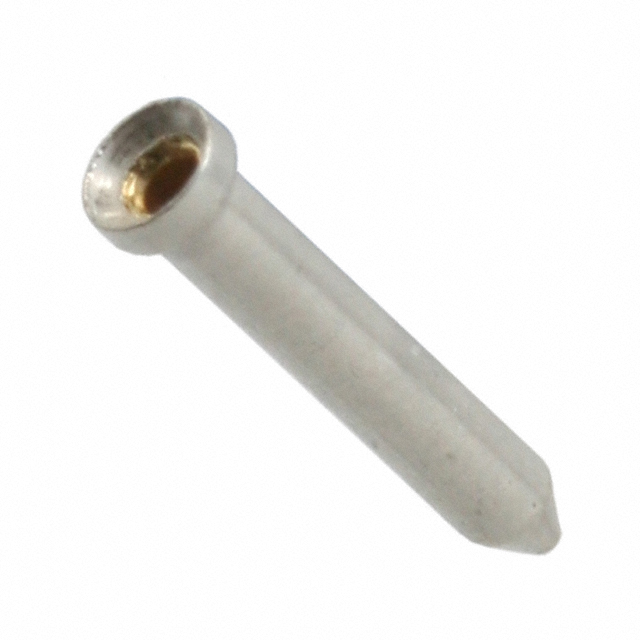

Mill-Max Manufacturing Corp. 8579-0-15-01-11-27-10-0	-55 C	125 °C	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	0.031 in	0.79 mm	1.02 mm	0.04 in	1.4 mm	0.055 in	0.76 Ám	30 Áin	No Tail	5.94 mm	0.234 in	Gold
Mill-Max Manufacturing Corp. 8579-0-15-15-21-14-10-0	-55 C	125 °C	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	0.031 in	0.79 mm	1.02 mm	0.04 in	1.4 mm	0.055 in	0.25 Ám	10 Áin	No Tail	5.94 mm	0.234 in	Gold
