VF30100 Series

Catalog

DIODE ARR SCHOTT 100V ITO220AB

Part	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Technology	Mounting Type	Diode Configuration	Speed	Current - Average Rectified (Io) (per Diode)	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io)

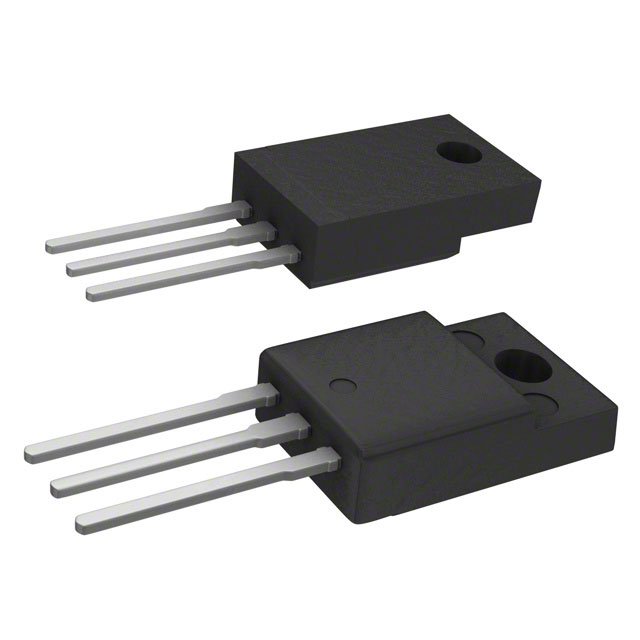

Vishay General Semiconductor - Diodes Division VF30100C-E3/4W	ITO-220AB	100 V	-40 °C	150 °C	800 mV	500 µA	Schottky	Through Hole	1 Pair Common Cathode	200 mA 500 ns	15 A	TO-220-3 Full Pack Isolated Tab
Vishay General Semiconductor - Diodes Division VF30100S-E3/45	ITO-220AB	100 V	-40 °C	150 °C		1 mA	Schottky	Through Hole		200 mA 500 ns		TO-220-3 Full Pack Isolated Tab	910 mV	30 A
Vishay General Semiconductor - Diodes Division VF30100SG-E3/45	ITO-220AB	100 V	-40 °C	150 °C		350 µA	Schottky	Through Hole		200 mA 500 ns		TO-220-3 Full Pack Isolated Tab	1 V	30 A
Vishay General Semiconductor - Diodes Division VF30100C-M3/4W	ITO-220AB	100 V	-40 °C	150 °C	800 mV	500 µA	Schottky	Through Hole	1 Pair Common Cathode	200 mA 500 ns	15 A	TO-220-3 Full Pack Isolated Tab
