RER-S4 Series
Manufacturer: Dinkle Corporation, USA
Beta
⌘K
RELAY GEN PURPOSE SPDT 5A 230V
| Part | Coil Resistance | Operate Time | Coil Type | Coil Voltage | Contact Form | Coil Current | Must Release Voltage | Features | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Switching Voltage [Max] | Mounting Type | Contact Material | Release Time | Relay Type | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

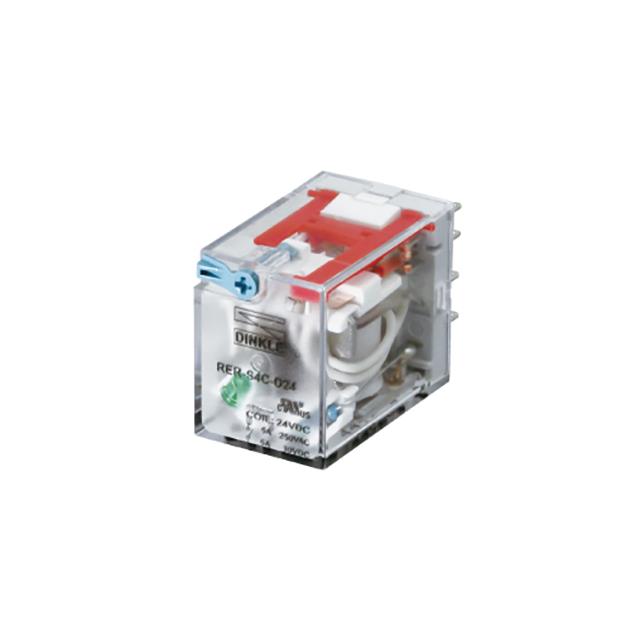

 Dinkle Corporation, USA | 4.43 kOhms | 20 ms | Non Latching | 230 VAC | 4PDT (4 Form C) | 5.5 mA | 69 VAC | Lighted Indicator | 184 VAC | -55 C | 70 °C | 30 VDC 250 VAC | Socketable | Silver Nickel (AgNi) | 20 ms | General Purpose | 5 A |

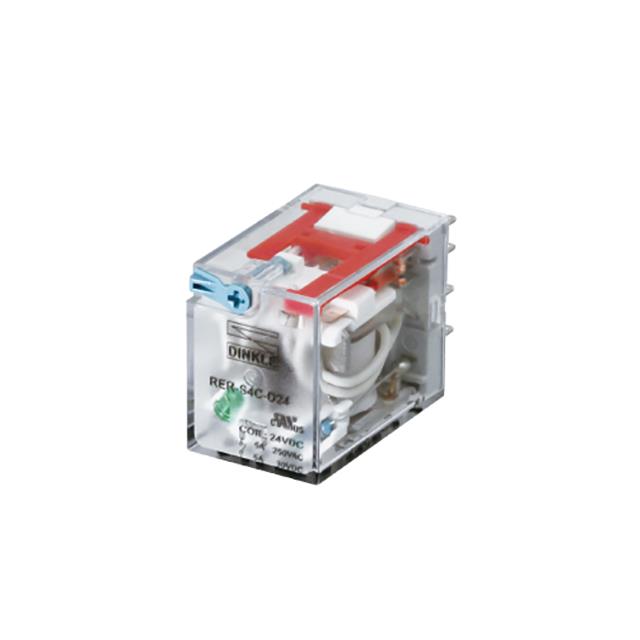

 Dinkle Corporation, USA | 4.43 kOhms | 20 ms | Non Latching | 120 VAC | 4PDT (4 Form C) | 9.2 mA | 36 VAC | Lighted Indicator | 96 VAC | -55 C | 70 °C | 30 VDC 250 VAC | Socketable | Silver Nickel (AgNi) | 20 ms | General Purpose | 5 A |

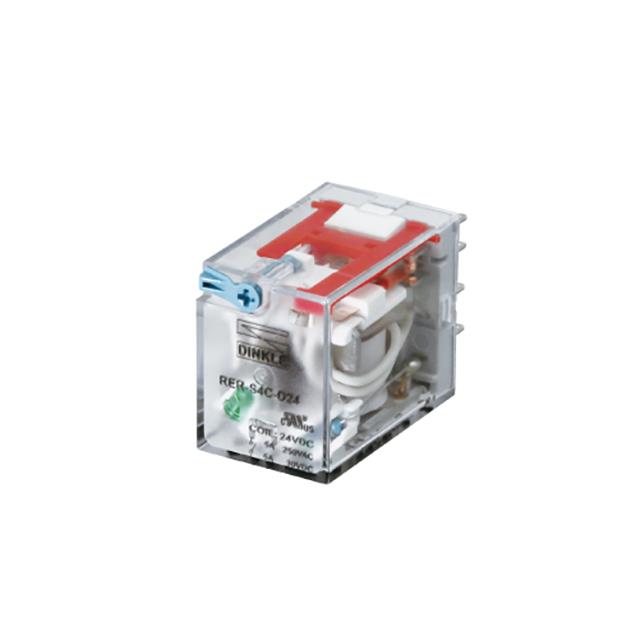

 Dinkle Corporation, USA | 640 Ohms | 20 ms | Non Latching | 24 VDC | 4PDT (4 Form C) | 36.9 mA | 2.4 VDC | Lighted Indicator | 18 VDC | -55 C | 70 °C | 30 VDC 250 VAC | Socketable | Silver Nickel (AgNi) | 20 ms | General Purpose | 5 A |
