ZSS-125 Series

Catalog

CONN HDR .100" 50POS

...

Part	Contact Material	Contact Type	Current Rating (Amps)	Contact Finish - Post	Number of Positions	Shrouding	Contact Finish - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Termination	Mounting Type	Contact Shape	Number of Rows	Material Flammability Rating	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Material	Style	Overall Contact Length	Overall Contact Length	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post	Contact Length - Post

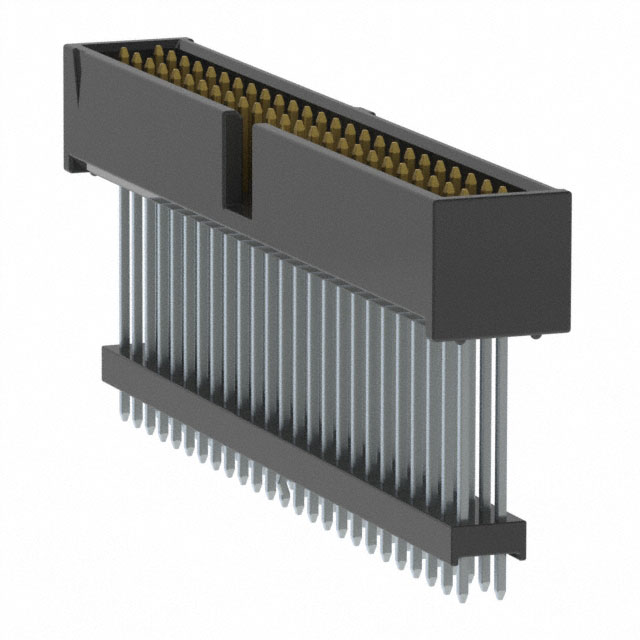

Samtec Inc. ZSS-125-05-S-D-940-LL

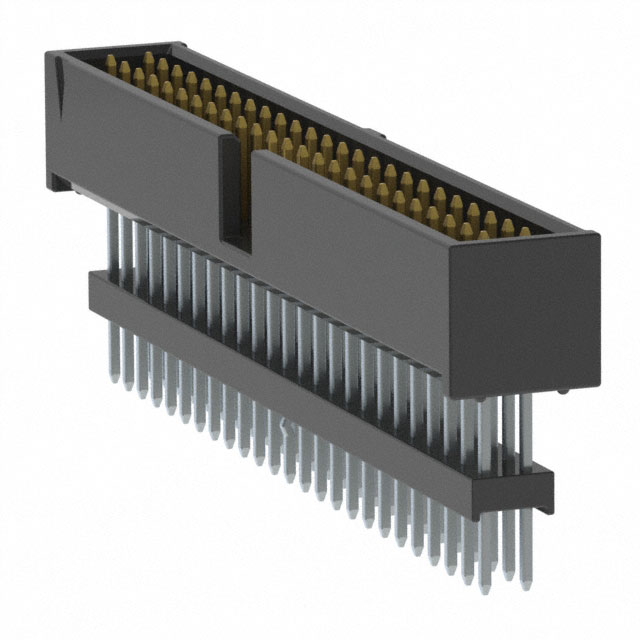

Samtec Inc. ZSS-125-03-L-D-688-LL

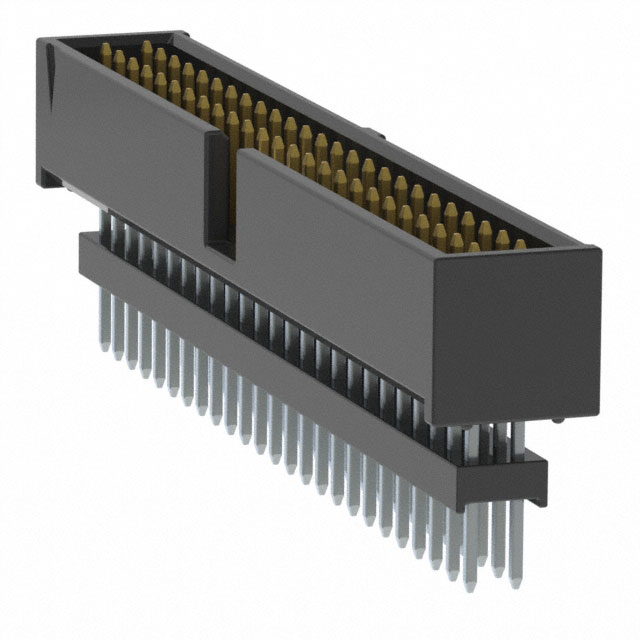

Samtec Inc. ZSS-125-02-L-D-523
Samtec Inc. ZSS-125-01-F-D-465	Phosphor Bronze	Male Pin	3 A	Tin	50	Shrouded - 4 Wall	Gold	Push-Pull	6.35 mm	0.25 in	-55 °C	125 °C	Keying Slot	Elevated Header	0.165 in	4.19 mm	All	0.1 in	2.54 mm	Black	3 µin	0.076 µm	2.54 mm	0.1 in	0.465 in	11.81 mm	Solder	Through Hole	Square	2	UL94 V-0	0.63 "	16 mm	Polyester Glass Filled	Board to Board Cable
Samtec Inc. ZSS-125-02-L-D-591

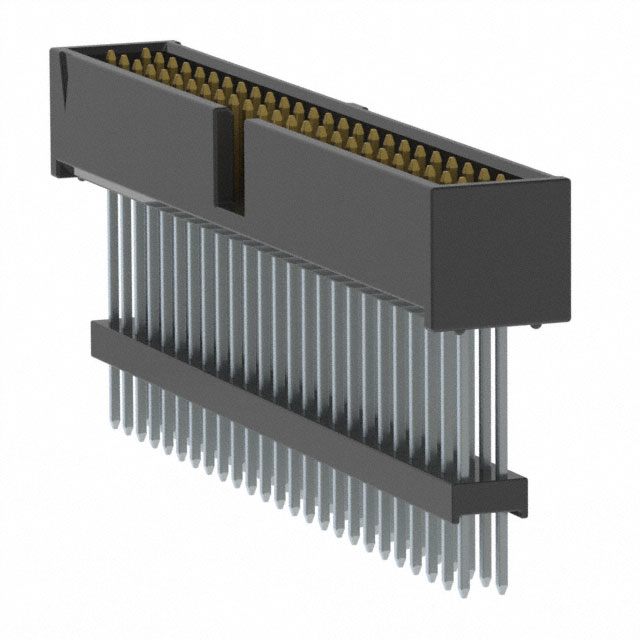

Samtec Inc. ZSS-125-05-S-D-840	Phosphor Bronze	Male Pin	3 A	Tin	50	Shrouded - 4 Wall	Gold	Push-Pull	6.35 mm	0.25 in	-55 °C	125 °C	Keying Slot	Elevated Header			All	0.1 in	2.54 mm	Black	30 Áin	0.76 Ám	2.54 mm	0.1 in			Solder	Through Hole	Square	2	UL94 V-0			Polyester Glass Filled	Board to Board Cable	1.03 in	26.16 mm	0.84 in	21.34 mm	4.83 mm	0.19 in

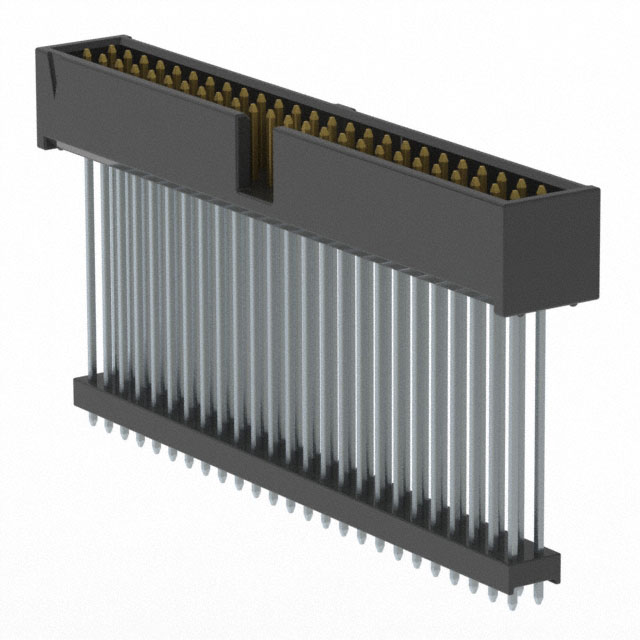

Samtec Inc. ZSS-125-08-S-D-1240-LL

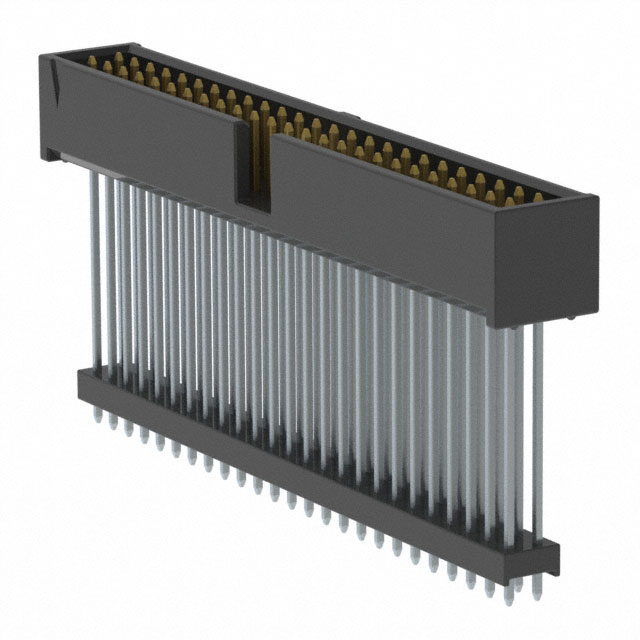

Samtec Inc. ZSS-125-07-S-D-1115

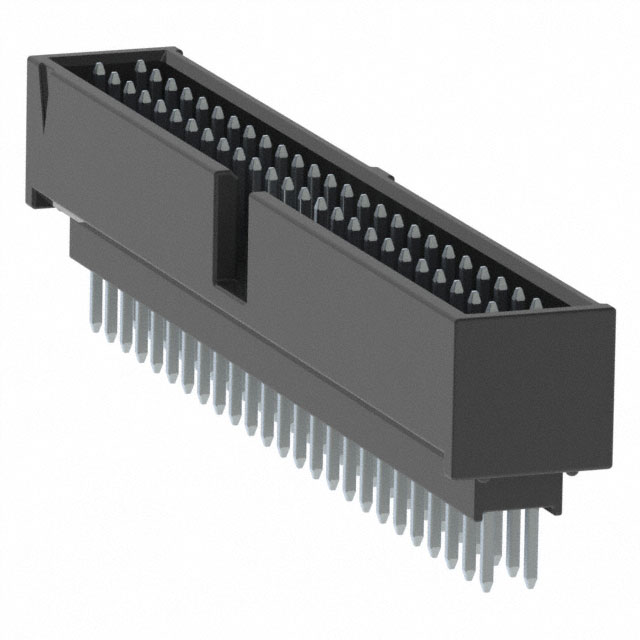

Samtec Inc. ZSS-125-01-T-D-465
Samtec Inc. ZSS-125-07-L-D-1100
