M2022ES Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Actuator Material	Electrical Life	Circuit	Mounting Type	Termination Style	Illumination	Current Rating (Amps)	Actuator Length [x]	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Features	Bushing Thread	Actuator Type	Voltage Rating - DC	Bushing Thread
NKK Switches M2022ES1W01/U	Brass Chrome Plated	25000 Steps	DPDT	Panel Mount	Solder Lug	Non-Illuminated	4 A 6 A	11.4 mm	On-On	85 °C	-30 ░C	6.5 mm	125 V	Epoxy Sealed Terminals	1/4-40	Flatted	30 V
NKK Switches M2022ES1A01	Brass Chrome Plated	25000 Steps	DPDT	Panel Mount	Solder Lug	Non-Illuminated	4 A 6 A	11.4 mm	On-On	85 °C	-30 ░C	6.5 mm	125 V	Epoxy Sealed Terminals	1/4-40	Flatted	30 V
NKK Switches M2022ES1W03	Brass Chrome Plated	25000 Steps	DPDT	Panel Mount	PC Pin	Non-Illuminated	4 A 6 A	11.4 mm	On-On	85 °C	-30 ░C	6.5 mm	125 V	Epoxy Sealed Terminals	1/4-40	Flatted	30 V
NKK Switches M2022ES1W01	Brass Chrome Plated	25000 Steps	DPDT	Panel Mount	Solder Lug	Non-Illuminated	4 A 6 A	11.4 mm	On-On	85 °C	-30 ░C	6.5 mm	125 V	Epoxy Sealed Terminals	1/4-40	Flatted	30 V
NKK Switches M2022ES1G40	Brass Chrome Plated	50000 Cycles	DPDT	Panel Mount Right Angle Vertical	PC Pin	Non-Illuminated	0.4 VA	11.4 mm	On-On	85 °C	-30 ░C	6.5 mm	28 V	Epoxy Sealed Terminals	1/4-40	Flatted	28 V

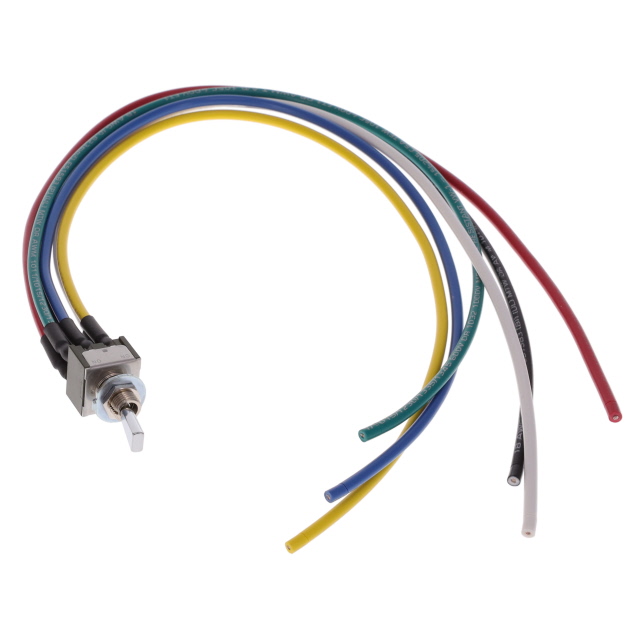

NKK Switches M2022ES1W01/U-WL	Brass Chrome Plated	25000 Steps	DPDT	Panel Mount	Wire Leads	Non-Illuminated	4 A 6 A	11.4 mm	On-On	85 °C	-30 ░C	6.5 mm	125 V		1/4-40	Flatted	30 V
NKK Switches M2022ES1G01	Brass Chrome Plated	50000 Cycles	DPDT	Panel Mount	Solder Lug	Non-Illuminated	0.4 VA	11.4 mm	On-On	85 °C	-30 ░C	6.5 mm	28 V	Epoxy Sealed Terminals	1/4-40	Flatted	28 V
NKK Switches M2022ES4W01	Brass Chrome Plated	25000 Steps	DPDT	Panel Mount	Solder Lug	Non-Illuminated	4 A 6 A	11.4 mm	On-On	85 °C	-30 ░C	6.5 mm	125 V	Epoxy Sealed Terminals	M6	Flatted	30 V	0.75
NKK Switches M2022ES2W40	Brass Chrome Plated	25000 Steps	DPDT	Right Angle Through Hole Vertical	PC Pin	Non-Illuminated	4 A 6 A	11.4 mm	On-On	85 °C	-30 ░C	6.5 mm	125 V	Epoxy Sealed Terminals	Unthreaded	Flatted	30 V
NKK Switches M2022ES1G06	Brass Chrome Plated	50000 Cycles	DPDT	Panel Mount	Wire Wrap	Non-Illuminated	0.4 VA	11.4 mm	On-On	85 °C	-30 ░C	6.5 mm	28 V	Epoxy Sealed Terminals	1/4-40	Flatted	28 V
