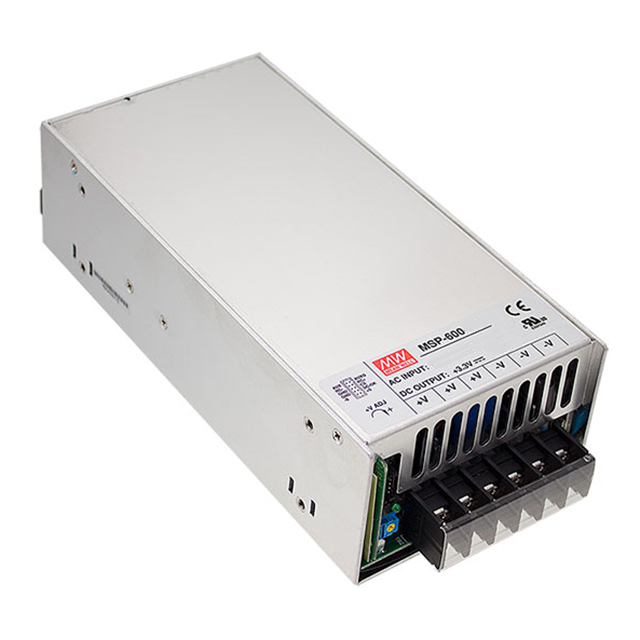

MSP-600 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 648W
| Part | Minimum Load Required | Mounting Type | Features | Power (Watts) | Efficiency | Voltage - Isolation | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Number of Outputs | Current - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Applications | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 648 W | 88 % | 4000 V | 24 V | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | 27 A | 63.5 mm | 4.13 in | 2.5 in | 8.58 in | 218 mm | 105 mm | Medical | Enclosed | |
MEAN WELL USA Inc. | Chassis Mount | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 600 W | 88 % | 4000 V | 7.5 V | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | 63.5 mm | 4.13 in | 2.5 in | 8.58 in | 218 mm | 105 mm | Medical | Enclosed |
