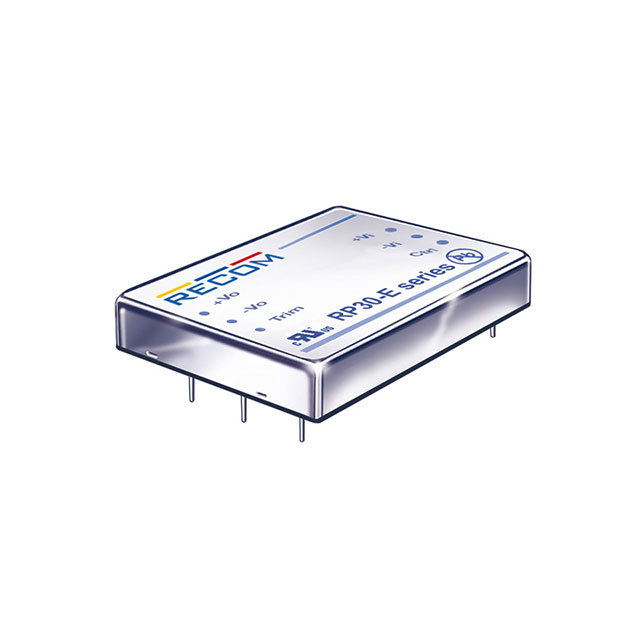

RP30-E Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W DC/DC 1.6KV REG 2:1 9-18IN +/-12OUT

Part	Current - Output (Max)	Efficiency	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Voltage - Isolation	Number of Outputs	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Package / Case	Applications	Mounting Type	Control Features	Voltage - Output 1	Current - Output (Max) [Max]
Recom Power RP30-1212DE	1.25 A	87 %	30 Watts	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	2	-12 V	85 °C	-40 C	9 V	18 V	Isolated Module	8-DIP Module 7 Leads	ITE (Commercial)	Through Hole	Active High Enable	12 V
Recom Power RP30-2415SE		89 %	30 Watts	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	1		85 °C	-40 C	18 V	36 V	Isolated Module	8-DIP Module 7 Leads	ITE (Commercial)	Through Hole	Active High Enable	15 V	2 A

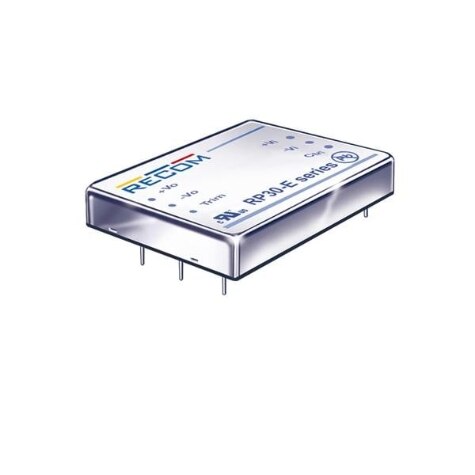

Recom Power RP30-2405SE		88 %	30 Watts	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	1		85 °C	-40 C	18 V	36 V	Isolated Module	8-DIP Module 7 Leads	ITE (Commercial)	Through Hole	Active High Enable	5 V	6 A
Recom Power RP30-4812DE	1.25 A	88 %	30 Watts	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	2	-12 V	85 °C	-40 C	36 V	75 V	Isolated Module	8-DIP Module 7 Leads	ITE (Commercial)	Through Hole	Active High Enable	12 V
Recom Power RP30-123.3SE-HC		85 %	30 Watts	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	1		85 °C	-40 C	9 V	18 V	Isolated Module	8-DIP Module 7 Leads	ITE (Commercial)	Through Hole	Active High Enable	3.3 V	6 A
Recom Power RP30-1215SE-HC		88 %	30 Watts	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	1		85 °C	-40 C	9 V	18 V	Isolated Module	8-DIP Module 7 Leads	ITE (Commercial)	Through Hole	Active High Enable	15 V	2 A
Recom Power RP30-483.3SE-HC		87 %	30 Watts	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	1		85 °C	-40 C	36 V	75 V	Isolated Module	8-DIP Module 7 Leads	ITE (Commercial)	Through Hole	Active High Enable	3.3 V	6 A
Recom Power RP30-2412DE-HC	1.25 A	88 %	30 Watts	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	2	-12 V	85 °C	-40 C	18 V	36 V	Isolated Module	8-DIP Module 7 Leads	ITE (Commercial)	Through Hole	Active High Enable	12 V
Recom Power RP30-4805SE-HC		89 %	30 Watts	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	1		85 °C	-40 C	36 V	75 V	Isolated Module	8-DIP Module 7 Leads	ITE (Commercial)	Through Hole	Active High Enable	5 V	6 A
Recom Power RP30-1215DE-HC	1 A	87 %	30 Watts	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	2	-15 V	85 °C	-40 C	9 V	18 V	Isolated Module	8-DIP Module 7 Leads	ITE (Commercial)	Through Hole	Active High Enable	15 V
