SZL-VL Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

LIMIT SWITCHES ADJ. ROD SIDE ROT

Part	Overtravel [custom]	Switch Function	Differential Travel	Mounting Type	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Operating Force [Max]	Operating Force [Min]	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Voltage Rating - DC	Mechanical Life	Circuit	Ingress Protection	Release Force [Max]	Release Force [Min]	Operating Force	Electrical Life	Overtravel	Pretravel	Differential Travel	Overtravel [custom]	Features
Honeywell Sensing and Productivity Solutions SZL-VL-C	75 °	On-Mom	10 °	Chassis Mount	5 A 400 mA	Screw Terminal	250 V	800 gf	204 gf	Side Rotary Adjustable Rod	-20 ░C	60 °C	20 °	125 VDC	10000000 Cycles	SPDT (DB/DM)	IP64 - Dust Tight Water Resistant	50 gf	12 gf

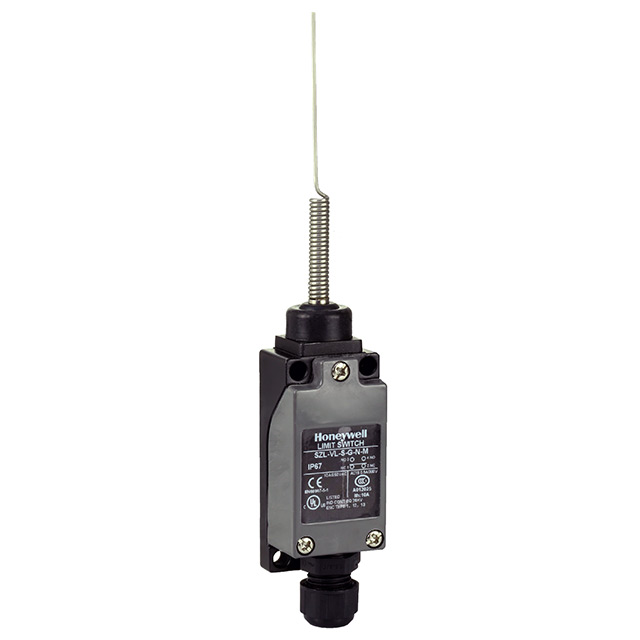

Honeywell Sensing and Productivity Solutions SZL-VL-S-G-N-M		On-Mom		Chassis Mount	50 mA 500 mA	Screw Terminal	380 V			Spring Wire	-20 ░C	70 °C	30 °		10000000 Cycles	SPDT (DB/DM)	IP67 - Dust Tight Waterproof			204 gf	500000 Cycles	20 °

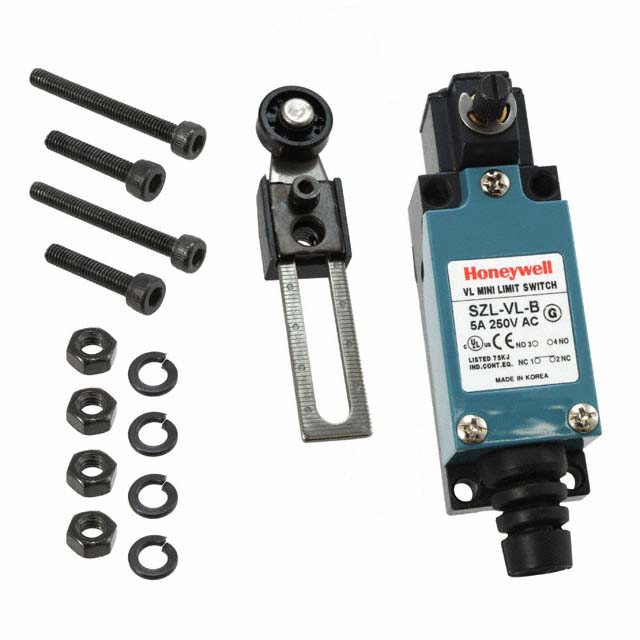

Honeywell Sensing and Productivity Solutions SZL-VL-B	75 °	On-Mom	10 °	Chassis Mount	5 A 400 mA	Screw Terminal	250 V	800 gf	342 gf	Side Rotary Adjustable Roller	-20 ░C	60 °C	20 °	125 VDC	10000000 Cycles	SPDT (DB/DM)	IP64 - Dust Tight Water Resistant	50 gf	21 gf

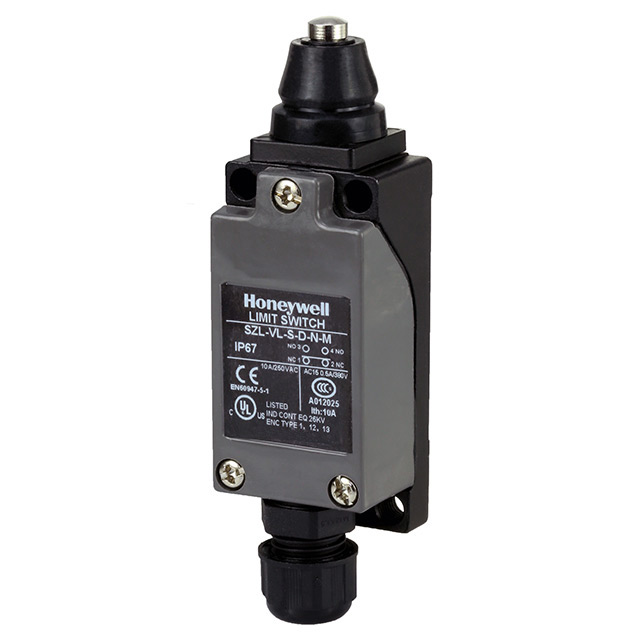

Honeywell Sensing and Productivity Solutions SZL-VL-S-D-N-M	0.138 "	On-Mom	0.06 in	Chassis Mount	50 mA 500 mA	Screw Terminal	380 V			Round (Pin Plunger)	-20 ░C	70 °C	0.08 in		10000000 Cycles	SPDT (DB/DM)	IP67 - Dust Tight Waterproof			918 gf	500000 Cycles		2 mm	1.5 mm	3.5 mm

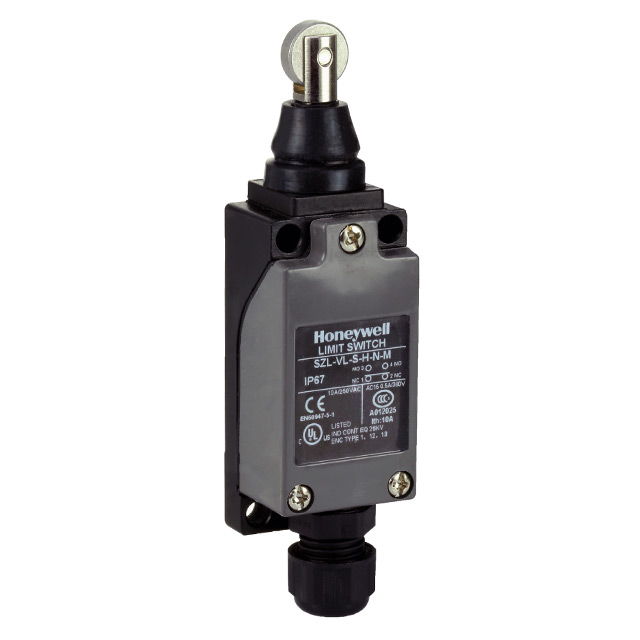

Honeywell Sensing and Productivity Solutions SZL-VL-S-H-N-M	0.138 "	On-Mom	0.06 in	Chassis Mount	50 mA 500 mA	Screw Terminal	380 V			Roller Plunger	-20 ░C	70 °C	0.08 in		10000000 Cycles	SPDT (DB/DM)	IP67 - Dust Tight Waterproof			918 gf	500000 Cycles		2 mm	1.5 mm	3.5 mm
Honeywell Sensing and Productivity Solutions SZL-VL-I		On-Mom		Chassis Mount	5 A 400 mA	Screw Terminal	250 V			Roller Side Rotary	-20 ░C	60 °C		125 VDC	10000000 Cycles	SPDT (DB/DM)	IP64 - Dust Tight Water Resistant

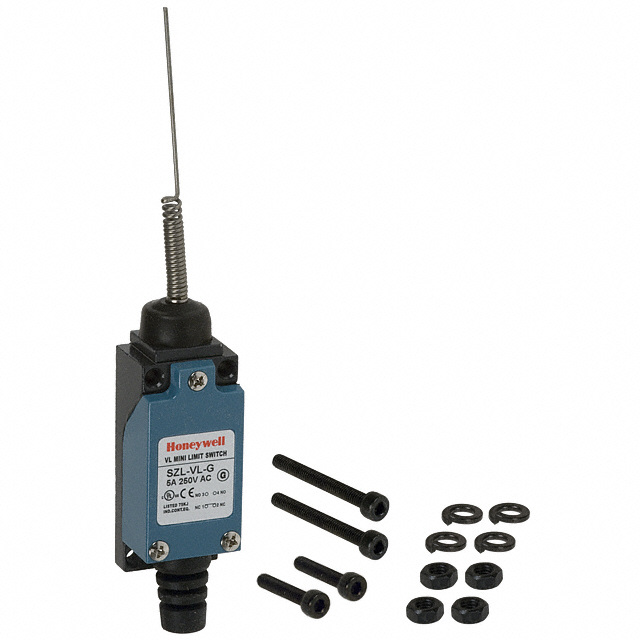

Honeywell Sensing and Productivity Solutions SZL-VL-G	0.788 "	On-Mom		Chassis Mount	5 A 400 mA	Screw Terminal	250 V			Spring Wire	-20 ░C	60 °C	1.18 in	125 VDC	10000000 Cycles	SPDT (DB/DM)	IP64 - Dust Tight Water Resistant			90 gf			30 mm		20 mm

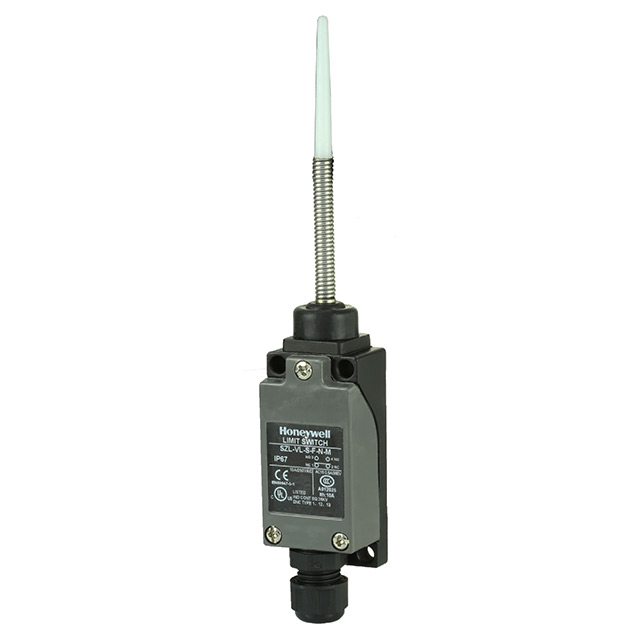

Honeywell Sensing and Productivity Solutions SZL-VL-S-F-N-M		On-Mom		Chassis Mount	50 mA 500 mA	Screw Terminal	380 V			Rod Spring	-20 ░C	70 °C	30 °		10000000 Cycles	SPDT (DB/DM)	IP67 - Dust Tight Waterproof			204 gf	500000 Cycles	20 °

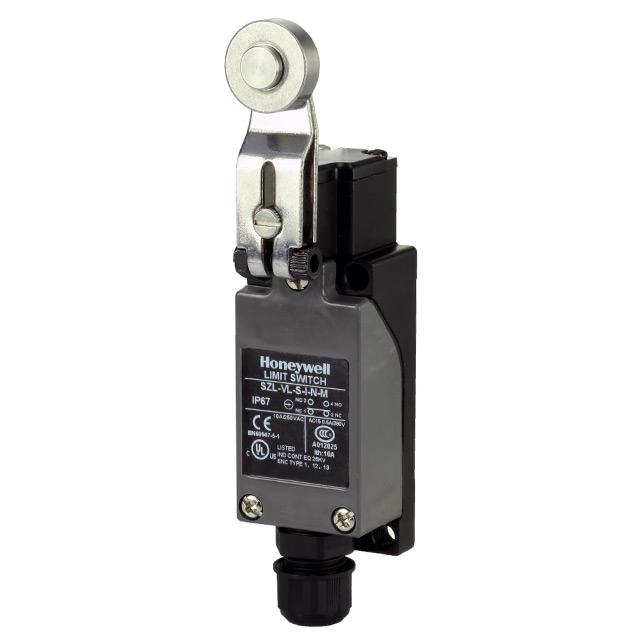

Honeywell Sensing and Productivity Solutions SZL-VL-S-I-N-M		On-Mom	15 °	Chassis Mount	50 mA 500 mA	Screw Terminal	380 V			Roller Side Rotary	-20 ░C	70 °C	25 °		10000000 Cycles	SPDT (DB/DM)	IP67 - Dust Tight Waterproof			18 gfm	500000 Cycles	70 °				Steel Roller

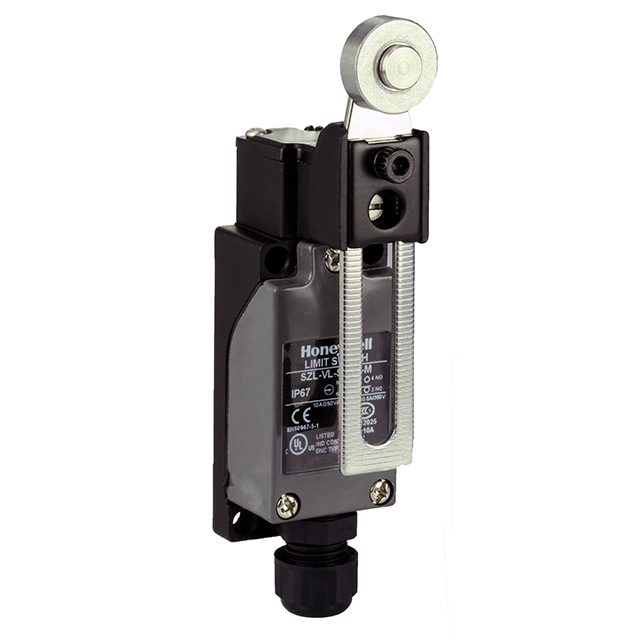

Honeywell Sensing and Productivity Solutions SZL-VL-S-J-N-M		On-Mom	15 °	Chassis Mount	50 mA 500 mA	Screw Terminal	380 V			Side Rotary Adjustable Roller	-20 ░C	70 °C	25 °		10000000 Cycles	SPDT (DB/DM)	IP67 - Dust Tight Waterproof			18 gfm	500000 Cycles	70 °				Steel Roller
