831-87 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN SOCKET 12POS 0.079 GOLD SMD
| Part | Contact Material | Contact Shape | Contact Finish - Mating | Mounting Type | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded | Contact Finish - Post | Contact Type | Pitch - Mating | Pitch - Mating | Termination | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Material Flammability Rating | Current Rating (Amps) | Number of Positions | Contact Finish Thickness - Mating | Number of Rows | Connector Type | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Beryllium Copper | Circular | Gold | Surface Mount | 0.228 " | 5.8 mm | All | Tin | Female Socket | 0.079 " | 2 mm | Solder | Black | -55 C | 125 °C | Push-Pull | UL94 V-0 | 3 A | 12 | Flash | 1 | Socket | ||||||

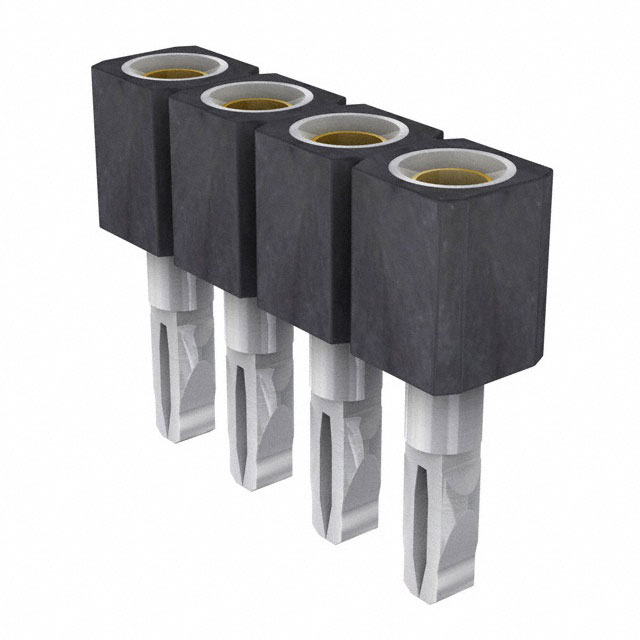

 Preci-Dip | Beryllium Copper | Circular | Gold | Through Hole | All | Tin | Female Socket | 0.079 " | 2 mm | Press-Fit Solder | Black | -55 C | 125 °C | Push-Pull | UL94 V-0 | 3 A | 4 | Flash | 1 | Socket | 2.5 mm | 0.098 in | 0.165 in | 4.2 mm | ||||

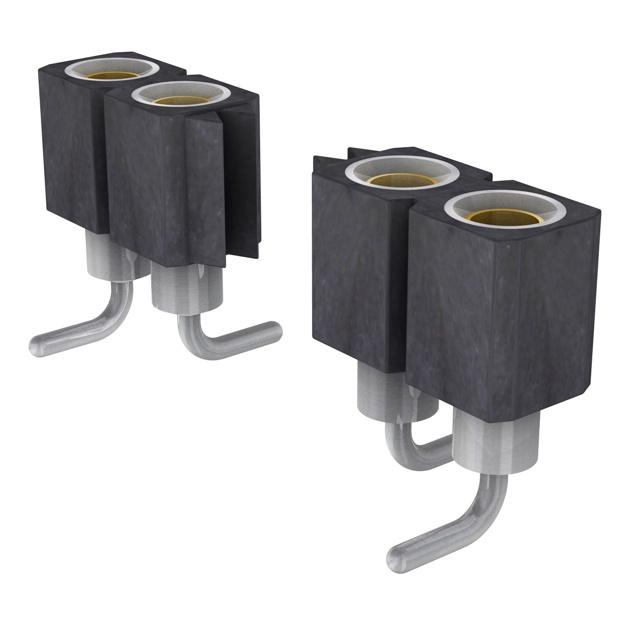

 Preci-Dip | Beryllium Copper | Circular | Gold | Right Angle Surface Mount | All | Tin | Female Socket | 0.079 " | 2 mm | Solder | Black | -55 C | 125 °C | Push-Pull | UL94 V-0 | 3 A | 27 | Flash | 1 | Socket | 0.087 " | 2.2 mm | ||||||
 Preci-Dip | Beryllium Copper | Circular | Gold | Through Hole | All | Tin | Female Socket | 0.079 " | 2 mm | Solder | Black | -55 C | 125 °C | Push-Pull | UL94 V-0 | 3 A | 27 | Flash | 1 | Socket | 0.122 in | 3.1 mm | ||||||

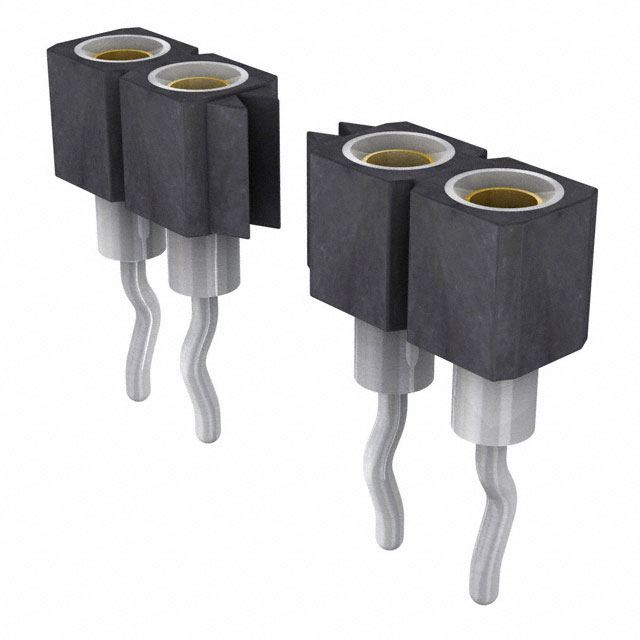

 Preci-Dip | Beryllium Copper | Circular | Gold | Through Hole | All | Tin | Female Socket | 0.079 " | 2 mm | Kinked Pin Solder | Black | -55 C | 125 °C | Push-Pull | UL94 V-0 | 3 A | 27 | Flash | 1 | Socket | 0.165 in | 4.2 mm | 0.122 in | 3.1 mm | ||||
Preci-Dip | Beryllium Copper | Circular | Gold | Through Hole | All | Tin | Female Socket | 0.079 " | 2 mm | Kinked Pin Solder | Black | -55 C | 125 °C | Push-Pull | UL94 V-0 | 3 A | 25 | Flash | 1 | Socket | 0.165 in | 4.2 mm | 0.122 in | 3.1 mm | ||||
Preci-Dip | Beryllium Copper | Circular | Gold | Right Angle Surface Mount | All | Tin | Female Socket | 0.079 " | 2 mm | Solder | Black | -55 C | 125 °C | Push-Pull | UL94 V-0 | 3 A | 44 | Flash | 1 | Socket | 0.087 " | 2.2 mm | ||||||
Preci-Dip | Beryllium Copper | Circular | Gold | Right Angle Surface Mount | All | Tin | Female Socket | 0.079 " | 2 mm | Solder | Black | -55 C | 125 °C | Push-Pull | UL94 V-0 | 3 A | 13 | Flash | 1 | Socket | 0.087 " | 2.2 mm | ||||||

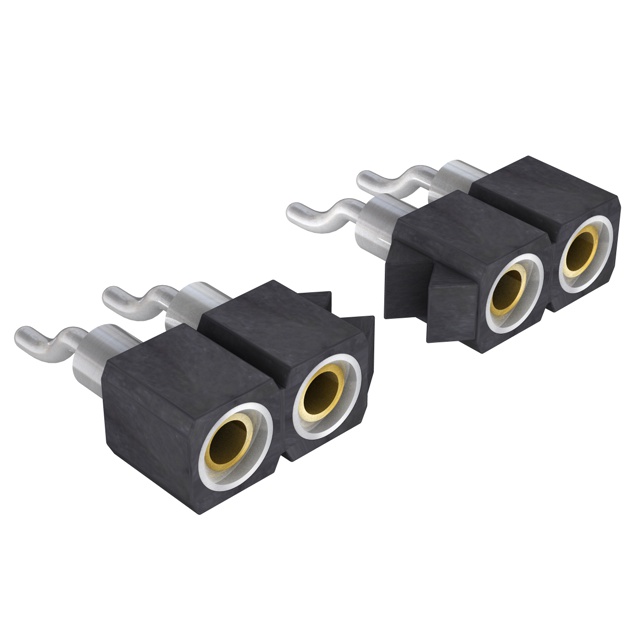

 Preci-Dip | Beryllium Copper | Circular | Gold | Right Angle Through Hole | All | Tin | Female Socket | 0.079 " | 2 mm | Solder | Black | -55 C | 125 °C | Push-Pull | UL94 V-0 | 3 A | 50 | Flash | 1 | Socket | 0.087 " | 2.2 mm | 0.126 " | 3.2 mm | ||||

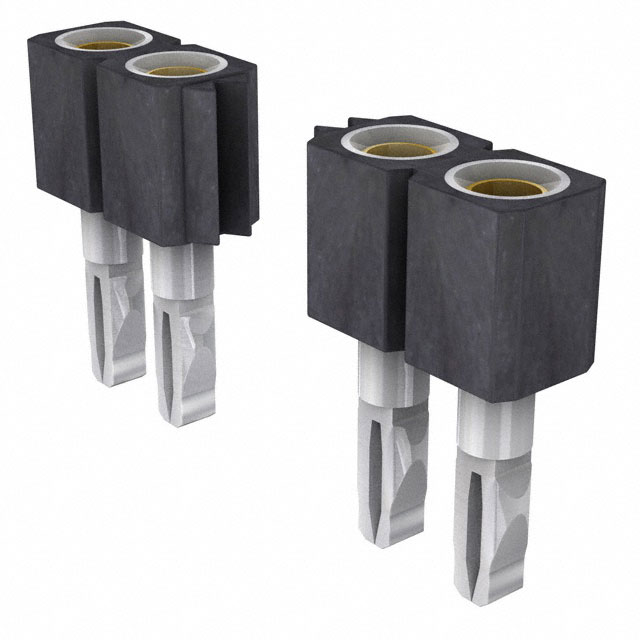

 Preci-Dip | Beryllium Copper | Circular | Gold | Through Hole | All | Tin | Female Socket | 0.079 " | 2 mm | Press-Fit Solder | Black | -55 C | 125 °C | Push-Pull | UL94 V-0 | 3 A | 8 | Flash | 1 | Socket | 2.5 mm | 0.098 in | 0.165 in | 4.2 mm |
